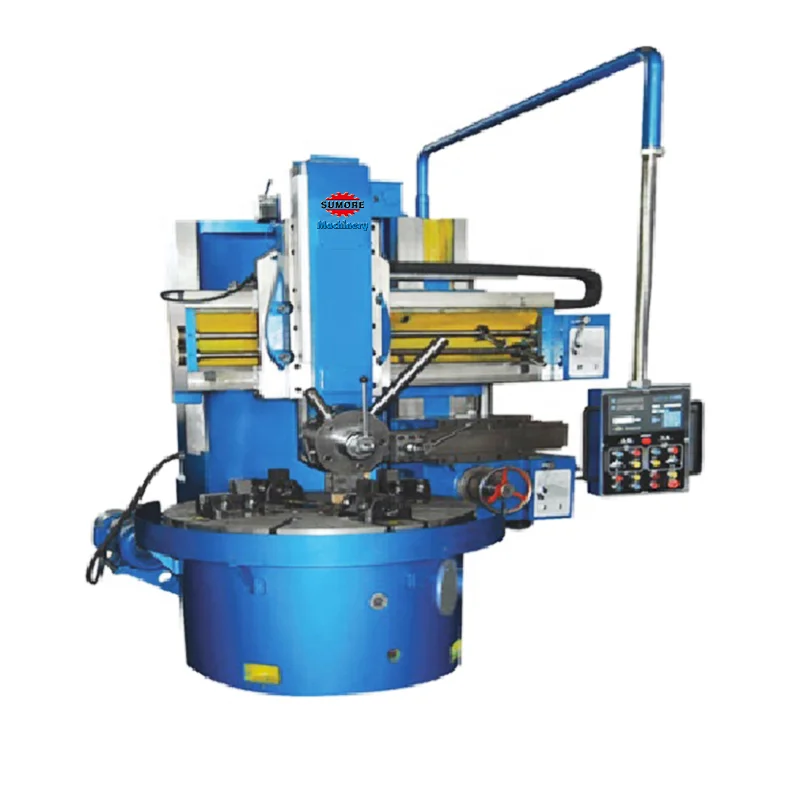

SP5112 Vertical Lathe

SP5112 type single column vertical lathe, configuration of advanced and reliable mechanical and electrical components, structure performance is outstanding, strong rigidity, machine tool can meet the strong cutting, worktable can carry large tonnage load, good stability, high efficiency, safe and reliable.

Specification

Specification	SP5112
Table dia.	1000mm
Max. turning dia.	1250mm
Max. workpiece height	1000/1200/1400mm
Max. workpiece weight	3.2t
Table speed range	6.3-200 r/min
Table rotation speed step	16
Vertical toolpost feed range	0.8-86 r/min
Vertical side toolpost feed step	12
Horizontal travel of vertical toolpost	700mm
Vertical travel of vertical toolpost	650mm
Horizontal travel of side toolpost	500mm
Vertical travel of side toolpost	900mm
Crossam ram travel	650/850/1050mm
Tool bar section size(Lx W)	30x40mm
Main motor power	22kw
Feeding motor power	1.3/1.8kw
N.W	9.5t
Overall size(LXWXH)	2277x2540x3403mm
