Model |
HMC500 |

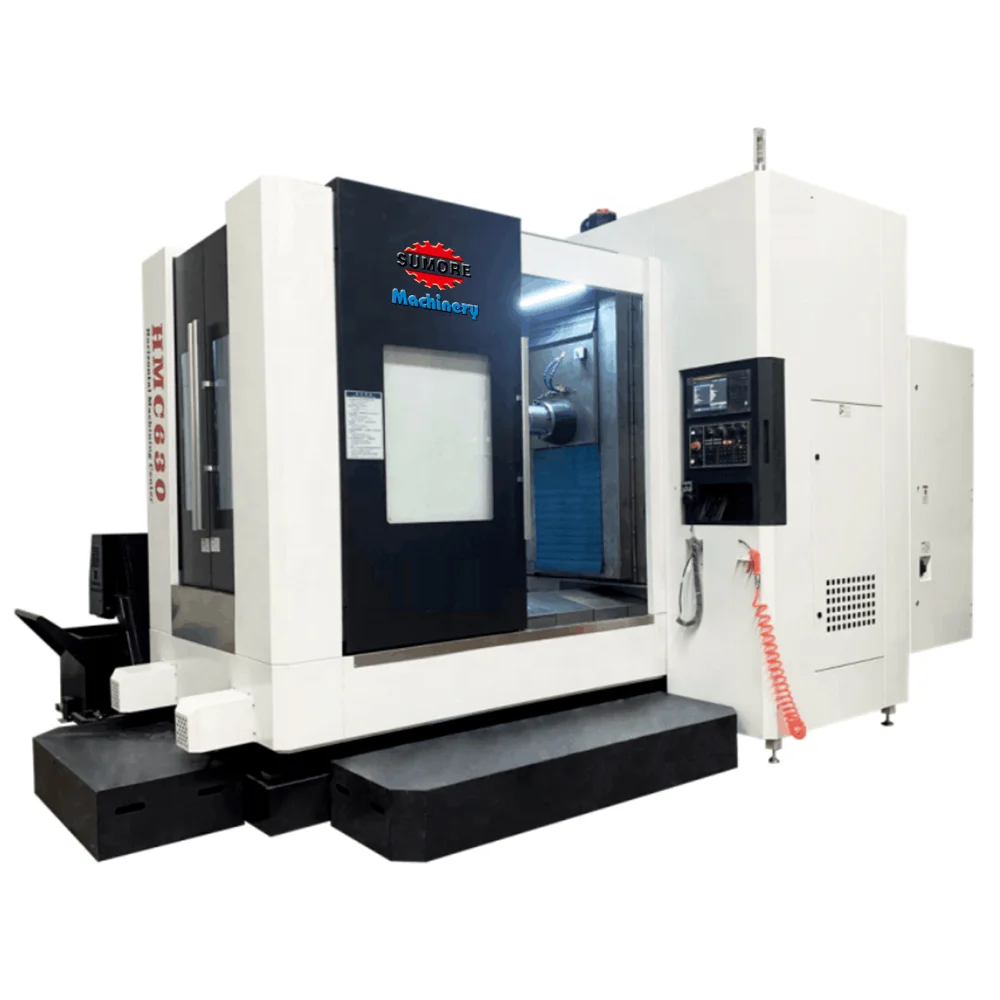

HMC630 |
HMC800 |
HMC1000 |
|
X-axis travel |
800mm |
1100mm |
1600mm |
2200mm |
|
Y-axis travel |
800mm |
800mm |
1000mm |
1400mm |
|
Z-axis travel |
800mm |
1100mm |
1100mm |
1200mm |
|
Table size |
500*500mm |
630*630mm |
800*800mm |
1000*1000mm |
|
Work table indexing |
1°*360 |
1°*360 |
1°*360 |
1°*360 |
|
T slot size |
5-18-100mm |
5-18-100mm |
6-22-125mm |
125×22×6mm |
|
Max. Loading of work table |
800kg |
1500kg |
2500kg |
6000kg |
|
Spinlde center to table |
50-850mm |
50-850mm |
0-1000mm |
350-1550mm |
|
Spindle nose to table surface |
125-925 |
125-1225 |
180-1180 |
100-1300mm |
|
Spindle taper |
BT-40 |
BT-50 |
BT-50 |
BT-50 |
|
Spindle range |
8000rpm |
6000rpm |
6000rpm |
6000rpm |
|
Spindle power |
11/15KW |
15/18.5KW |
15/18.5KW |
15/18.5KW |
|
Cutting speed |
1-8000mm/min |
1-8000mm/min |
1-8000mm/min |
1-8000 mm/min |
|
X/Y/Z fast speed |
24/24/24 m/min |
24/24/24 m/min |
24/24/24 m/min |
24/24/24m/min |
|
X/Y/Z posion accuracy |
+0.008 |
+0.008 |
+0.008 |
0.015 |
|
Repeatability |
+0.005 |
+0.005 |
+0.005 |
0.008 |
|
Positioning accuracy of B axis |
+10” |
+10” |
+10” |
+10” |
|
ATC |
24 pcs(optional 30pcs/40pcs 60pcs) |
24 pcs(optional 30pcs/40pcs 60pcs) |
24 pcs(optional 30pcs/40pcs 60pcs) |
24 pcs(optional 30pcs/40pcs 60pcs) |
|
Tool change time |
2.7S |
5S |
5S |
5S |
|
Max. Tool weight |
8kg |
18kg |
18kg |
18kg |
|
Max. Dimeter of tool |
75/125mm |
112/200mm |
125/230 |
φ80/φ150mm |
|
Max. Lenght of tool |
300mm |
300mm |
300mm |
400mm |
|
Maching weight |
9500kg |
12000kg |
15000kg |
20000Kg |
|
Machine dimention |
3800*3200*3280mm |
4860*3600*3460mm |
6200*4800*3800mm |
6800×5200×3800mm |
