Model |

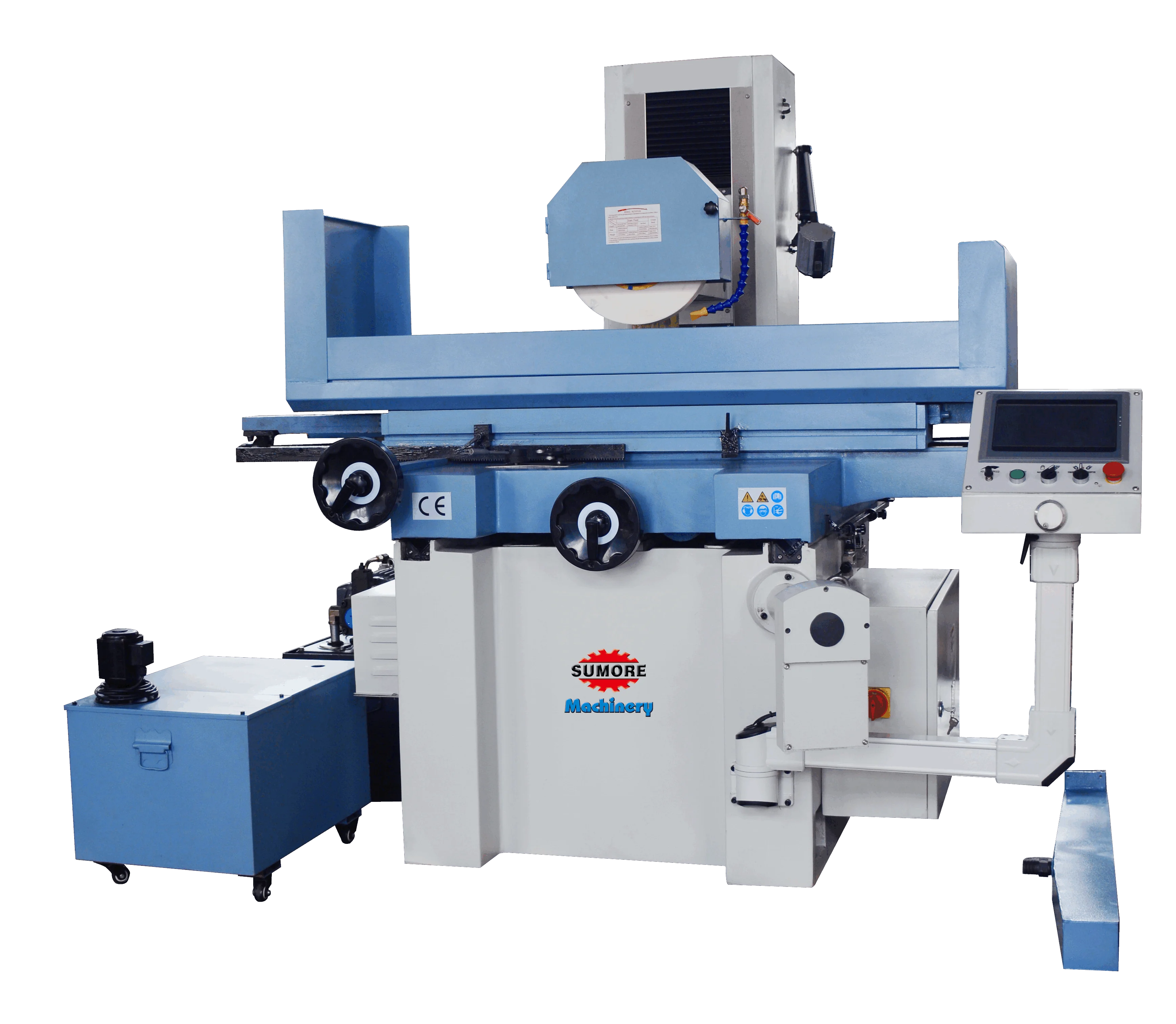

SP2514/SGA high precision |
|
Table size |
406x800mm |
|
Longitudinal/cross/vertical travel |
830/440/540mm |
|
Magnetic chuck size |
400X800mm |
|
Table longitudinal move speed |
7-23m/min |
|
Table cross move auto feed |
0.1-8mm/min |
|
Table cross move rapid feed |
990mm/min |
|
Table cross move hand wheel feed |
0.02mm/div |
|
Grinding head vertical move auto feed |
(H/R mode) 0.005/0.01/0.02/0.03/0.04/0.05(onlly for D model) |
|
Grinding head vertical move rapid feed |
(H model) 610(only for R model) 480(only for D model) |
|
Grinding head vertical move hand wheel feed |
0.005mm/div. |
|
Grinding wheel speed |
50HZ 1440 60HZ 1750 |
|
Grinding wheel size(ODxWxlD) |
350x40x127mm |
|
Spindle motor |
5.5kw |
|
Hydraulic motor |
2.2kw |
|
Cooling motor |
0.09kw |
|
Max. Loading capacity of table(include magnetic chuck) |
500kg |
|
Cross feed motor |
0.04kw |
|
Total rated motor |
9kw |
|
Crossweight |
3600kg |
|
Packing size |
2720X2265X2250mm |
