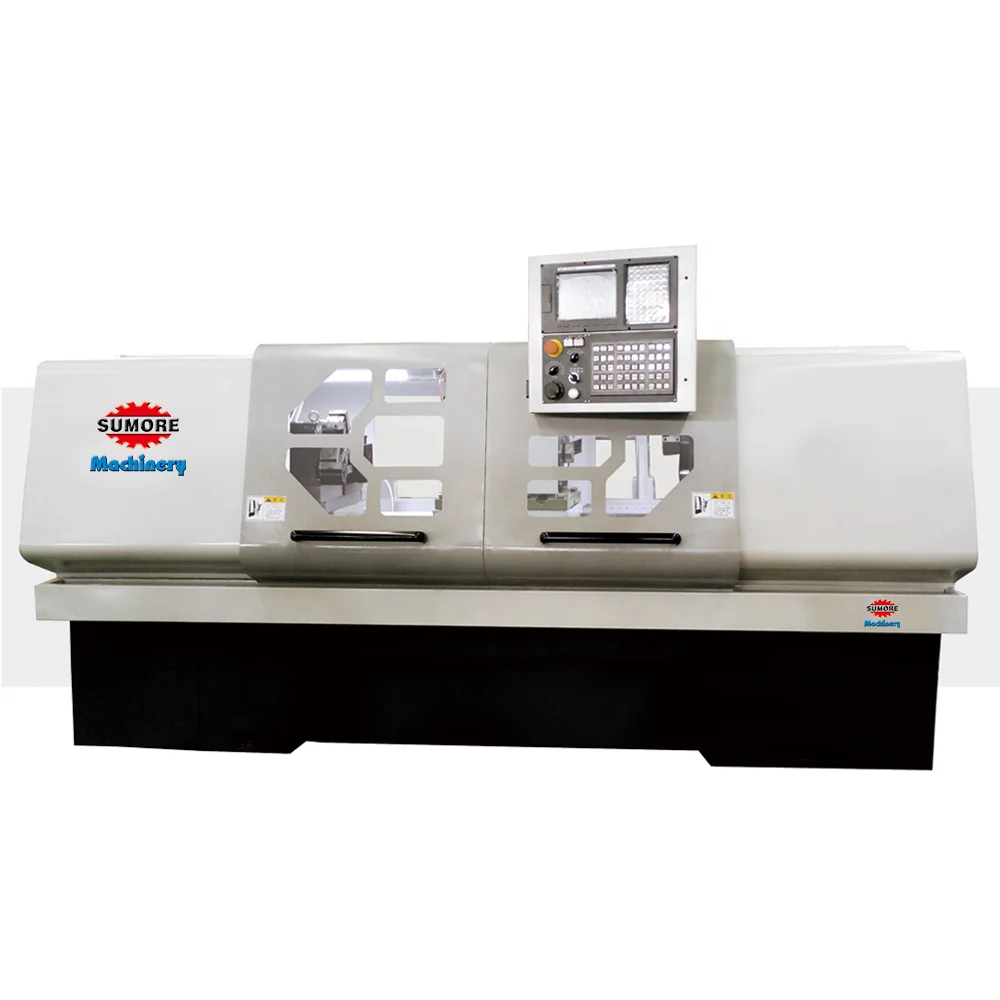

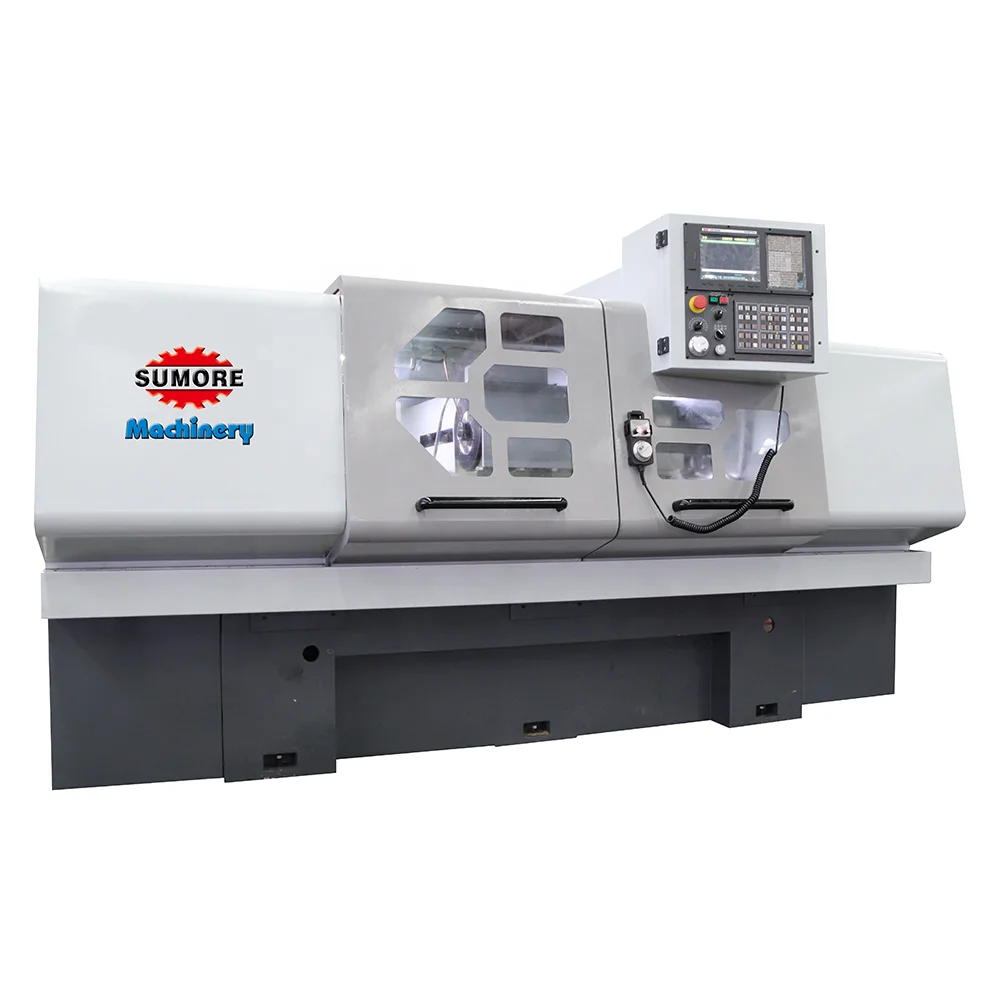

DTC100 CNC Horizontal Lathe Machine

Our CNC lathe equipment can process both ends of pipes and shafts at the same time, and can also automatically load and unload materials, realizing the possibility of one person operating multiple machines , save your manpower and time cost.

MAIN FEATURES:

* One machine is equal to two, save space and reduce operator. * Clamping the workpiece once, complete the processing of both ends * The processing procedure and the action for the two ends may be the same or may be diferent.

* Improve the processing efficiency and accuracy.

Specification

SPECIFICATIONS	Unit	STC	直线导轨双头车 LINEAR GUIDE WITH TWOHEADS
Maximum swing diameter over bed	mm	460	480
Maximum swing diameter over table	mm	260	260
Guide form		双山硬轨 Hard rail	滚柱直线导轨 Roller linear guide
Spindle speed range	r/min	100-2000	100-2000
Maximum workpiece length	mm	1300	1450
Maximum X-axis stroke	mm	300	320
Maximum Z-axis stroke	mm	400	550
Rapid feed of X/Z axis	m/min	6/8	15/20
X/Z axis repeated positioning accuracy	mm	0.008/0.009	0.006/0.006
X/Z axis positioning accuracy	mm	0.02/0.025	0.008/0.009
Net weight/Gross weight	kg	2600/3200	3500/4000
Overall dimensions	mm	3200x2100x1850	3200x1700x1800
