Table specifications (length × width):1200×600mm
The maximum load of the workbench:800kg
tool weight：8Kg
Distance from the end face of the spindle to the plane on the table：120mm-720mm
|

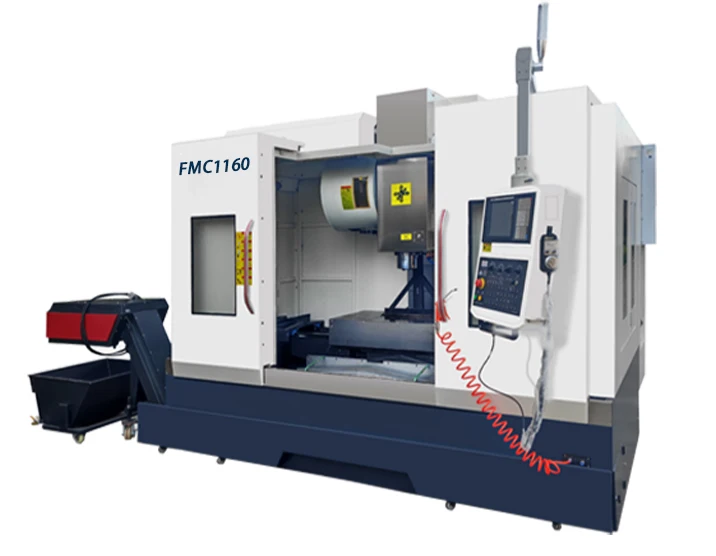

Model |
FMC1160 5-axis |
|
Table specifications (length × width) |
1200×600mm |
|
The maximum load of the workbench |
800kg |
|
X/Y/Z coordinate stroke |
1100/600/600mm |
|
Distance from the center line of the spindle to the front of the column |
672mm |
|
Distance from the end face of the spindle to the plane on the table |
120-720mm |
|
X, Y, Z cutting speed |
0～10000mm/min |
|
X, Y, Z rapid feed speed |
36/36/36mm/min |
|
Maximum spindle speed |
Belt 8000/10000r/min Optional 12000 (direct connection) |
|
Spindle taper |
No.40 (7:24 ) |
|
Tool magazine capacity/type |
24 knife arms |
|
Shank/Pull Stud Type |
BT40-45° |
|
tool weight |
8kg |
|
tool diameter |
Arm type: φ78/φ125mm (adjacent empty) |
|
tool length |
300mm |
|
Tool change time (tool to tool) |
Knife arm style 2.5 seconds S |
|
Table T-slot (number of slots x slot width x slot pitch) |
5×18mm×100mm |
|
AC axis rotary table diameter |
210 |
|
A-axis tiltable angle; |
±110° |
|
C axis rotation angle |
360° |
|
A/C turntable maximum load weight |
40/20 (horizontal/vertical) |
|
T-slots (number-size-pitch) |
3-18-125 |
|
A/C self-locking mode |
pneumatic |
|
Positioning accuracy mm (national standard) |
X/Y/Z: 0.01/0.01/0.01 |
|
X/Y/Z direction motor |
3 |
|
FMC1160 5-axis standard configuration table |
|
|
24 robotic tool magazines |
Spindle taper hole blowing device |
|
Chain chip conveyor (optional) |
Rigid tapping |
|
Integral guard |
Work piece cooling system with ring spray |
|
automatic lubrication system |
RS-232 interface and DNC function |
|
Toolbox |
Portable chip blowing air gun |
|
working lamp |
Simple oil-water separator |
|
Warning Light |
Anchor bolts and pads |
|
Electrical box heat exchanger |
random technical data |
|
Spindle side blowing |
Five-axis cradle turntable-Taiwan Okada |
