SP5225A Drilling Press

Quick Details

Drilling capacity:25mm(1″)
Motor power:750/1100W
Spindle Travel:85mm
Table Size:290x290mm
height:1600mm

Descriptions

Products Description
Quick Detail: Drilling capacity: 25mm Motor power: 750/900W Class of Speed: 12 Spindle taper: MT3Description: SP5225A Mini machine drill press belongs to one of our most Mini machine drill press. It is new condition not used Mini machine drill press. And it is medium in size and delicate in design. This medium size machine drill press is made in China, but have the similar quality with German drill press. The main features are as below: 1. Adjustable depth stop 2. Quiet belt drive operation 3. FWD/REV toggle switch 4. Headstock runs in precision-bearings 5. Speeds allow selection of optimum speeds at the work piece 6. Cast iron plastic handle, easy to operate 7. Humanized design, electromagnetic switch is available. 8. High precision.

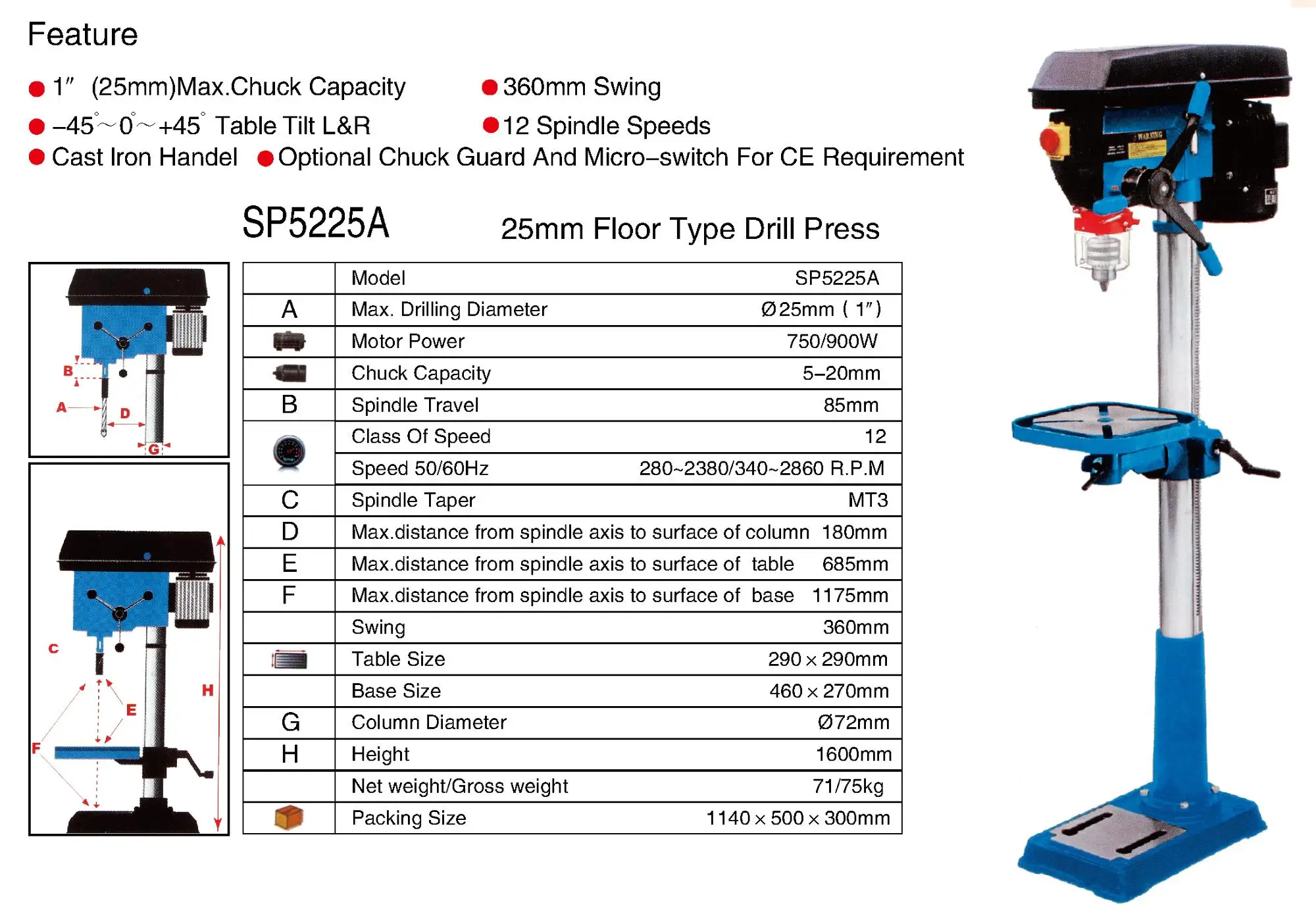

Specification
Model
SP5225A
Drilling capacity
Ø25mm(1″)
Motor power
750/900W
Chuck Capacity
5-20mm
Spindle stroke
85mm
Class Of Speed
12
Speed 50/60Hz
280~2380/340~2860 R.P.M
Spindle taper
MT3
Auto-feeding step of worktable
180mm
Max.distance from spindle end to surface of table
685mm
Max.distance from spindle end to surface of base
1175mm
Swing
360mm
Table size
290X290mm
Base Size
460X270mm
Column Diameter
Ø72mm
Height
1600mm
N.W./G.W.
71/75kg
Packing size
1140X500X300mm
