Drilling capacity：25mm(1″)
Motor power：1100W
Spindle Travel：120mm
Table Size：2350×350mm

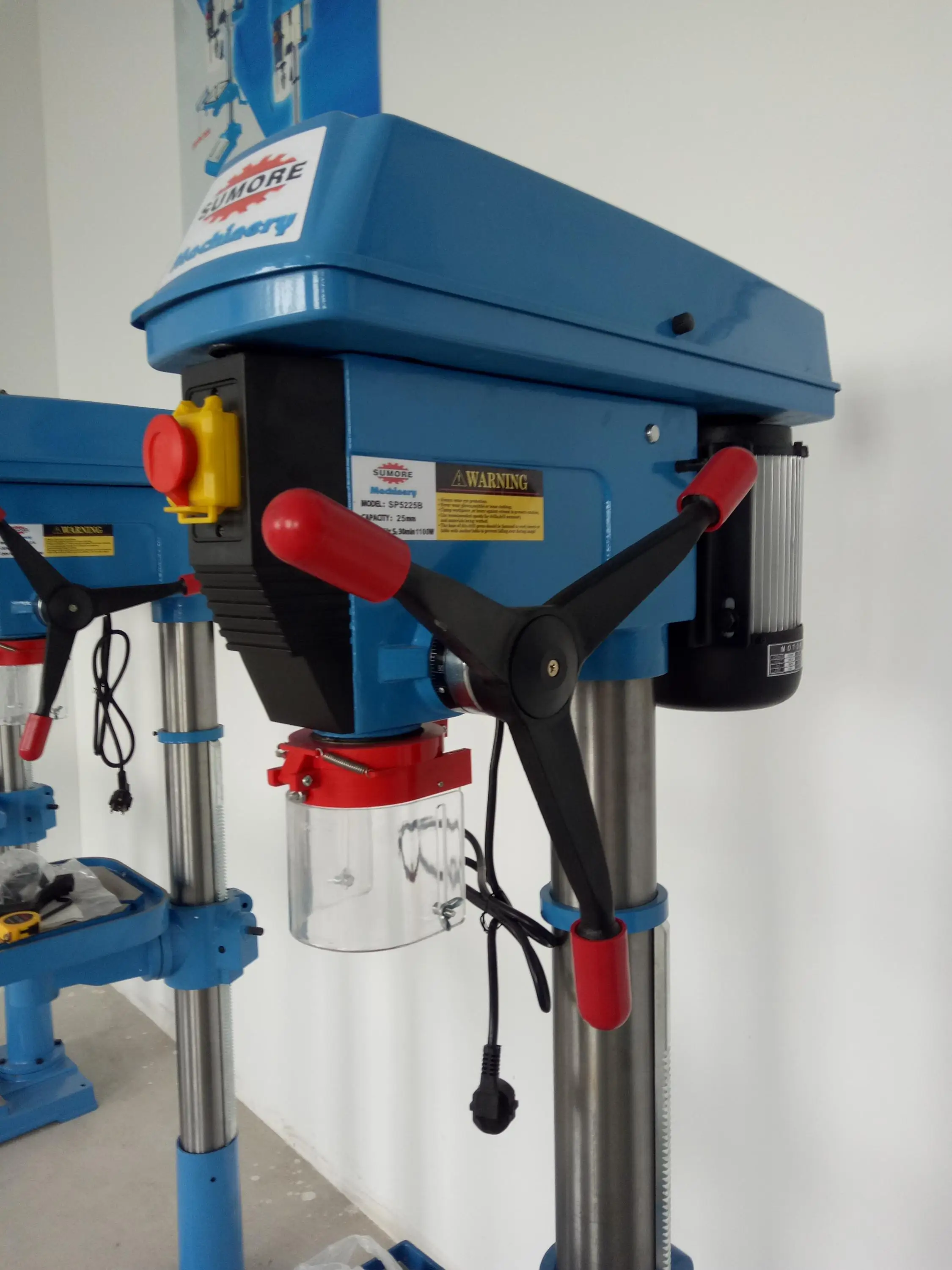

| Model | SP5225B |
| Drilling Capacity | 25 mm |
| Swing | 450 mm |
| Spindle Taper | MT3 |
| Spindle Travel | 120 mm |
| Spindle Speed Steps | 12 Steps |
| Spindle Spped | 150 – 2,450 / 180 – 2,940 rpm |
| Maximumn Distance from Spindle Axis to Surface of Column | 225 mm |
| Maximumn Distance from Spindle End to Surface of Worktable | 765 mm |
| Maximumn Distance from Spindle End to Surface of Base | 1,225 mm |
| Column Diameter | 92 mm |
| Height | 1,710 mm |
| Worktable Size | 350 x 350 mm |
| Base Size | 470 x 360 mm |
| Motor Power | 1,1000 / 1,500 w |
| Net / Gross Wieght | 106 / 110 kg |
| Packing Size | 1,415 x 650 x 305 mm |
