Main Motor Power: 11w
Worktable Size: 1200*600mm
Travel（X/Y/Z）: 1000*600*600mm
Positioning Accuracy: ±0.01mm
Repeated positioning accuracy: ±0.003mm/300mm
|

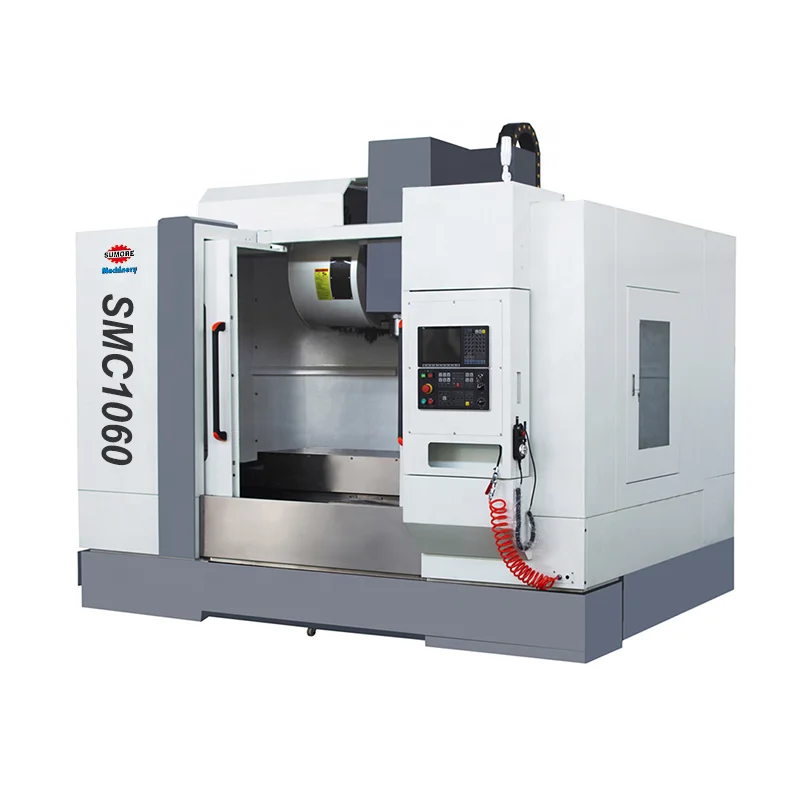

Model |
SMC1060 |
|
Table size |
1200x600mm |
|
X axis travel |
100mm |
|
Y axis travel |
600mm |
|
Z axis travel |
600mm |
|
spindle nose to table surface |
120-670mm |
|
spindle axis to column surface |
650mm |
|
T-slot |
5-18 |
|
Spindle taper |
BT40 |
|
Max. spindle speed |
8000rpm |
|
Main motor power |
11kw |
|
Max.table load |
800kgs |
|
Table size |
1200*600mm |
|
Automatic tools changer |
24 pcs tool arm type (optional:20 carousel) |
|
Max.tool weight |
8kgs |
|
Max. tool length |
200mm |
|
Max. tool diameter |
80mm /150mm |
|
X,Y axis rapid movement rate |
20000mm |
|
Z axis rapid movement rate |
18000mm |
|
Position accuracy |
±0.01mm |
|
Cutting feed rate |
1-10000mm/min |
|
Repeat positioning accuracy |
±0.003mm/300mm |
|
Air supply |
0.6MPa |
|
Machine dimension |
3350×2300×2550mm |
|
Machine weight |
5800kgs |
