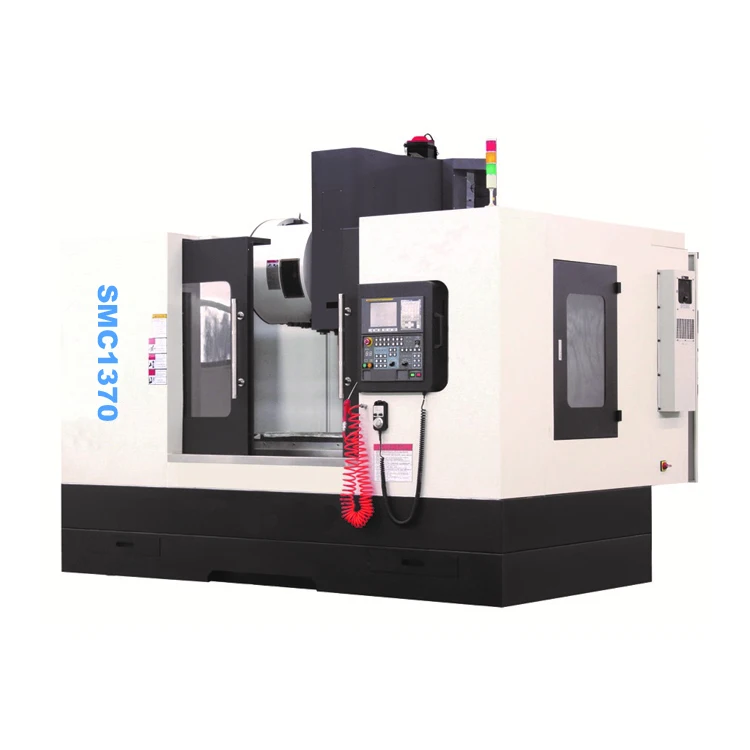

SMC1370 CNC Machining Center

SMC1370 is a multi-purpose machine which could mill surface & drill holes. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese.

Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.

With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipment’s for large automation production.

Model	SMC1370
Main Motor Power KW	11KW
Spindle Max. Rotating Speed	Servo Spindle 8000rpm
Z Motor Torque	22 N.m
X Motor Torque	22 N.m
Y Motor Torque	22 N.m
Spindle Taper	BT40
Worktable Size	1400X700mm
Travel(Longitudinal X/Horizontal Y/Vertical Z)	1300X700X700mm
Spindle nose to table surfacespindle nose to table surface	110-810mm
Spindle axis to column surface	750 mm
T-slot width:	18
Positioning Accuracy	0.008mm
Repeated Positioning Accuracy	0.003mm
Machine Overall Dimension (LWH) mm	380027502800
Machine Net Weight KG	2400
Magazine Capacity	24 (Bamboo Hat)
System Configuration	Siemens 828D
External Protection Level	Full Closed
