Main Motor Power: 7.5kw
Worktable Size: 1000*500mm
Travel（X/Y/Z）: 800*500*500mm
Repeated positioning accuracy: ±0.003mm/300mm
|
Model |

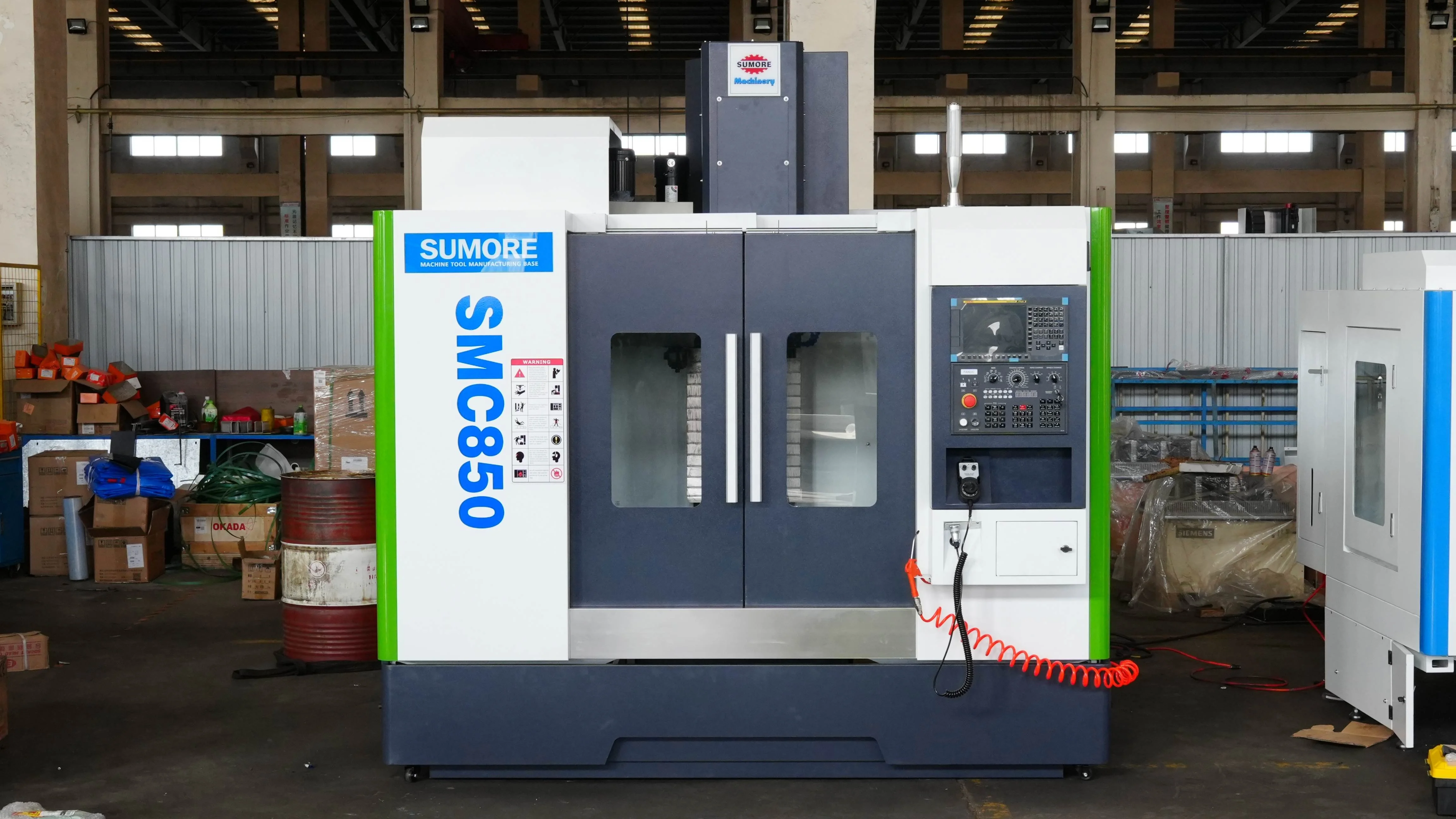

SMC850 |
|
Table size |
1000x500mm |
|
X axis travel |
800mm |
|
Y axis travel |
500mm |
|
Z axis travel |
500mm |
|
Distance between spindle center and column surface |
550mm |
|
Distance between spindle nose and table surface |
150-650mm |
|
T slot |
5-18*100mm |
|
Spindle taper |
BT40 |
|
Max. spindle speed |
8000rpm （optional 10000rpm） |
|
Main motor power |
7.5kw |
|
X/Y/Z axis servo motor torque |
15/15/22N.m |
|
X/Y/Z guide rail form |
3 axis linear guide rail |
|
Automatic tools changer |
24 pcs |
|
Max. tool diameter |
80mm /150mm |
|
X/Y/Z axis rapid traverse |
24/24/20 m/min |
|
Repeat positioning accuracy |
±0.003mm/300mm |
|
Machine dimension |
2750x2300x2300mm |
|
Machine weight |
5000kgs |
