Main Motor Power: 7.5kw/11w
Worktable Size: 1000*500mm
Travel（X/Y/Z）: 800*550*550mm
Positioning Accuracy: ±0.01mm
Repeated positioning accuracy: ±0.003mm/300mm
|
Model |

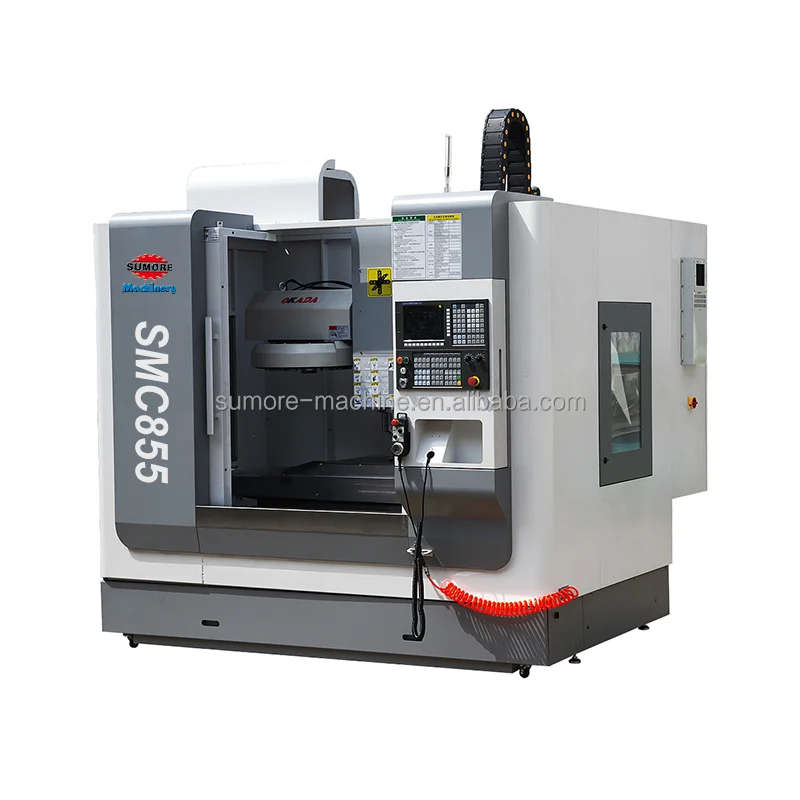

SMC855 |
|
Table size |
1000x550mm |
|
X axis travel |
850mm |
|
Y axis travel |
550mm |
|
Z axis travel |
550mm |
|
Distance between spindle center and column surface |
595mm |
|
Distance between spindle nose and table surface |
120-670mm |
|
T slot |
5-18*100mm |
|
Spindle taper |
BT40 |
|
Max. spindle speed |
8000rpm （optional 10000/20000rpm） |
|
Main motor power |
7.5/11kw |
|
Max. table load |
600kg |
|
Cutting feed speed |
10m/min |
|
Automatic tools changer |
24 pcs tool arm type ( optional: 20 carousel) |
|
Max. tool diameter |
80mm /150mm |
|
X/Y/Z axis rapid traverse |
24/24/20 m/min |
|
Position accuracy |
±0.01mm |
|
Repeat positioning accuracy |
±0.003mm/300mm |
|
Coolant |
200l; 120w; 50l/min |
|
Air supply |
0.6mpa |
|
Machine dimension |
2750x2300x2300mm |
|
Machine weight |
5300kgs |
