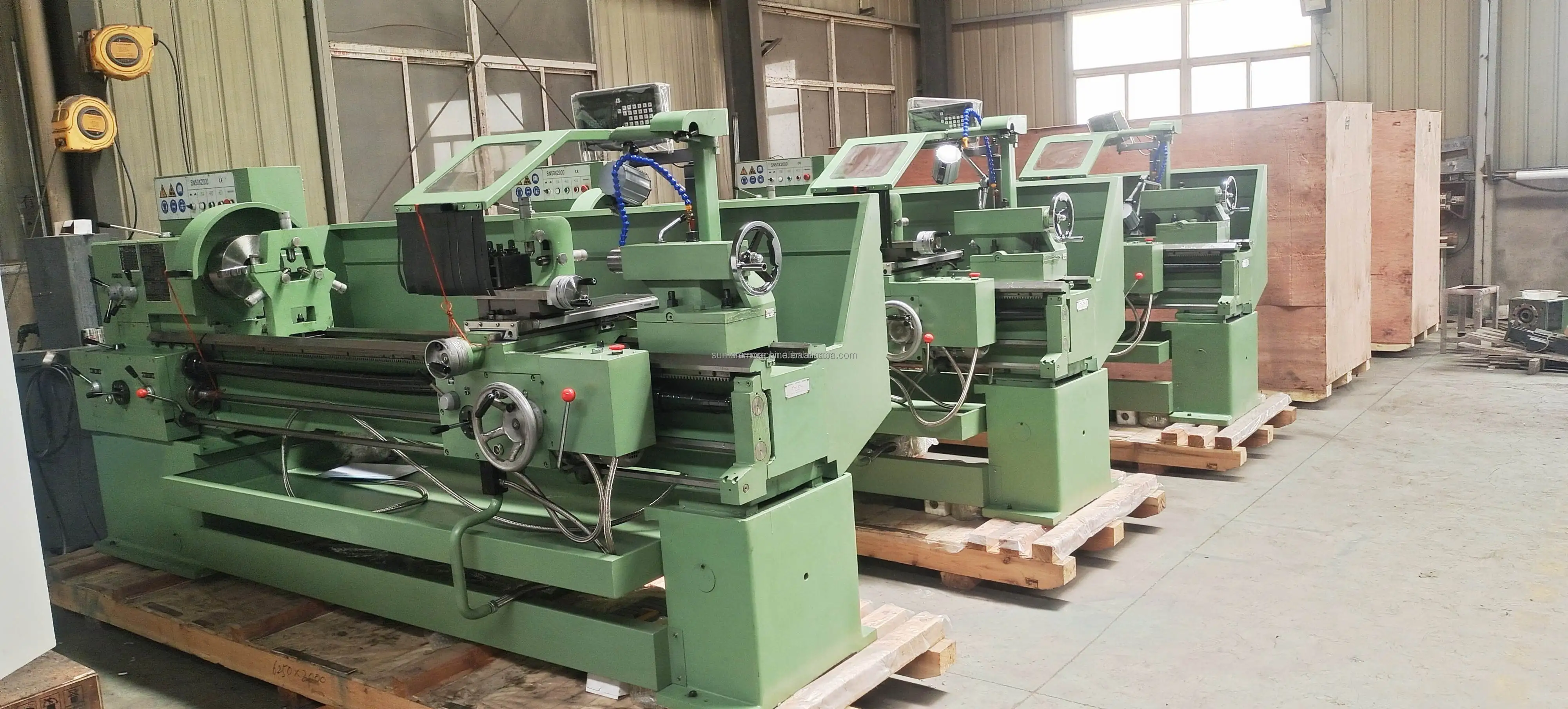

Swing Over Bed: 500mm
Center Distance: 1000/1500/2000mm
Motor Power: 5.5KW
|
Specification
|

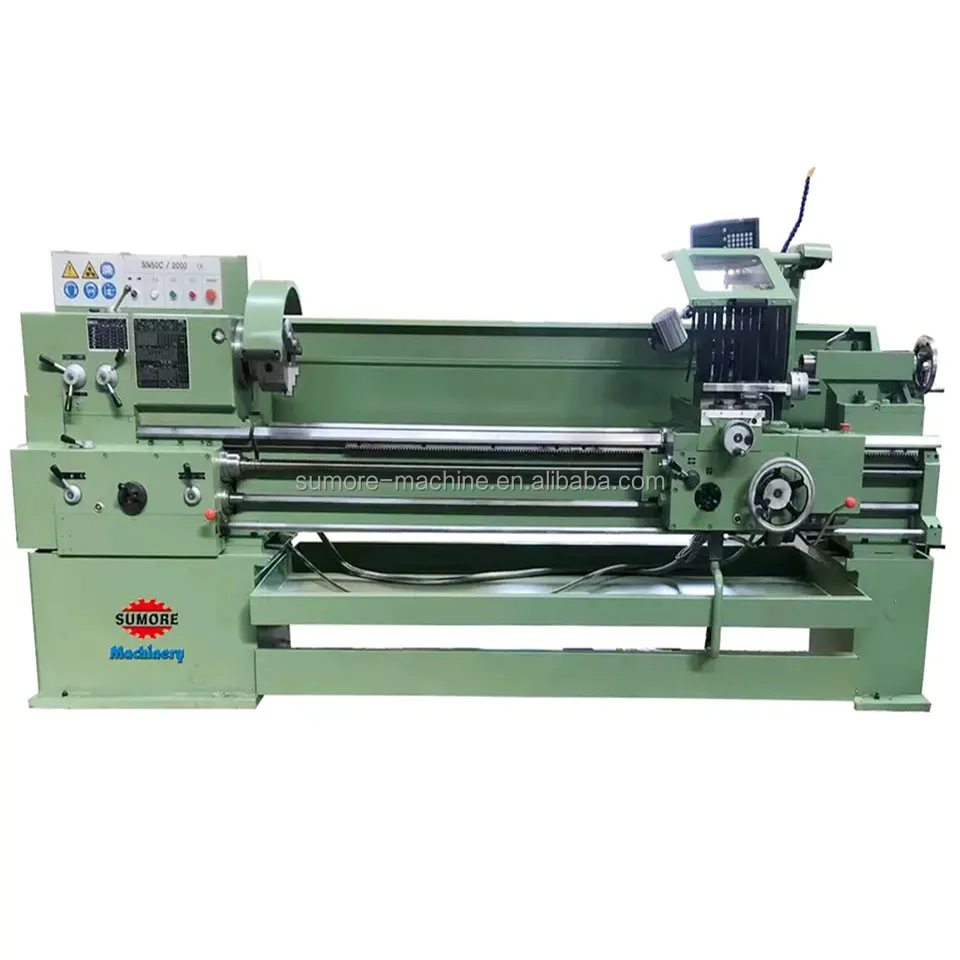

SN50C
|
|
CAPACITY
|
|
|
Max. swing over bed |
500mm |
|
Max. swing over cross slide |
270mm |
|
Max. swing over the bed gap |
700mm |
|
Effective gap length |
357mm |
|
Max. length of workpiece |
1000/1500/2000mm |
|
Width of bed |
340mm |
|
SPINDLE
|
|
|
Spindle nose |
C6 |
|
Spindle bore |
φ52mm |
|
Taper of spindle bore |
MT6 |
|
Range of spindle speed(stepless) |
22-2000rpm |
|
FEEDS
|
|
|
Etric threads – number/pitch |
29/0,5–40 Nr./mm |
|
Whitworth threads – number/pitch |
38/1–80 Nr./TPI |
|
Modular threads – number/pitch |
26/0,25–20 Nr./mm |
|
Diametral Pitch threads–number/number of DP threads |
31/2–72 Nr./Nr. |
|
Cross slide working traval |
300 mm |
|
Z axis travel |
500/750/1000mm |
|
Tool slide working traval |
140mm |
|
Max. section of tool |
32x32mm |
|
TAISTOCK
|
|
|
Tailstock sleeve diameter |
φ70mm |
|
Tailstock sleeve stroke |
180mm |
|
Taper of tailstock spindle center hole |
MT5 |
|
MOTOR
|
|
|
Main motor power |
5.5 kw |
|
Coolant pump power |
120w |
|
DIMENSION AND WEIGHT
|
|
|
Parking size LxWxH |
2700/3200/3720 X 1120 X1905mm |
|
Net weight |
1735/1835/1950kgs |
|
Groos weight |
1935/2035/2250kgs |
