Swing Over Bed: 180mm
Distance Between Centers:300mm
Spindle Bore: 20mm
| Model No. | SP2102CNC |
| Swing over bed | 180mm |
| Distance between centers | 300mm |
| X-axis fast moving | 800mim/mm |
| Z-axis fast moving | 1200min/mm |
| Spindle taper | MT3 |
| Spindle aperture | 20mm |
| Spindle speed | 50-2250rpm |
| X-axis torque | 1.5NM |
| Z-axis torque | 2NM |
| X-axis travel | 60mm |
| Z-axis travel | 250mm |
| Taper of tailstock | MT2 |
| Travel of tailstock | 50mm |
| N.W./G.W. | 90/100KG |
| Machine dimension | 900×400×1250mm |
| Packing | 1200×800×1500mm |
| Standard Accessories | Optional Accessories |
| 3-jaw Chuck | 4-jaw Chuck |
| Dead Center | Tool Post |
| Toolbox with Tools | Tool Holder |
| Coolant Pump | Cutting Tools |
| Oil Gun | Handwheel |

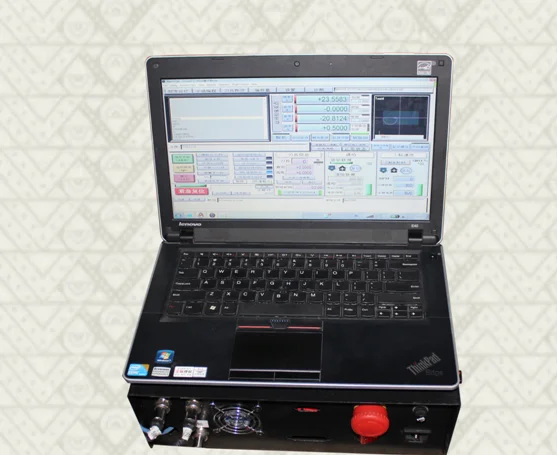

| Oil Tray | PCMCIA Parallel Card |
| Base Stand | Computer Stand and Frame |
| Operation Manual Instruction and Parts List |
