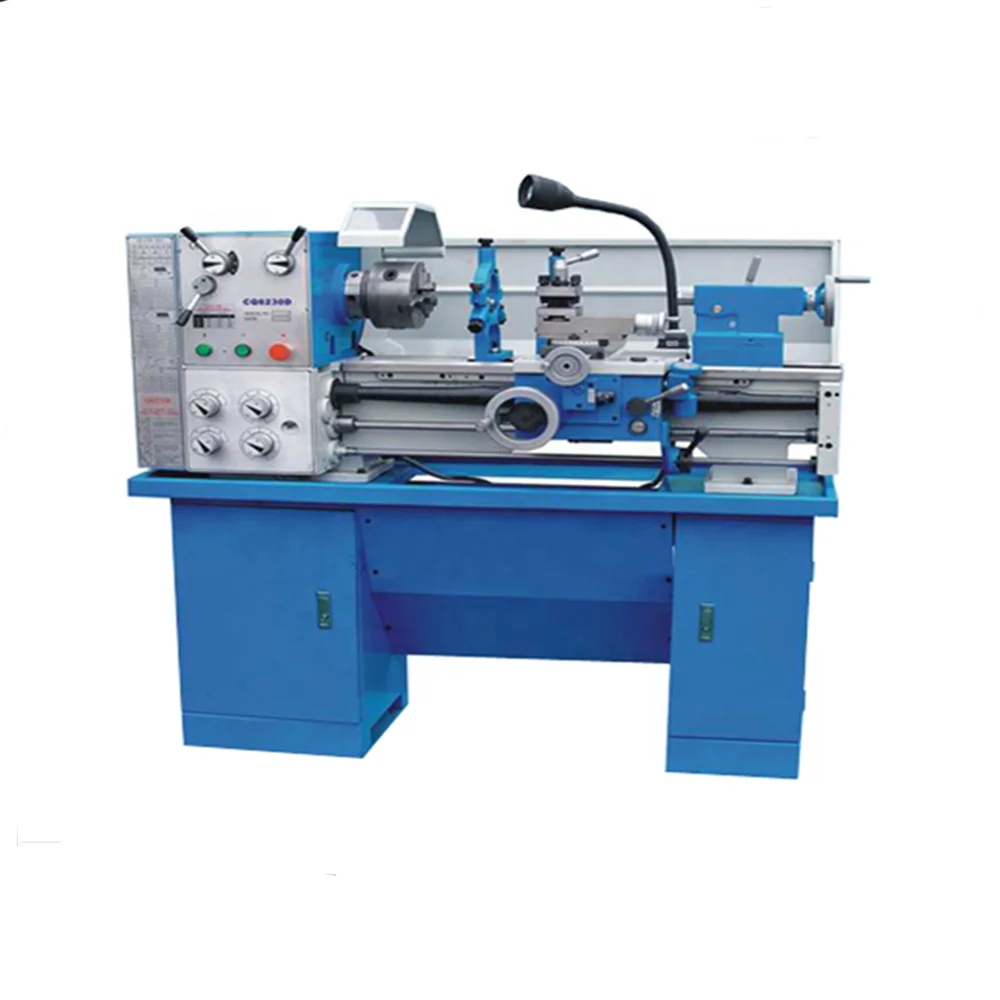

SP2110 Gear Head Lathe

Quick Details

Swing Over Bed: 300/320mm

Distance Between Centers: 750/910/1,000 mm

Spindle Bore: 38mm

Descriptions

Sumore !!! SP2110 chinese high quality knife tools parallel manual lathe machine for sale 38mm Bore for sale !!

As one of our HOT selling model, SUMORE SP2110 Chuck metal lathe machine price with 38mm spindle bore (gear head lathe, metal turning lathe, precision lathe, lathe machine) has below features: 1.Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch. 2.High accuracy mechanism ensures it to break almost all difficulties during work easily: Spindle with precision roller bearing and headstock gears with high quality ground and hardened steel. 3. With mountains and two moment rail, precision ground and supersonic frequency quenching hardened bed ways, high rigidity, high accuracy, good abrasion resistance. Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning.
Model
SP2110-I(II)
Swing over Bed
300 (320) mm
Swing over Cross Slide
180 (198) mm
Swing over Gap
430 (476) mm
Distance Between Centers
750/910/1,000 mm
Spindle Bore
38 mm
Headstock Spindle Taper
MT 5
Range of Spindle Speeds
65 – 1,400 / 65 – 1,810 rpm
Range of Longitudinal Feeds
0.079 – 1.291 mm/rev
Range of Cross Feeds
0.017 – 0.276 mm/rev
Tailstock Quill Travel
100 mm
Tailstock Quill Taper
MT 3
Range of Inch Threads
4 -60 TPI
Range of Metric Threads
0.4 – 7.0 mm
Motor Power
1,100 / 1,500 w
Packing Size (LxWxH)
1,480 / 1,940 x 750 x 1,400 mm
Weight – Net (Gross)
500(550) / 620(670) kg
