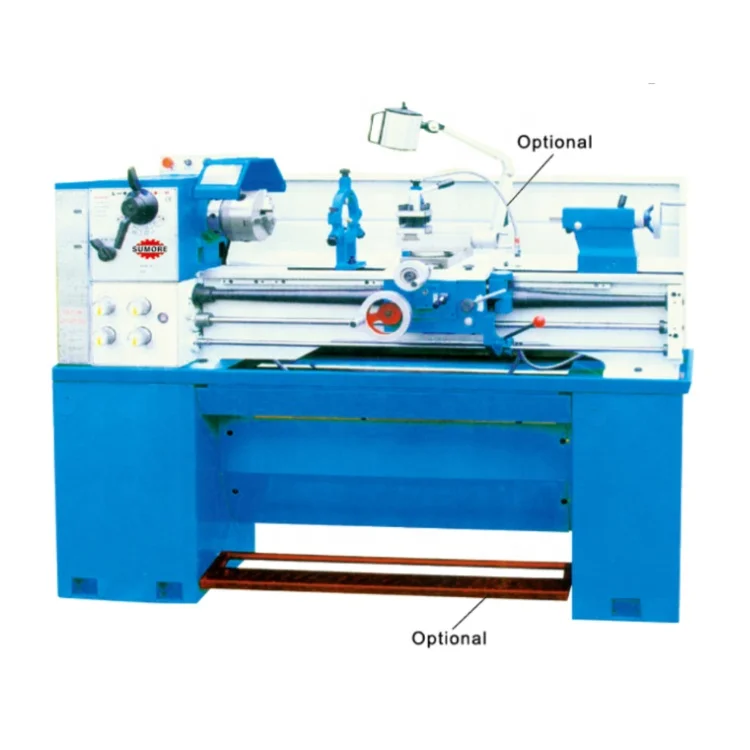

Swing Over Bed: 360mm
Center Distance: 750/1000mm
Motor Power: 1.5/2.2KW
|
Model |
SP2112-II |
|
Swing over Bed |
360mm(14″) |
|
Swing over Cross Slide |
212mm(8-1/6″) |
|
Swing over Gap |
491mm(9-1/3″) |
|
Distance Between Centers |
1,000 mm |
|
Spindle Bore |
38mm(1-1/2″) or 52mm(2″) (Optional) |
|
Headstock Spindle Taper |
MT 5 |
|
Range of Spindle Speeds |
35/70 – 2,000 rpm (2 SPEED Motor) |
|
Range of Metric Longitudinal Feeds |
36 Nos. 0.050 – 0.696 mm/rev
32 Nos. 0.052 – 0.392 mm/rev |
|
Range of Imperial Longitudinal Feeds |
36 Nos. 0.0019″ – 0.0273″ /rev
32 Nos. 0.002″ – 0.0154″ /rev |
|
Range of Metric Cross Feeds |
36 Nos. 0.013 – 0.188 mm/rev
32 Nos. 0.014 – 0.380 mm/rev |
|
Range of Imperial Cross Feeds |
36 Nos. 0.00052″ – 0.0074″ /rev32 Nos. 0.00055″ – 0.015″ /rev |
|
Range of Imperial Threads |
36 Nos. 8.0 – 112.0 TPI34 Nos. 4.0 – 56.0 TPI |
|
Number of Imperial Threads |
36 / 34 |
|
Range of Metric Threads |
28 Nos. 0.20 – 5.00 mm
26 Nos. 0.4 – 7.00 mm |
|
Number of Metric Threads |
28 / 26 |
|
Tailstock Quill Travel |
100 mm |
|
Tailstock Quill Taper |
MT 3 |
|
Motor Power |
1,500W |
|
Net Weight |
620/690kg |
|
Packing Size (LxWxH) |
1,950 x 750 x 1,510 mm |
|
Gross Weight |
670/740kg |
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck |
4-jaw Chuck |
|
Dead Center |
Face Plate |
|
Cutting Tools |
Face Plate Clamping Kit |
|
Change Gear Set |
TiN Coated Cutting Tools & Replaceable Tips |
|
Splash Guard |
Steady Rest |
|
Chuck Safety Guard |
Follow Rest |
|
Stand |
Drill Chuck and Drill Arbor |
|
Oil Tray |
Live Center |
|
Oil Gun |
Quick Change Tool Post |
|
Manual & Parts List |
Clutch for Feed Rod |
|
Lead Screw Guard |
|
|

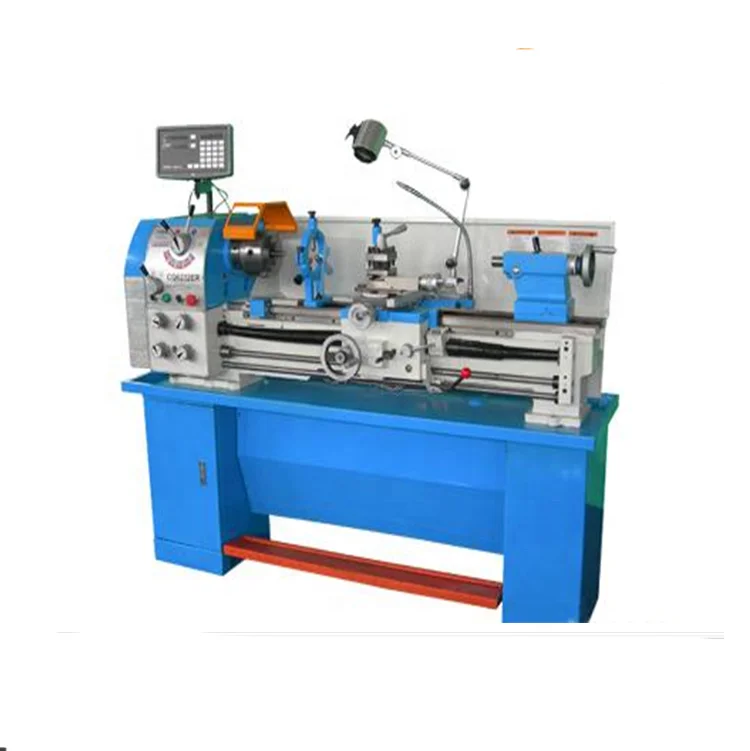

Digital Readout Cutting Depth |
|
|
Coolant System |
|
|
Work Light |
