Swing Over Bed: 410mm
Center Distance: 1000/1500mm
Motor Power: 4/5.5KW
|
Model |
SP2114-I |

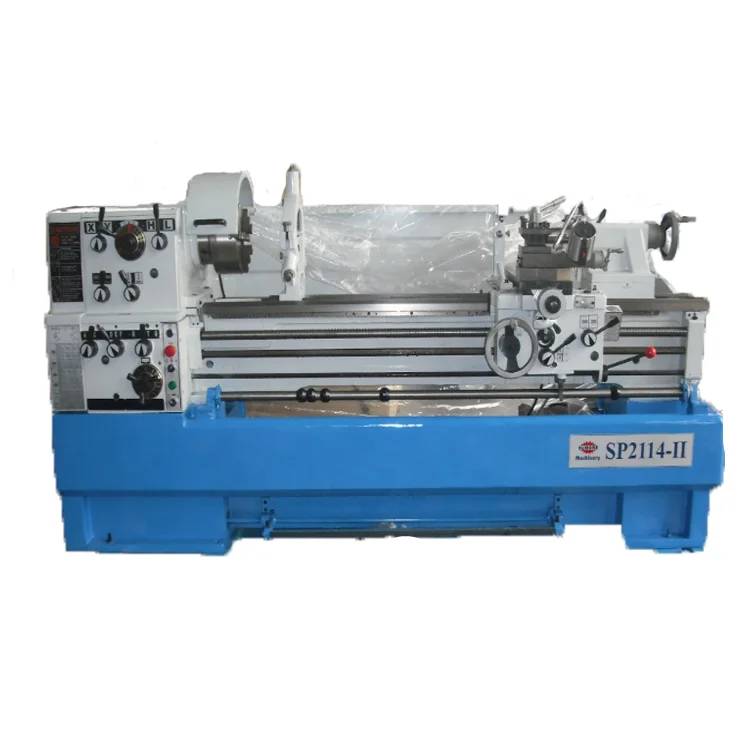

SP2114-II |
|
Swing over Bed |
410 mm |
460 mm |
|
Swing over Cross Slide |
224 mm |
274 mm |
|
Swing over Gap |
640 mm |
690 mm |
|
Distance Between Centers |
1,000 / 1,500 mm |
1,000 / 1,500 mm |
|
Width of Bed |
300 mm |
300 mm |
|
Spindle Bore |
58 mm |
58 mm |
|
Spindle Taper |
MT6 |
MT6 |
|
Spindle Nose |
D1-6 |
D1-6 |
|
Range of Spindle Speeds |
25 – 2,000 rpm |
25 – 2,000 rpm |
|
Range of Longitudinal Feeds |
0.031 – 1.700 mm/rev |
0.031 – 1.700 mm/rev |
|
Range of Traverse Feeds |
0.014 – 0.784 mm/rev |
0.014 – 0.784 mm/rev |
|
Compound Slide Travel |
128 mm |
128 mm |
|
Cross Slide Travel |
290 mm |
290 mm |
|
Tailstock Quill Travel |
120 mm |
120 mm |
|
Tailstock Quill Taper |
MT4 |
MT4 |
|
Number of Inch Threads |
60 |
60 |
|
Range of Inch Threads |
2 – 112 TPI |
2 – 112 TPI |
|
Number of Metric Threads |
41 |
41 |
|
Range of Metric Threads |
0.1 – 14.0 mm |
0.1 – 14.0 mm |
|
Main Motor Power |
4,000 / 5,500 w (5.4 / 7.5 HP) |
4,000 / 5,000 w (5.4 / 7.5 HP) |
|
Coolant Power |
100 w (1/8 HP) |
100 w (1/8 HP) |
|
Overall Dimensions (LxWxH) |
2,170/ 2,720 x 1,040 x 1,340 mm |
2,170 / 2,720 x 1,040 x 1,370 mm |
|
Packing Size (LxWxH) |
2,250 / 2,800 x 1,120 x 1,730 mm |
2,250 / 2,800 x 1,120 x 1,730 mm |
|
Gross Weight |
1,980 / 2,320 kg |
2,045 / 2,385 kg |
