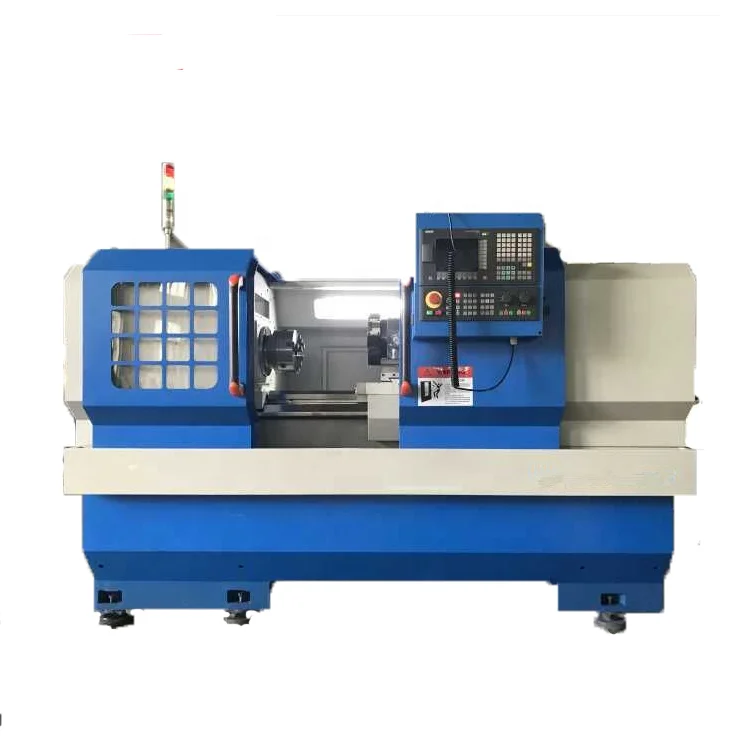

SP2116 Flat Bed Lathe

This CNC Lathe is mainly used for turning inner and outer cylindrical surface, end surface, taper surface, are surface and thread of shaft, etc,. with high efficiency and accurate processing. The cutting tools carrier is equipped with 4-station.6-station or gang-type tool holder. The spindle speed is adjusted by frequency alternation. The spindle supporter is adopted with preloading Japan NSK accurate and angular contact rolling bearings and the bed way has been finely grinded after ultra-tone quenching.

1. Model CJk mechanical gear shfts as optional. 2. We have MACH GSK SIEMENS& FANUC systems for options. 3.Optimized guide rail structure by double triangles. 5. Steady cast iron feet. 6.Professional Electronic System

7.High Rigidity Guide Way & Bed Construction. 8.Powerful Main Motor & Reliable Servo Motor. 9.High Precision for All Axes Movements. 10.Automatic Tool Charger & Multiple Tool Positions. 11.Cabinet Door Opening System & Considerable Safety Signs.

Model	SP2116
Swing over Bed	360/400 mm
Swing over Carriage	190/220 mm
Rail width	330mm
Spindle nose	A2-6
Spindle Taper	MT6
Spindle Bore	60 mm
Spindle Speed	150 – 2,500 rpm
Distance Between Centers	500/750/1000/1500 mm
X- travel	250mm
Size of 3-jaw chuck	Ø200/250mm
Stations of tool carrier	4/6/8 or tool array
Min. setting unit of motor (X)cross	0.001mm
Min. setting unit of motor (Z)cross	0.001mm
Moving speed of (X)cross	4m/min
Moving speed of (Z)cross	6m/min
Max. size of tool post	20/25mm
Tailstock sleeve dia.	Ø55mm
Tailstock sleeve taper	MT4
Tailstock sleeve travel	120 mm
Coolant motor power	120W
Motor Power	5500W
Voltage and Frequency	Customerized
Packing Size (LxWxH)	2300 x 1550 x 1950 mm
Keyword	cnc lathe with live tooling
