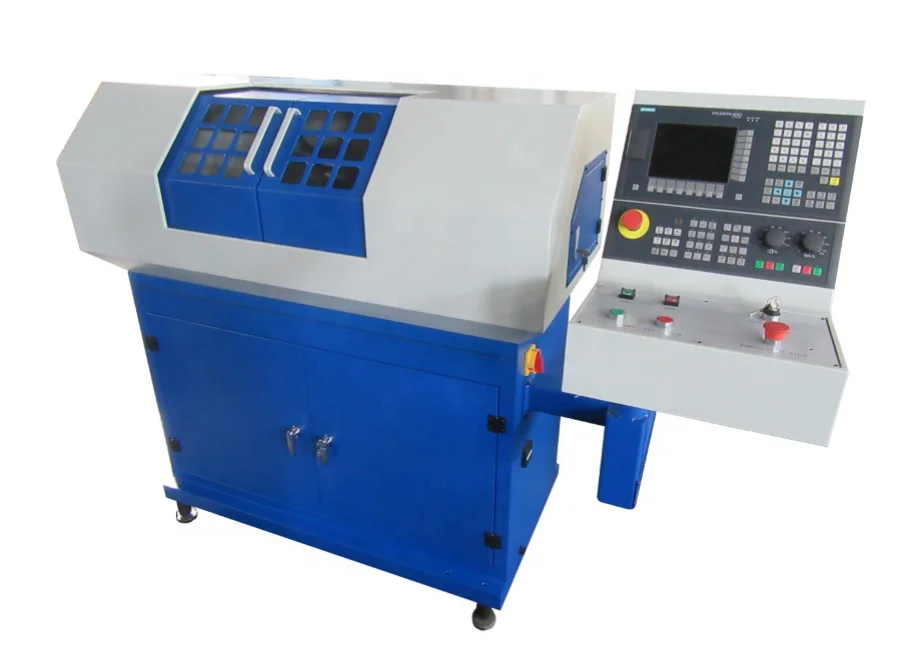

SP2118S Flat Bed CNC Lathe

Quick Details

Max Swing Over Bed: 250mm

Spindle Power: 1000W

Descriptions

SUMORE hight quality cheap cnc lathe slant bed metal fanuc SP2118S for sale !!!

Sumore CNC Lathe heritages outstanding base construction idea, only utilizing integral bed structure which is comprises of high rigidity cast iron lubricated by high grade grease, along with multiple lengths of quenched guide ways.
Meanwhile, high precision ball screw and bearings are being used for extremely high quality axes to achieve smooth movement and accurate restoration.
Spindle, chuck and tailstock are also with nice quality and various tapers, still, multiple positions tool posts are reliable and efficient as always.
A centralized easy & friendly man-machine operating panel is not only creating an easier way for programming, but also bringing technicians convenience and enjoyment.
Common programming systems with the most advanced technologies are all available including MACH / GSK / SIEMENS / FANUC programming systems, allowing our customers to accomplish various purposes during their metalworking.
At the same time, a full closure cover design and cabinet door opening system and considerable safety signs will certainly erase all potential hazards. All strictly approved by CE certificate, SGS authentication and Chinese national standards.
Model
SP2118S
Swing over Bed
250 mm
Swing over Carriage
110 mm
Distance Between Centers
450 mm
Bed Width
135 mm
Maximum Travel on X Axis
180 mm
Maximum Travel on Z Axis
320 mm
Spindle Bore
20 mm
Spindle Taper
MT3
Spindle Speed
100 – 3,000 rpm
Tailstock Taper
MT2
Tool Post Position
4
Tool Restoration Accuracy
0.015 mm
Tool Post Swivel Angle
360°
Motor Power
1,000 w
Voltage and Frequency
Customerized
Overall Dimensions (LxWxH)
1,460 x 760 x 1,450 mm
Packing Size (LxWxH)
1,630 x 1,070 x 1,685 mm
Net Weight
440 kg
Gross Weight
530 kg
