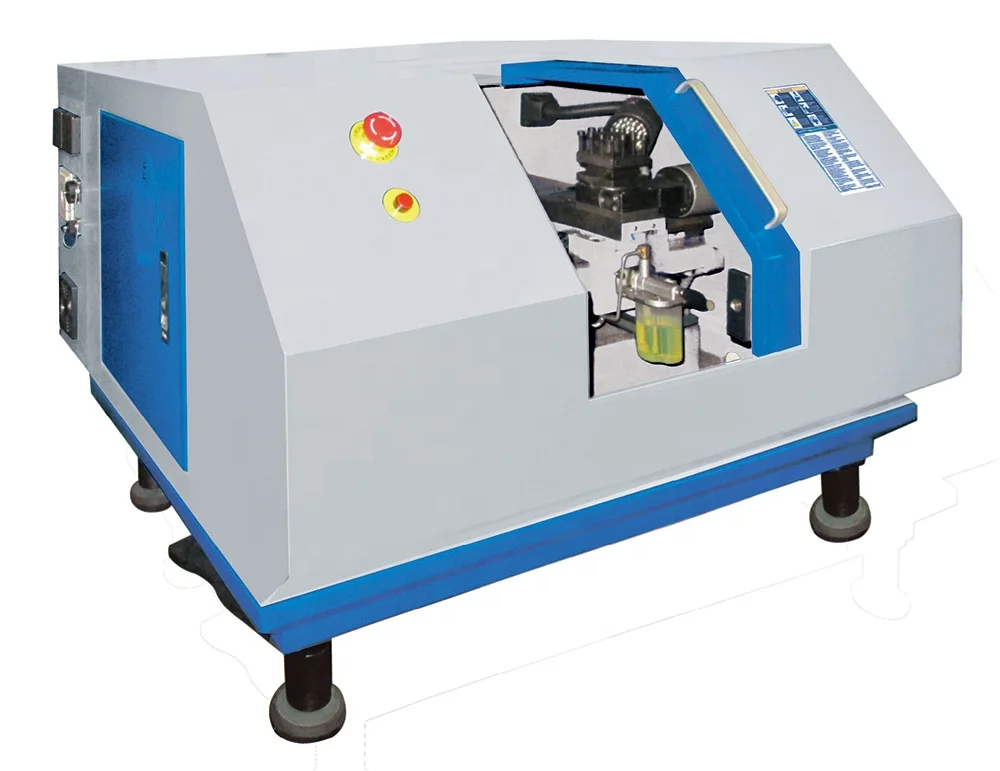

SP2120 Flat Bed CNC Lathe

Quick Details

Max Swing Over Bed: 200mm

Distance Between Centers: 380 mm

Spindle Power: 1000W

Descriptions

SP2120 China supplier factory price hobby mini cnc lathe machine for sale SUMORE !!!

Heritages outstanding base construction idea, only utilizing integral bed structure which is comprises of high rigidity stainless steel lubricated by high grade grease, along with multiple lengths of quenched guide ways.
Meanwhile, high precision ball screw and bearings are being used for extremely high quality axes to achieve smooth movement and accurate restoration.
Spindle, chuck and tailstock are also with nice quality and various tapers, still, multiple positions tool posts are reliable and efficient as always.
A centralized easy & friendly man-machine operating panel is not only creating an easier way for programming, but also bringing technicians convenience and enjoyment.
Common programming systems with the most advanced technologies are all available including MACH / GSK / SIEMENS / FANUC programming systems, allowing our customers to accomplish various purposes during their metalworking.
At the same time, a full closure cover design and cabinet door opening system and considerable safety signs will certainly erase all potential hazards. All strictly approved by CE certificate, SGSN authentication and Chinese national standards. Sumore CNC Lathe significantly improves the efficiency during all lathe working processes, such as, turning endface, taper or screws, spherical, external & internal cylindrical surfaces, and even for multi-tool turning missions. Especially when mass production is required, Sumore CNC Lathe will easily achieve both appreciable efficiency and impressive quality.
Specification
Model
SP2120
Swing over Bed
200 mm
Travel across slide
100 mm
Distance Between Centers
380 mm
X Tavel
75 mm
Z Travel
250 mm
Spindle Taper
MT3
Spindle Speed
100 – 3,000 r/min
Tailstock Taper
MT2
Tailstock sleeve diameter
22 mm
Travel of Tailstock
50 mm
Tool Post Position
4
Tool dimension
8×8 mm
Positioning accuracy
±0.015 mm
Repeatability accuracy
±0.01 mm
Spindle Motor Power
500 W
Voltage and Frequency
Customerized
Overall Dimensions (LxWxH)
1,000 x 780 x 565 mm
Packing Size (LxWxH)
1,200 x 940 x 770 mm
Net Weight
210 kg
Gross Weight
250 kg
Keyword
mini cnc lathe machine
