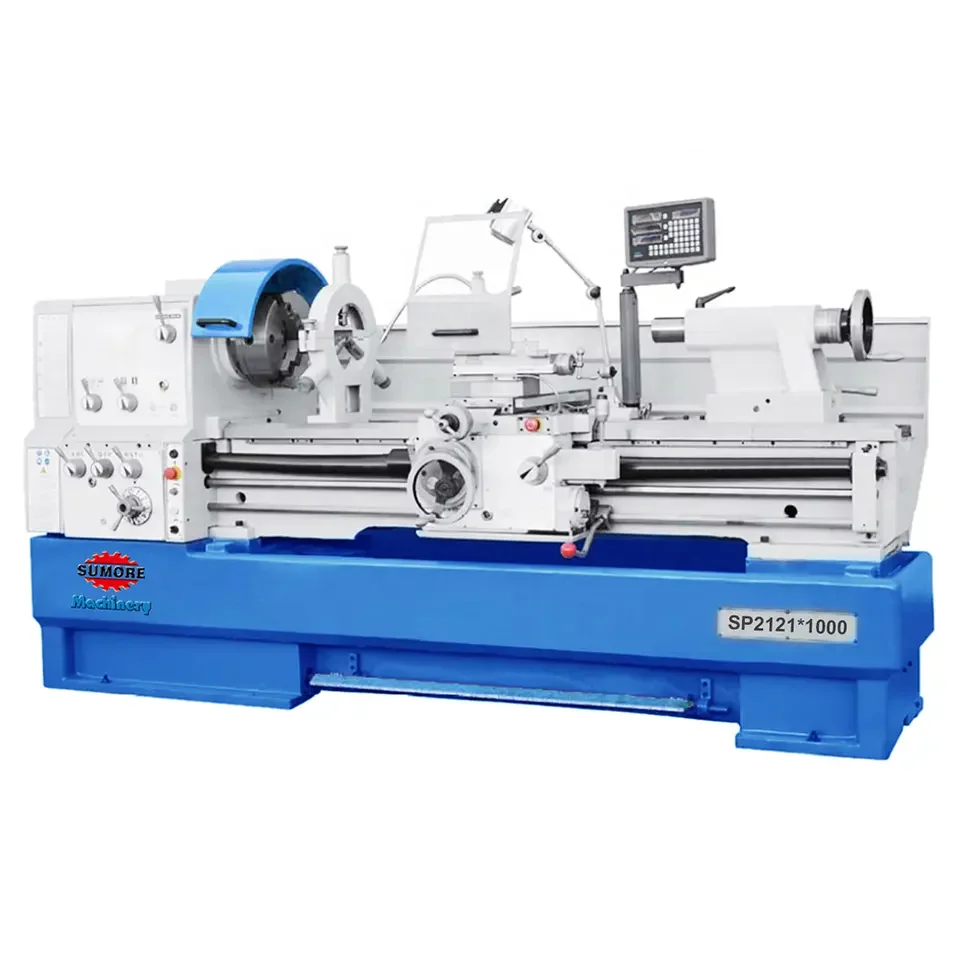

Swing Over Bed: 510/560mm
Center Distance: 1000/1500/2000/3000mm
Spindle Bore: 80/105mm
Motor Power: 7.5KW
|
Model |
SP2121-I |
SP2121-II |
|
Swing over Bed |
510 mm |
560 mm |
|
Swing over Cross Slide |
300 mm |
350 mm |
|
Swing over Gap |
738 mm |
788 mm |
|
Distance Between Centers |
1,000 / 1,500 / 2,000 / 3,000 mm |
1,000 / 1,500 / 2,000 / 3,000 mm |
|
Width of Bed |
350 mm |
350 mm |
|
Spindle Bore |
80 mm |
80 mm |
|
Spindle Taper |
MT7 |
MT7 |
|
Spindle Nose |
D1-8 |
D1-8 |
|
Range of Spindle Speeds |
25-1,600 rpm |
25-1,600 rpm |
|
Range of Longitudinal Feeds |
0.059-1.646 mm/rev |
0.059-1.646 mm/rev |
|
Range of Traverse Feeds |
0.020-0.573 mm/rev |
0.020-0.573 mm/rev |
|
Tailstock Quill Travel |
180 mm |
180 mm |
|
Tailstock Quill Taper |
MT5 |
MT5 |
|
Number of Inch Threads |
60 |
60 |
|
Range of Inch Threads |
2-112 TPI |
2-112 TPI |
|
Number of Metric Threads |
47 |
47 |
|
Range of Metric Threads |
0.2-14.0 mm |
0.2-14.0 mm |
|
Main Motor Power |
7,500 w (10HP) |
7,500 w (10HP) |
|
Coolant Power |
100 w (1/8 HP) |
100 w (1/8 HP) |
|
Overall Dimensions (LxWxH) |
2,900 x 1,120 x 1,430 mm |
3,400 x 1,120 x 1,430 mm |
|
Net Weight |
2,335 / 2,685 / 2,370 / 2,720 kg |
2,335 / 2,685 / 2,370 / 2,720 kg |
|
Packing Size (LxWxH) |
2,960 x 1,130 x 1,820 mm |
3,460 x 1,130 x 1,820 mm |
|
Gross Weight |
2,700 / 3,070 / 2,740 / 3,110 kg |
2,700 / 3,070 / 2,740 / 3,110 kg |
