Swing Over Bed: 660mm
Center Distance: 1000/1500/2000/2300/3000mm
Spindle Bore: 80/103mm
Motor Power: 7.5KW
|
Model No. |

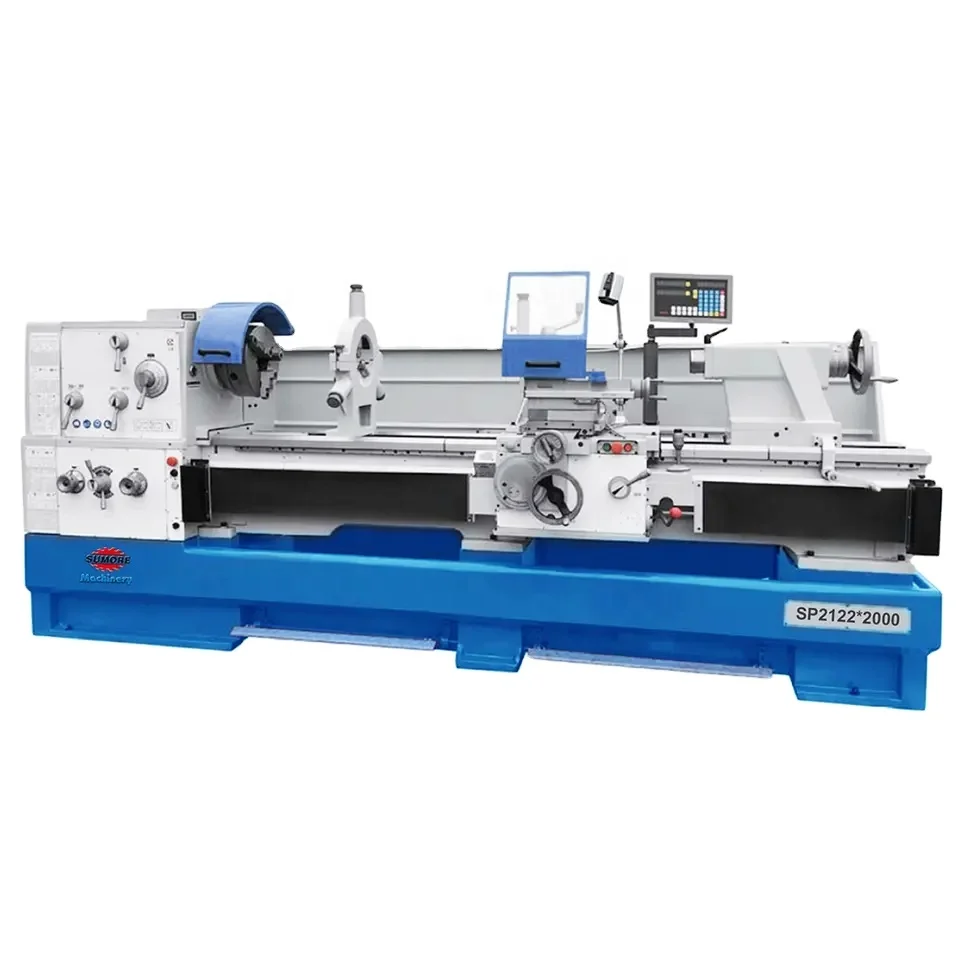

SP2122-II |
|
Max.swing over bed |
660mm |
|
Distance between centers |
1000mm/1500mm/2000mm/2300mm/3000mm |
|
Max.swing over cross slide |
455mm |
|
Width of bed |
350mm |
|
Max.swing over gap |
885mm |
|
Length of gap |
200mm |
|
Spindle nose |
D1-8 |
|
Spindle bore |
80mm 103mm |
|
Taper bore of spindle |
No.7 Morse(p113 (1:20) |
|
Steps of spindle speed |
12 changes 25-1600r/min 25-1500r/min |
|
Metric threads |
47 kinds 0.2-14mm |
|
Imperial threads |
60 kinds, 2-112TPI |
|
Module threads |
34 kinds, 0.1-7MP |
|
Diametral threads |
50 kinds, 4-112DP |
|
Range of longitudinal feeds |
35 kinds,0.059-1,646mm/rev |
|
Range of cross feeds |
35 kinds,0.020-0.573mm/rev |
|
Dia.of tailstock sleeve |
75mm |
|
Travel of tailstock sleeve |
180mm |
|
Taper of tailstock sleeve |
No.5 Morse |
|
Max travel of cross slide |
355mm |
|
Max.travel of compound rest |
130mm |
|
Main motor power |
7.5kw |
|
Overall dimensions(LxWxH) |
240/285/335/370/435x115x151cm |
|
Packing size(LxWxH) |
245/290/340/375/440x115x182cm |
|
Net weight |
2420/2540/2800 /2880/3200kg |
|
2430/2550/2810 /289073210kg |
|
|
Gross weight |
2800/2930/3200 /3290/3680kg |
|
2810/2940/3210 /3300/3690kg |
