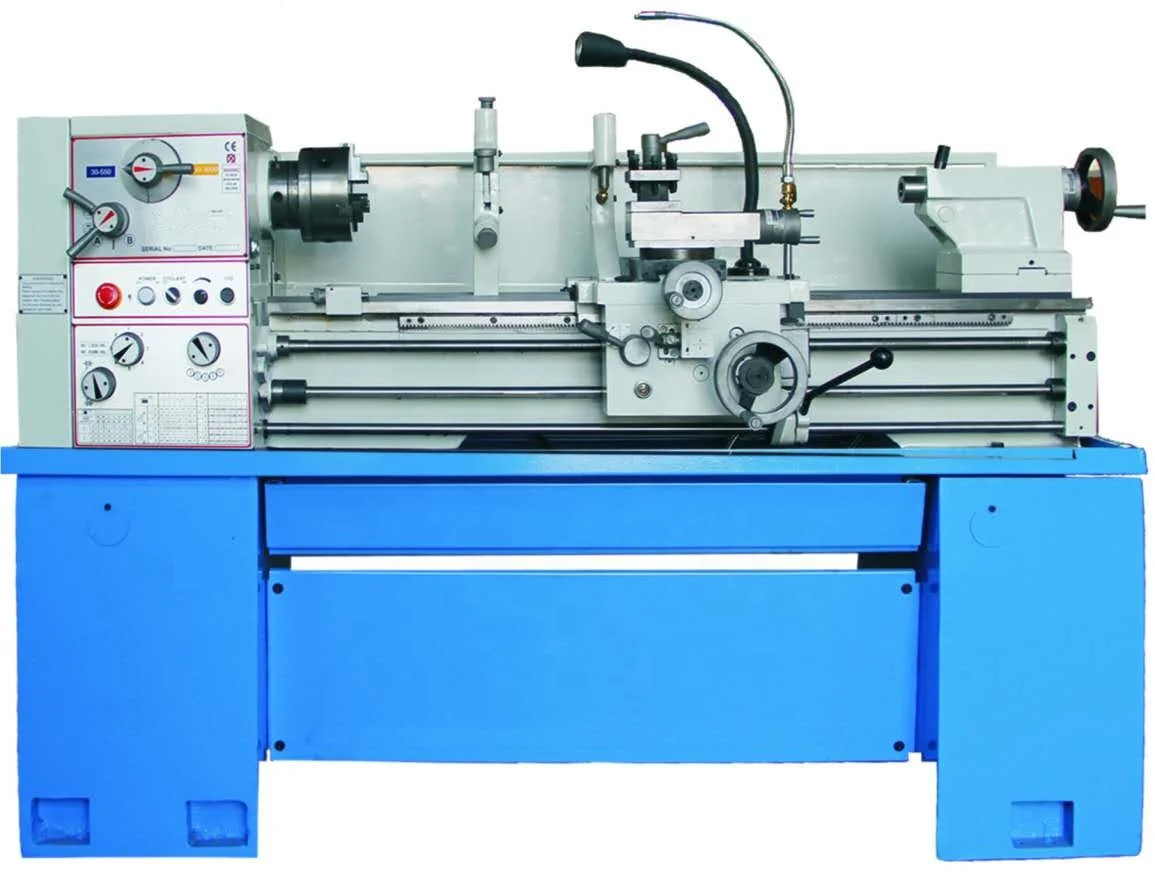

Swing Over Bed:360mm/400mm
Center Distance: 1000mm
Motor Power: 2/3.3HP
|
Model |
SP2123(I/II) |
|
Swing over Bed |
360 mm/400 mm |
|
Swing over Cross Slide |
220 mm |
|
Swing over Gap |
506 mm (20″) |
|
Distance Between Centers |
1,000 mm |
|
Width of Bed |
206 mm |
|
Spindle Bore |
38 / 52 mm(Optional) |
|
Spindle Taper |
MT5 |
|
Spindle Nose |
D1-5 |
|
Range of Spindle Speeds |
90/45 – 1,800 rpm |
|
Range of Metric Longitudinal Feeds |
42 Nos. 0.043-0.653mm/rev |
|
40 Nos. 0.0304-0.746mm/rev |
|
|
Range of Imperial Longitudinal Feeds |
42 Nos. 0.0017″-0.0257″/rev |
|
40 Nos. 0.0012″-0.0294″/rev |
|
|
Range of Metric Cross Feeds |
42 Nos. 0.015-0.22mm/rev |
|
40 Nos. 0.0076-0.254mm/rev |
|
|
Range of Imperial Cross Feeds |
42 Nos. 0.0006″-0.0087″/rev |
|
40 Nos. 0.0003″-0.0100″/rev |
|
|
Compound Slide Travel |
92 mm |
|
Cross Slide Travel |
178 mm |
|
Carriage Travel |
840 mm |
|
Tailstock Quill Travel |
115 mm |
|
Tailstock Quill Taper |
MT3 |
|
Range of Imperial Threads |
28 Nos. 4 – 56 TPI |
|
40 Nos. 4 – 112 TPI |
|
|
Range of Metric Threads |
37 Nos. 0.4 – 7.0 mm; |
|
22 Nos. 0.45 – 7.5mm |
|
|
Motor Power |
1.5/2.2KW |
|
Power Supply |
Customerized |
|
Net Weight |
750 kg |
|
Packing Size (LxWxH) |
1,950 x 760 x 1,480 mm |
