HOME » PRODUCT » Lathe Series » Mini Lathe

PRODUCT LIST

SP2124-II Bench Lathe

Quick Details

Swing Over bed: 250mm

Distance Between Centers: 450/700mm

Motor Power: 750W

Descriptions

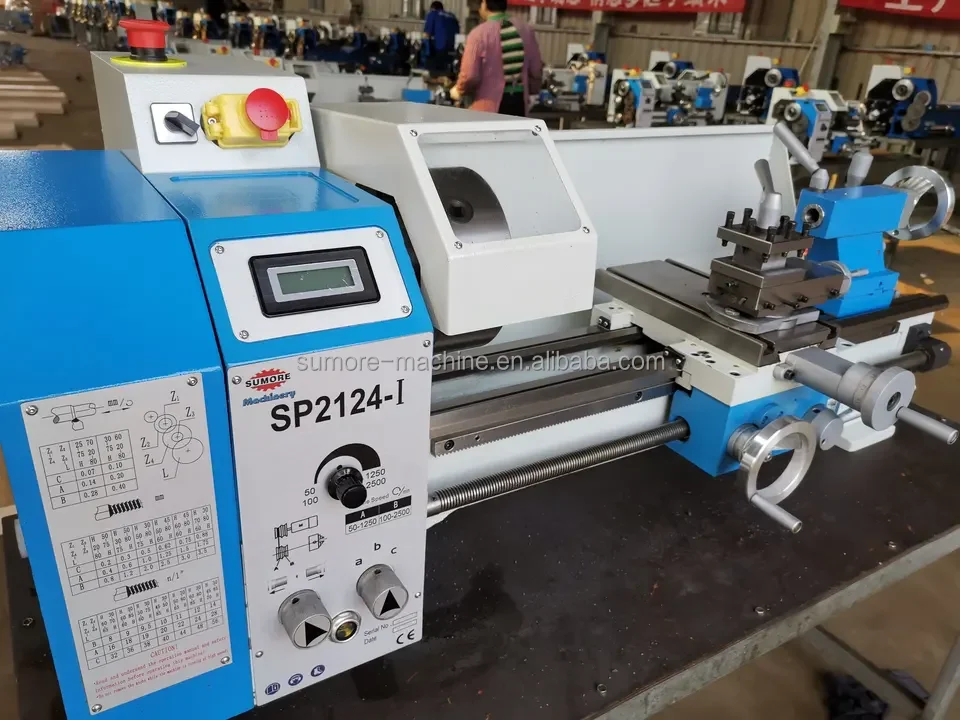

2023 New Lathe Chinese Small Metal Lathe SP2124-II 250mm Swing & 450/700mm Centers Variable Speed Bench Lathe Tornos Lathe SUMORE

Sumore Bench Lathe SP2124 have all basic characteristics comparing to normal larger gear head lathe, it has unique advantages, such as, smaller size, lighter weight, lower noise and so on. Its relatively simpler structure also remain in full rigid and high strength hardened steel base construction. Further more, full scale of accessories are provided for each Sumore Bench Lathe who still be able to carry on turning, drilling, boring, knurling and threads processes, which also means it can be widely introduced into small metal / nonmetal workpieces machining during family metal work, technical school education or scientific facilities research.
Model
SP2124-II
Distance between centers
450/700mm
Swing over bed
250mm
Swing over carriage
130mm
Taper of spindle nose
MT4/27mm
Spindle speed range
6 speeds 115-1620rpm
Metric thread cutting
0.2-3.5mm 20 kinds
Inch thread cutting
8-56/1mm 20 kinds
Longitudinal feeds
0.05-0.2mm/rev
Travel of tool post
70mm
Tailstock taper
MT2
Motor
750W
Overall dimension
1220X550X410mm
Weight
150kgs
