HOME » PRODUCT » Lathe Series » Mini Lathe

PRODUCT LIST

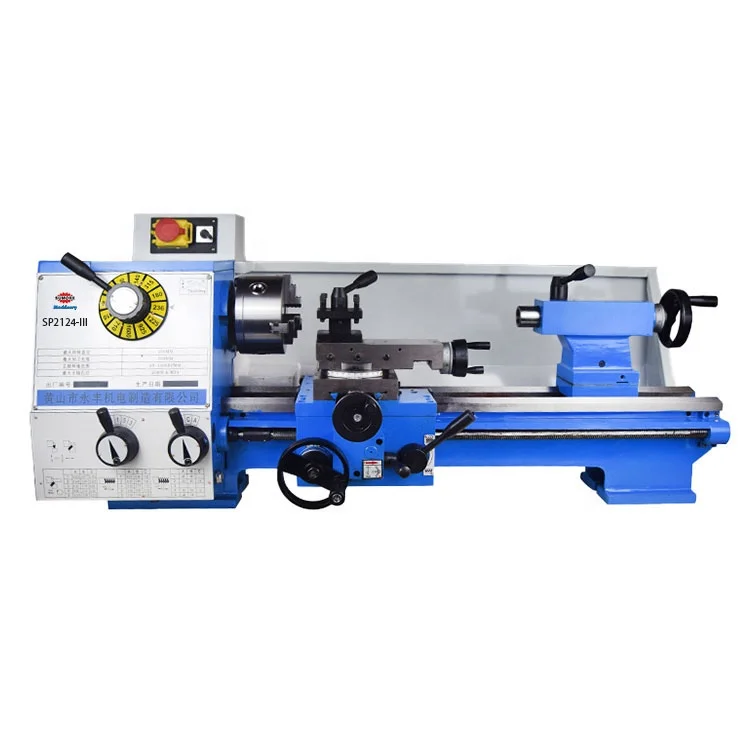

SP2124-III Bench Lathe

Quick Details

Swing Over bed: 250mm

Distance Between Centers:500mm

Motor Power: 750W

Descriptions

2023 SUMORE New Lathe SP2124-III variable speed lathe/torno machine for metal 250*500mm tornos para metal bench lathe 250mm swing over bed 3/4 jaw chuck horizontal thread lathe

Sumore Bench Lathe SP2124 have all basic characteristics comparing to normal larger gear head lathe, it has unique advantages, such as, smaller size, lighter weight, lower noise and so on. Its relatively simpler structure also remain in full rigid and high strength hardened steel base construction. Further more, full scale of accessories are provided for each Sumore Bench Lathe who still be able to carry on turning, drilling, boring, knurling and threads processes, which also means it can be widely introduced into small metal / nonmetal workpieces machining during family metal work, technical school education or scientific facilities research.
SP2124-III Product Specifications
Distance between centers
500 mm
Swing over bed
250 mm
Swing over cross slide
100 mm
Taper of spindle bore
MT4
Taper of tailstock quill
MT3
Width of bed
135 mm
Spindle bore
26 mm
Y-Axis working travel
130 mm
Top slide travel
60 mm
Tailstock quill travel
60 mm
Range of metric thread
0.2-2.5 mm
Range of imperial thread
12-96 T.P.I.
Range of spindle speed
12/80-1600 r/min
Range of longitudinal feed
0.07~0.20mm/rev
Number of spindle speed
6/Variable speed
Main Motor
750W
Net weight
163Kg/180Kg
Overall dimension
1130*550*405mm
Packing size
1200*620*600mm
