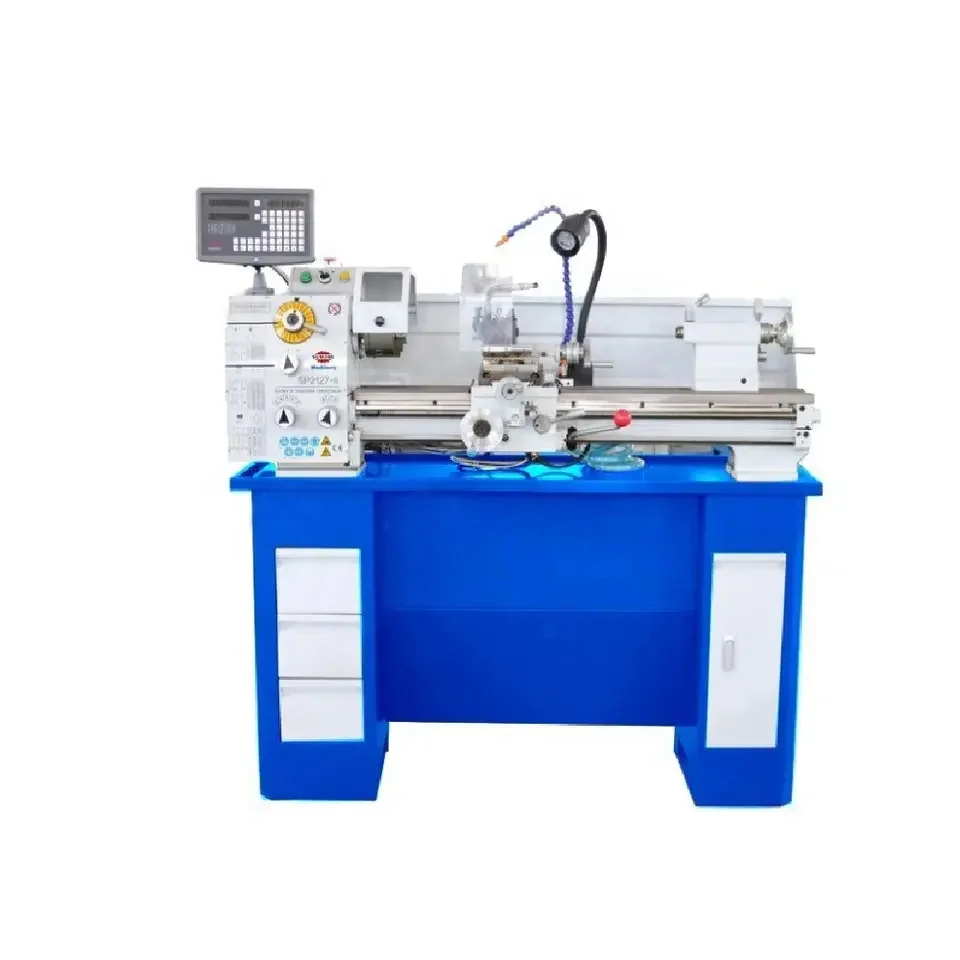

SP2127-II Bench Lathe

Quick Details

Swing Over bed: 260/280mm

Distance Between Centers: 550/610/815mm

Motor Power: 750W

Descriptions

Factory Sales 26mm bore metalworking bench lathe SP2127-II variable speed lathe metal manual lathe tornos SP2127-II new condition not used mini table top bench metal lathe tornos para metal

Used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread.Processing of precision parts, the sample processing and processing of the model can also be used.
After high frequency quenching process and precision grinding of high-quality cast iron bed.Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning
Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
Model
SP2127-II
Distance between centers
550/610/815mm
Swing over bed
280mm
Bed width
150mm
Max. workpiece length
500/560/765mm
Swing over slide
140 mm
Spindle bore
26mm
Spindle taper
MT4
Max. travel of cross slide
130mm
Max. travel of top slide
65mm
Max. travel of tailstock quill
60mm
Taper of tailstock quill
MT3
Range of spindle speed
Gear drive 12 steps 80~1600rpm Variable speed 180-2200rpm Belt drive 6 steps 125-2000rpm
Motor power
750W
Net weight
140kgs
Gross weight
160kgs
Packing size (LxWxH)
1200×650×600mm
