HOME » PRODUCT » Lathe Series » Mini Lathe

PRODUCT LIST

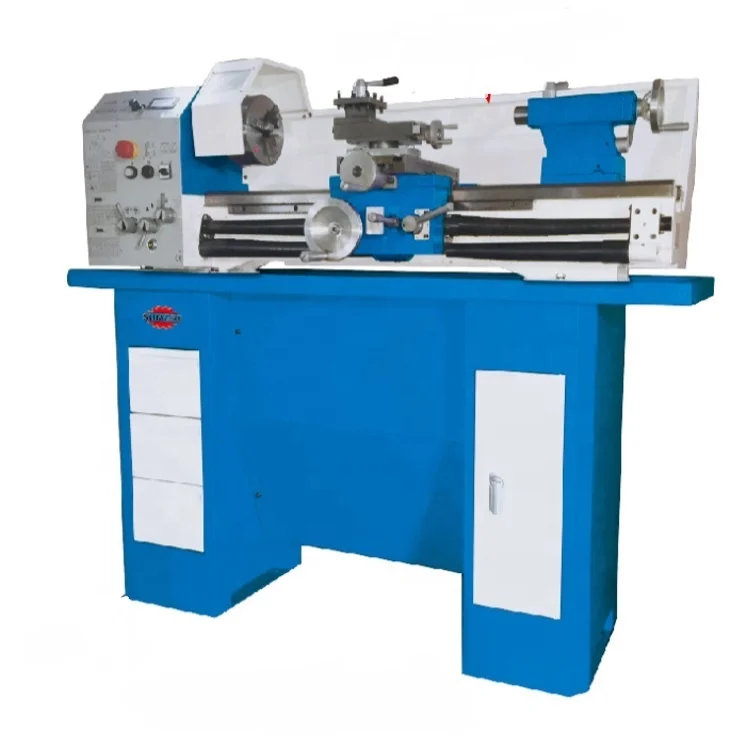

SP2129-II Bench Lathe

Quick Details

Swing Over Bed: 300mm

Center Distance: 700mm

Motor Power: 1.5KW

Descriptions

Factory Sales 38mm bore metalworking bench lathe Sumore SP2129-II lathe machine for metal 300*700mm center distance variable speed bench lathe mini torno tornos SP2129-II mini horizontal bench manual lathe

As one of our HOT selling model, SUMORE 750W 1500w precision metalworking hand lathe SP2129 variable speed bench lathe has below features:
1.Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
2.High accuracy mechanism ensures it to break almost all difficulties during work easily: Spindle with precision roller bearing and headstock gears with high quality ground and hardened steel.
3. With mountains and two moment rail, precision ground and supersonic frequency quenching hardened bed ways, high rigidity, high accuracy, good abrasion resistance.
A miniature lathe used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread. Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning.
Model
SP2129-II
Swing over Bed
300 mm
Swing over Cross Slide
180 mm
Distance Between Centers
700 mm
Width of bed
182 mm
Spindle Bore
38 mm
Spindle Taper
MT 5
Number of spindle speed
Variable speed
Range of spindle speeds
80-2000 r/min
Range of Longitudinal Feeds
(0.085-0.832 mm/rev
Range of Cross Feeds
0.01-0.10 mm/rev
Tailstock Quill Travel
70 mm
Tailstock Quill Taper
MT 3
Range of Imperial Threads
8 -56 TPI
Range of Metric Threads
0.2-3.5 mm
Motor Power
1.5 KW
Packing Size (LxWxH)
1500 x 750 x 700 mm
Weight – Net
280 kg

Standard Accessories
Optional Accessories
3-jaw chuck
4-jaw Chuck
Dead Center
Face Plate
Cutting Tools
Face Plate Clamping Kit
Change Gear Set
TiN Coated Cutting Tools & Replaceable Tips
Splash Guard
Steady Rest
Chuck Safety Guard
Follow Rest
Stand
Drill Chuck and Drill Arbor
Oil Tray
Live Center
Oil Gun
Quick Change Tool Post
Manual & Parts List
Clutch for Feed Rod
Lead Screw Guard
Digital Readout Cutting Depth
Coolant System
Work Light
