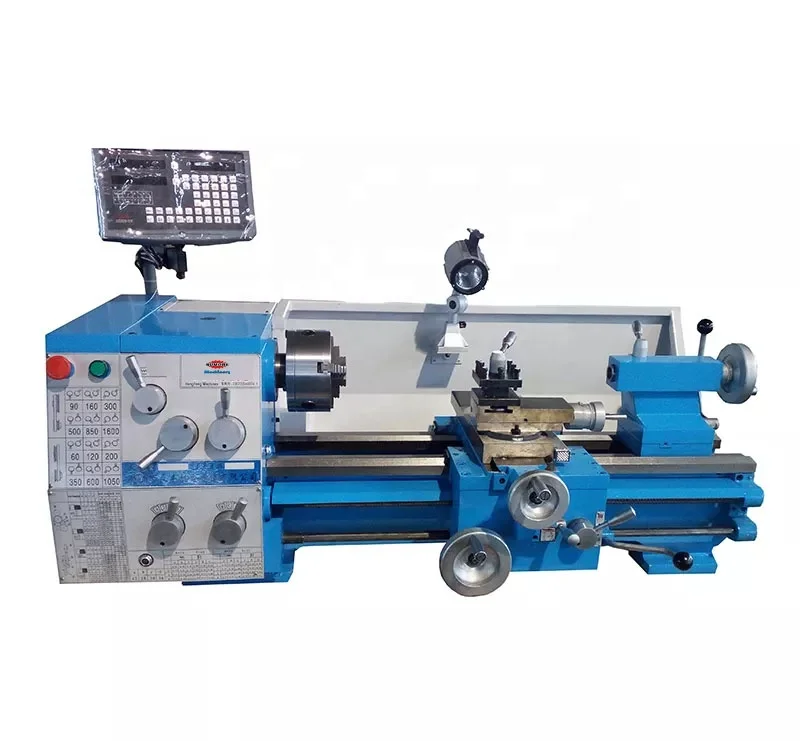

SP2132-I Bench Lathe

Quick Details

Swing Over Bed:320mm

Center Distance: 620mm/750mm

Motor Power: 750W

Descriptions

SP2132-I Chinese metal lathe 38mm bore bench lathe 600/750mm cheap small lathe variable speed tornos machine cjm320 Sumore

SP2132 brand new manual lathe machine for hobby is widely used conventional lathe machine. Features or advantages of lathe machine are as below:
1.Used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread.Processing of precision parts, the sample processing and processing of the model can also be used.
2.After high frequency quenching process and precision grinding of high-quality cast iron bed.Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning 3.Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
4.Chuck guard is with automatic power off.Brushless motor is available.
5.Power supply could be customized 110v/220v/380V.
6.All machines have to pass the checklist of the machine precision before shipment
Specification
Model
SP2132-I
Max. Swing over bed
320mm
Max. Swing over cross slide
200mm
Distance between center
600/750mm
Spindle bore diameter
38mm
Taper of spindle bore
MT5
Motor
0.75kw
Spindle speed
60-1600rpm
Number of spindle speeds
12
Metric threads range
22 kinds 0.2-7mm
Module threads range
21 kinds 0.2-3.5mm
Diametral threads range
31 kinds 8-120 1/n”
Longitudinal feeds range
0.1-14mm/r
Cross feeds range
0.045-0.60mm/r
Max. Travel of tailstock quill
80mm
Taper of tailstock quill bore
MT3
Oversll dimension
1370x685x1360mm
Packing size
1470x770x650mm
N/G weight
320/345kgs
