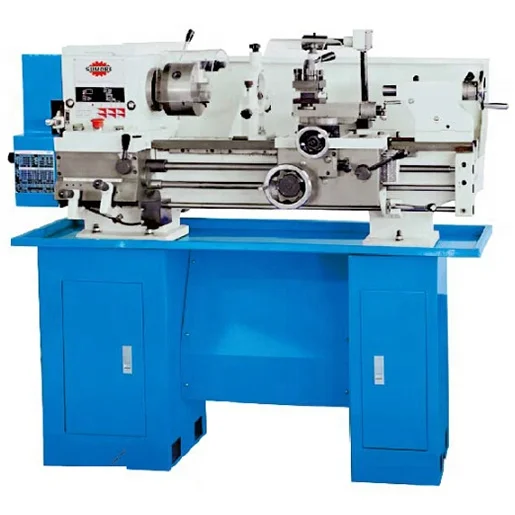

Swing Over Bed: 305mm
Center Distance: 530/940mm
Motor Power: 1.1KW
|
Model |
SP2142-I
|
SP2142-II
|
|
Max. Swing over bed |
305mm
|
|
|
Swing over Carriage |
173mm
|
|
|
Max. Swing over gap |
440mm
|
|
|
Width of bed |
182mm
|
|
|
Distance between centers |
530mm
|
940mm
|
|
Spindle taper |
MT5
|
|
|
Spindle bore |
36mm
|
|
|
spindle speed |
12 step
|
|
|
Range of spindle speed |
50~1200r/min
|
|
|
Range of Imperial thread |
40kinds(4~112T.P.I)
|
|
|
Range of Metric thread |
15kinds (0.25~7.5mm)
|
|
|
Range of feed amount |
0.12~0.42 (0.0047”~0.0165)
|
|
|
Diameter of lead screw |
φ22(7/8”)
|
|
|
Pitch of lead screw |
3mm or 8T.P.I
|
|
|
Saddle travel |
510mm
|
810mm
|
|
Cross slide travel |
150mm
|
|
|
Compound travel |
90mm
|
85mm
|
|
Barrel travel |
100mm
|
95mm
|
|
Barrel diameter |
32mm
|
|
|
Taper of tailstock quill |
MT3
|
|
|
Motor power |
1.1kw
|
|
|
Coolant power |
0.04(0.055HP)
|
|
|
Machine size |
1420×750×760mm
|
1780×750×760mm
|
|
Stand left |
400×370×700
|
|
|
Stand right |
300×370×700
|
|
|
Machine weight (N.W/G.W) |
365/415
|
385/435
|
|
Stand (N.W/G.W) |
60/65
|
|
|
Loading amount |
24pcs/20’
|
27pcs/20’
|
