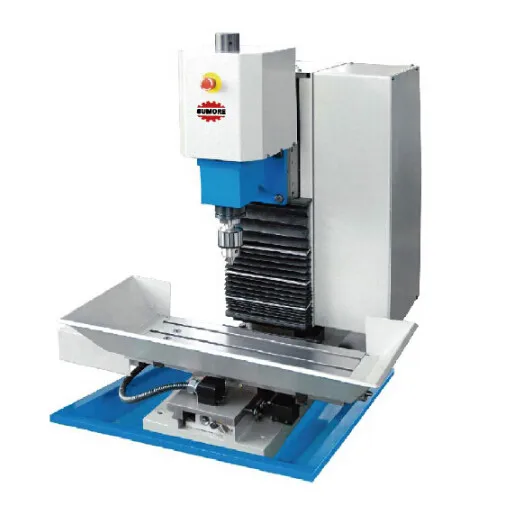

SP2213 milling machines cnc is a small cnc milling machine, with 3*8*35mm T slot, MT2 spindle taper, 400*125mm table size, and 500w motor.
| Model | SP2213 |
| Drilling Capacity | 10 mm |
| Effective Table Size | 400 x 145 mm |
| X Axis Table Travel | 260 mm |
| Y Axis Table Travel | 110 mm |
| Z Axis Head Travel | 180 mm |
| Motor Torque of X Axis | 1.35 N·m |
| Motor Torque of Y Axis | 1.35 N·m |
| Motor Torque of Z Axis | 2.20 N·m |
| Throat Depth | 150 mm |
| T-slot Width | 8 mm |
| T-slot Amount | 3 |
| Positioning Accuracy | 0.01 mm |
| Spindle Taper | MT2 |
| Spindle Speed Range | 100 – 7,000 rpm |
| Motor Power | 500 w |
| Voltage and Frequency | Customerized |
| Overall Dimension (LxWxH) | 570 x 650 x 660 mm |
| Net Weight | 120 kg |
| Packing Size (LxWxH) | 760 x 750 x 785 mm |
| Gross Weight | 150 kg |
| keyword | cnc milling machine |
| Standard Accessories | Optional Accessories |
| Mill Chuck | Rotary Worktable (4th Axis) Package |
| Vice | Clamping Kit |
| Coolant Pump | Quick Vice / Angle Adjustable Vice |
| Oil Tray | Handwheel |
| Wrench Set | Drill Chuck |
| Operating Manual Instruction and Parts List | Boring Cutter with Arbor |
| Metric 2 Flute HSS End Mill Set (6 or 7 pcs) | |
| Engraving Tool Set | |
| Vice (Quick Vice / Adjustable Vice Available) | |
| Base Stand | |
| Computer Stand and Frame | |
| PCMCIA Parallel Card |
