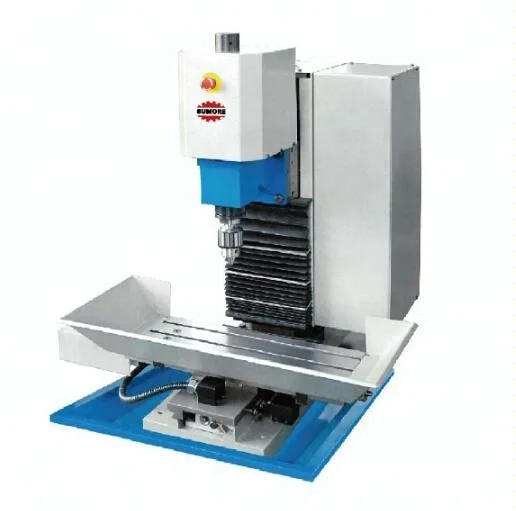

SP2213A cnc milling machine for metal is automatic cnc milling machine for handling metal, with 400*145mm table, 3*12*40mm T slot.
Cnc milling machine for metal, on sale.
Features:
1. Siemens and Chinese operation system for you to choose from.
2. Transparence enclosure is selectable (more suitable for education).

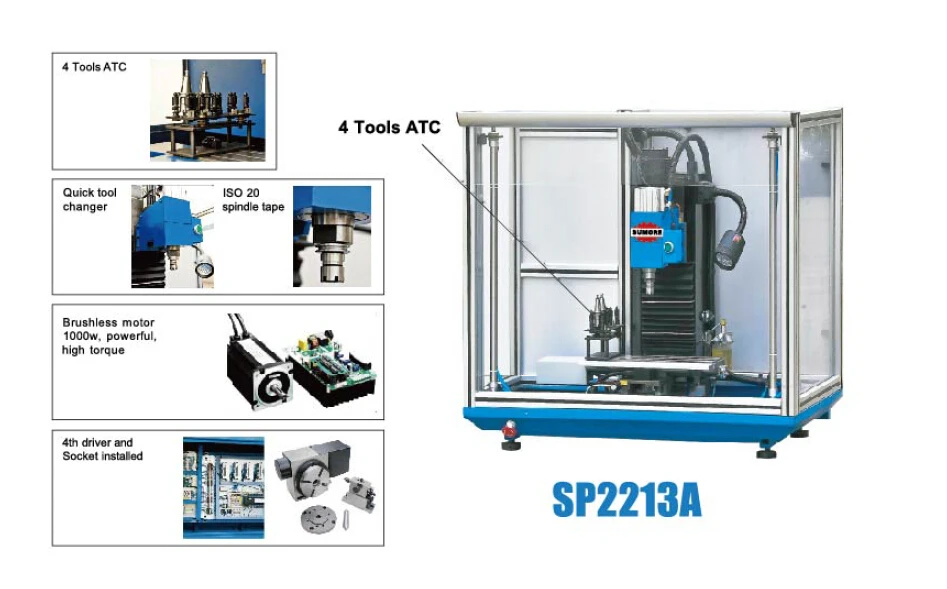

3. 4 station ATC, variety of tools for your choice.
4. Linear guide available for choice.
5. 4th axis for choice.
| Model | SP2215A |
| Effective Table Size | 400 x 145 mm |
| Max. load | 20 Kgs |
| X Axis Travel | 260 mm |
| Y Axis Travel | 152 mm |
| Z Axis Travel | 180 mm |
| Spindle nose to table | 60-240 mm |
| The max. moving speed | 2,000 mm/min |
| Power of mtor X/Y axis | 1.35 Nm |
| Power of mtor Z axis | 3.1 Nm |
| T-slot Distance | 40 mm |
| T-slot Width | 12 mm |
| T-slot Amount | 3 |
| Positioning Accuracy | 0.015 mm |
| Restoration Accuracy | 0.010 mm |
| Spindle Taper | ISO20 |
| Spindle Speed Range | 100 – 5,000 r/min |
| Motor Power of Spindle | 1,000 W |
| Tool Number | 4 |
| Max. tool diameter | 10 mm |
| Max. tool length | 110 mm |
| Max. tool weight | 0.5 Kg |
| Time of tool changing | 10 s |
| Pneumatic supply | 0.6 MPa |
| Voltage and Frequency | Customerized |
| Packing Size (LxWxH) | 1170 x 960 x 1,100 mm |
| Net Weight | 280 kg |
| Gross Weight | 340 kg |
| Keywrod | mini cnc milling machine |
