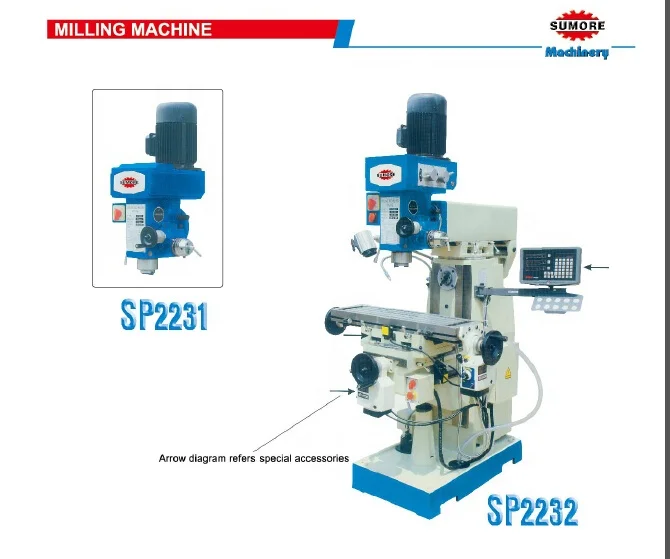

Model |
SP2231 |
SP2232 |
|
Max. drilling dia. |
50 mm |
50 mm |
|
Max. horizontal milling dia. |
100 mm |
100 mm |
|
Max. vertical milling dia. |
25 mm |
25 mm |
|
Max. boring dia |
120 mm |
120 mm |
|
Max. tapping dia. |
MT16 |
MT16 |
|
Spindle taper |
ISO30, R8,MT4 |
ISO30, R8,MT4 |
|
Spindle Speed Range |
V:230-1825 (8) H:60-1350 (8) |
V:115-1750 (8) H:60-1350 (8) |
|
Spindle travel |
120 mm |
120 mm |
|
Table size |
800*240 mm |
800*240 mm |
|
Table travel |
400*230*350 mm |
400*230*350 mm |
|
Net Weight |
850 kg |
850 kg |
|
Gross Weight |
1000 kg |
1000 kg |
|
Packing size |
1200×1300×2220 mm |
1200×1300×2220 mm |
|
Standard Accessories |
Optional Accessories |
|
Drill Chuck |
Automatic Worktable Feeder |
|
Wrench Set |
Spindle Speed Digital Readout |
|
Toolbox and maintain tools |
Cutting Depth Digital Readout |
|
Oil Tray |
Clamping Kit |
|
Manual Instruction & Parts List |
Mill Chuck |
|
Milling Set |
|
|
Tapping Set |
|
|
Boring Set |
|
|
Swivel Worktable |
|
|
Vice |
|
|
Stand |
|
|
Work Light |
