Max.horizontal milling dia.：100mm
Max.vertical milling dia：25mm
Max.boring dia：120mm
Max.tapping dia：M16
Max.distance from spindle nose to worktable:0-420mm

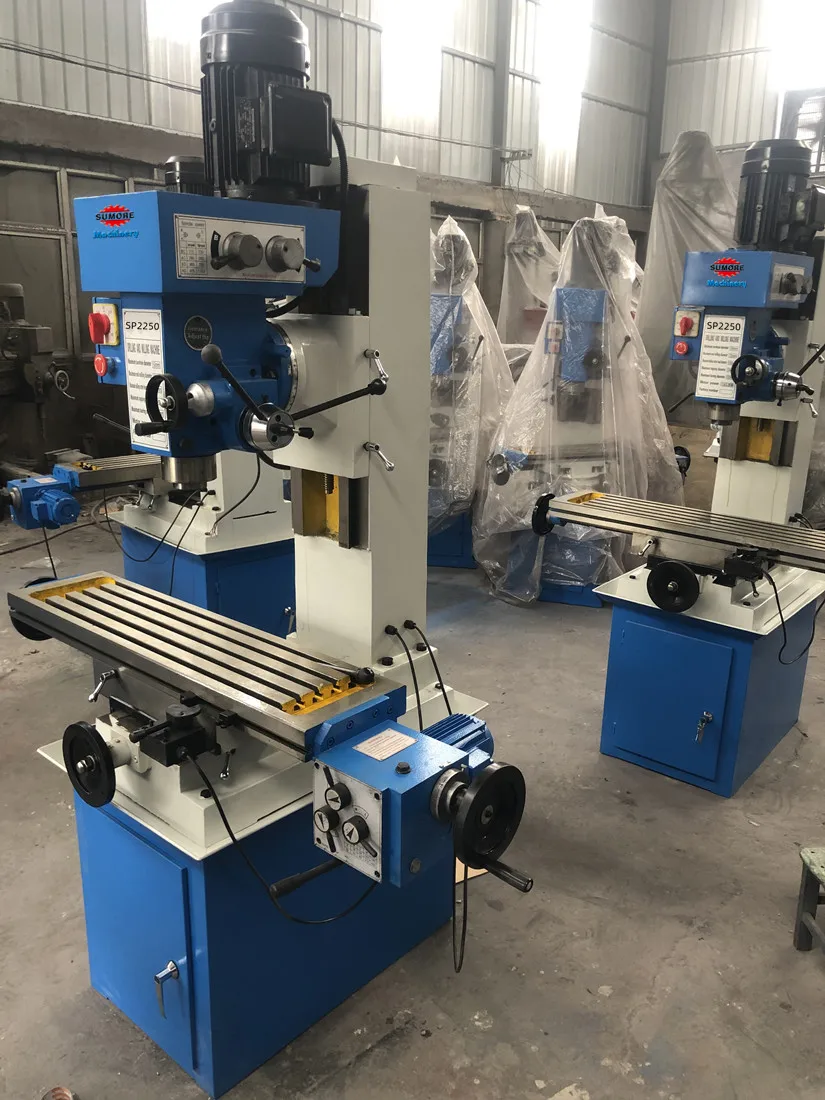

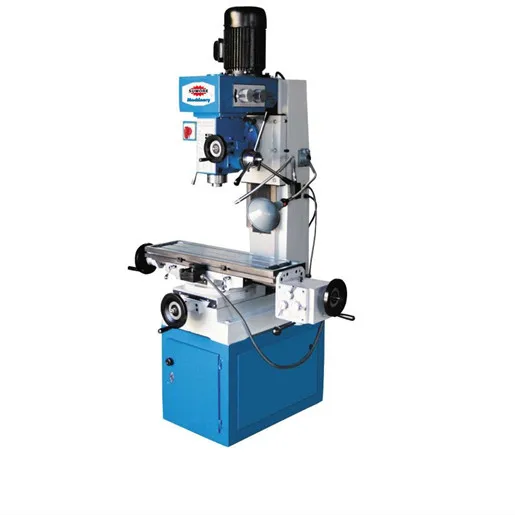

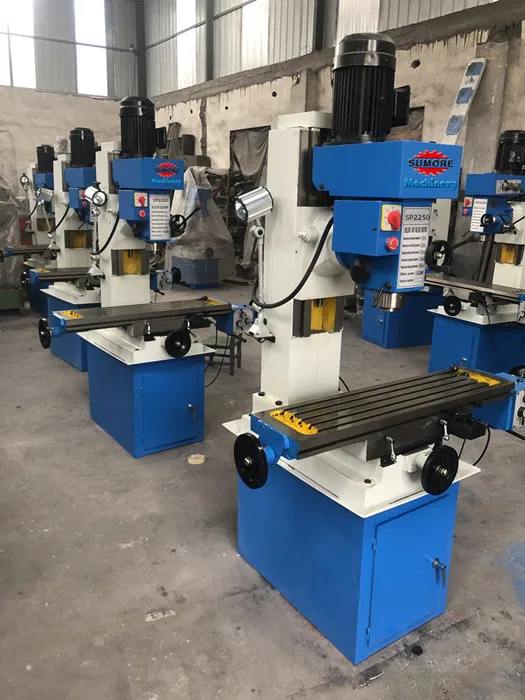

SP2250 Vertical Drilling and Milling Machine China Hot Sale Small Turret Manual Metal Milling Machine SUMORE
SP2250 turret milling machine is one of our most economic and durable milling machine. It is new condition not used vertical turret milling machine. And it is medium in size and delicate in design. This high quality vertical turret milling machine is made in China. The main features are as below:
| Model | SP2250 |
| Max.drilling dia. | 50mm |
| Max.horizontal milling dia. | 100mm |
| Max.vertical milling dia. | 25mm |
| Max.boring dia. | 120mm |
| Max.tapping dia. | M16 |
| Max.distance from spindle nose to worktable | 0-420mm |
| Spindle taper | MT4,ISO30 |
| Spindle speeds range | (8step)115-1750rpm |
| Spindle travel | 120mm |
| Table size | 800×240mm |
| Table travel | 400×230X380mm |
| Main motor power | 0.85/1.5kw |
| N.W./G.W. | 500/600kg |
