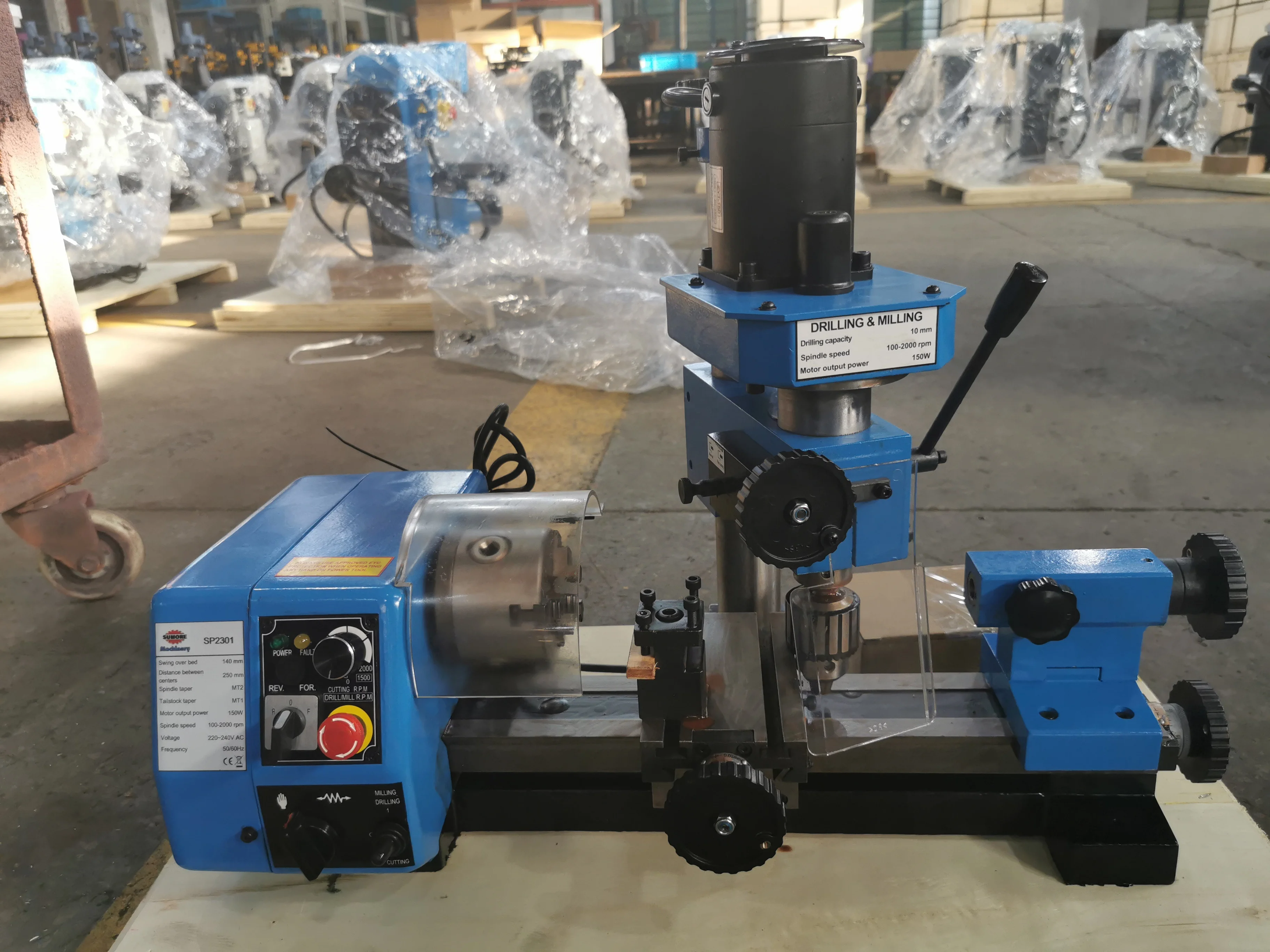

Looking for excellent multi-function bench lathe of turning,threading,cutting,milling combination machine? Check out our  generous range of various metal-working appliations from bench lathe, milling machine, band saw, drilling machine,surface grinder to the spareparts & accessories related from Sumore Machinary. multi-purpose lathe SP2301 Metal cutting belongs to one of our most economic manual Metal cutting multi-purpose lathe machine,compare to normal larger gear head lathe,it has unique advantage,such as smaller size,lighter weight,lower noise,high accuracy and so on. It’s relatively simply structure also remain in full rigid and high strength hardened steel base construction.

Model	SP2301
Cutting
Swing over bed	140mm
Distance between centers	250mm
Hole through spindle	10mm
Spindle taper	MT2
Tailstock taper	MT1
Spindle speed	100-2000rpm±10%
Cross slide travel	50mm
Range of threads Metric	0.5-1.25mm(5 thread pitches)
Imperial	16-24 TPI(5 thread pitches)

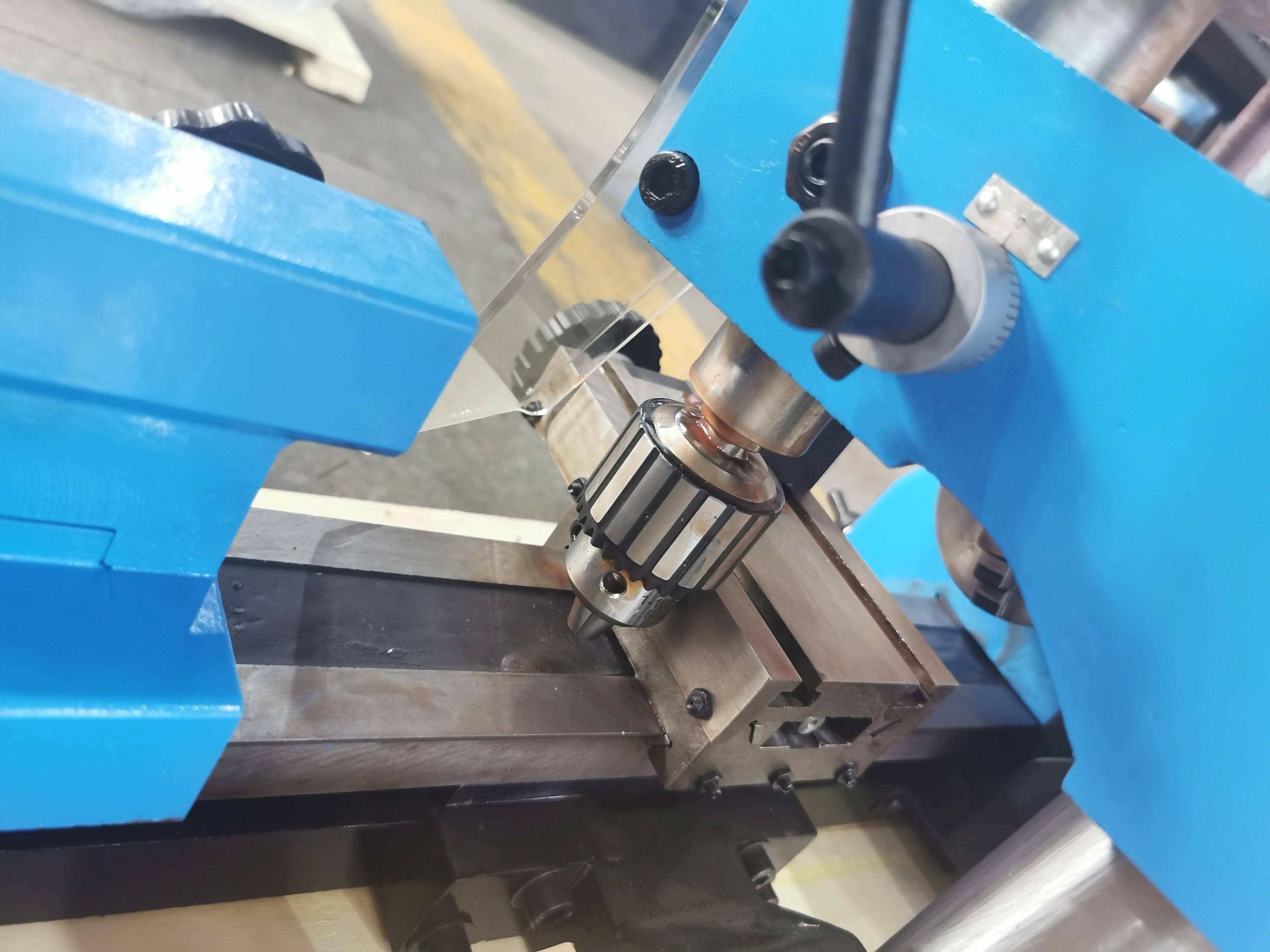

Drilling and Milling
Max. drilling/milling capacity	10mm
Travel of drilling/milling spindle	30mm
Spindle speed Low Range	100-1000±10%rpm
High Range	100-2000±10%rpm
T-slot	8mm
Motor output power	150W
Overall dimension(LxWxH)	620x330x570mm
Net/Grosss weight	45/51kg
Packing size(LxWxH)	690x430x615mm
Loading	160 pcs/20″
