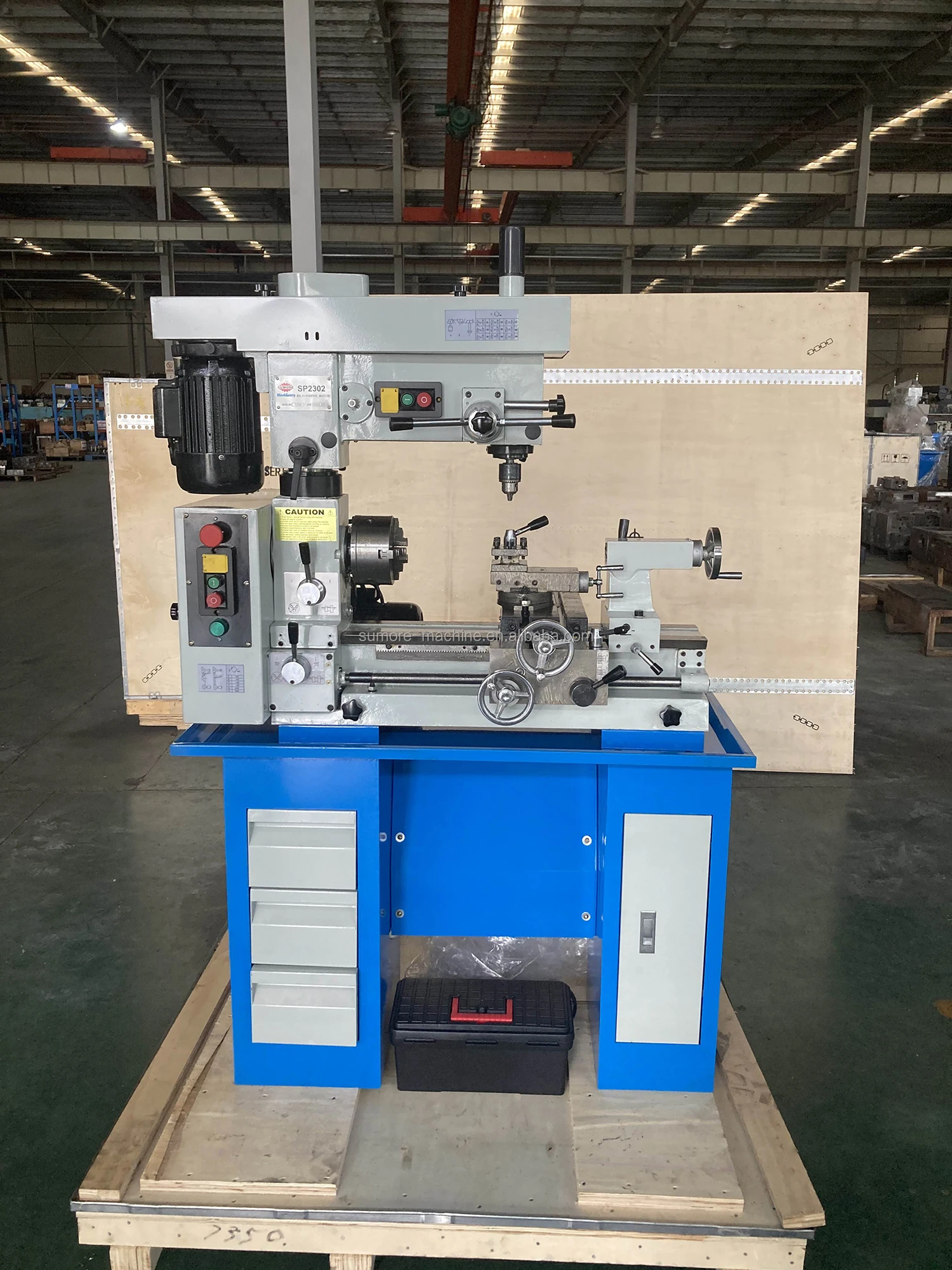

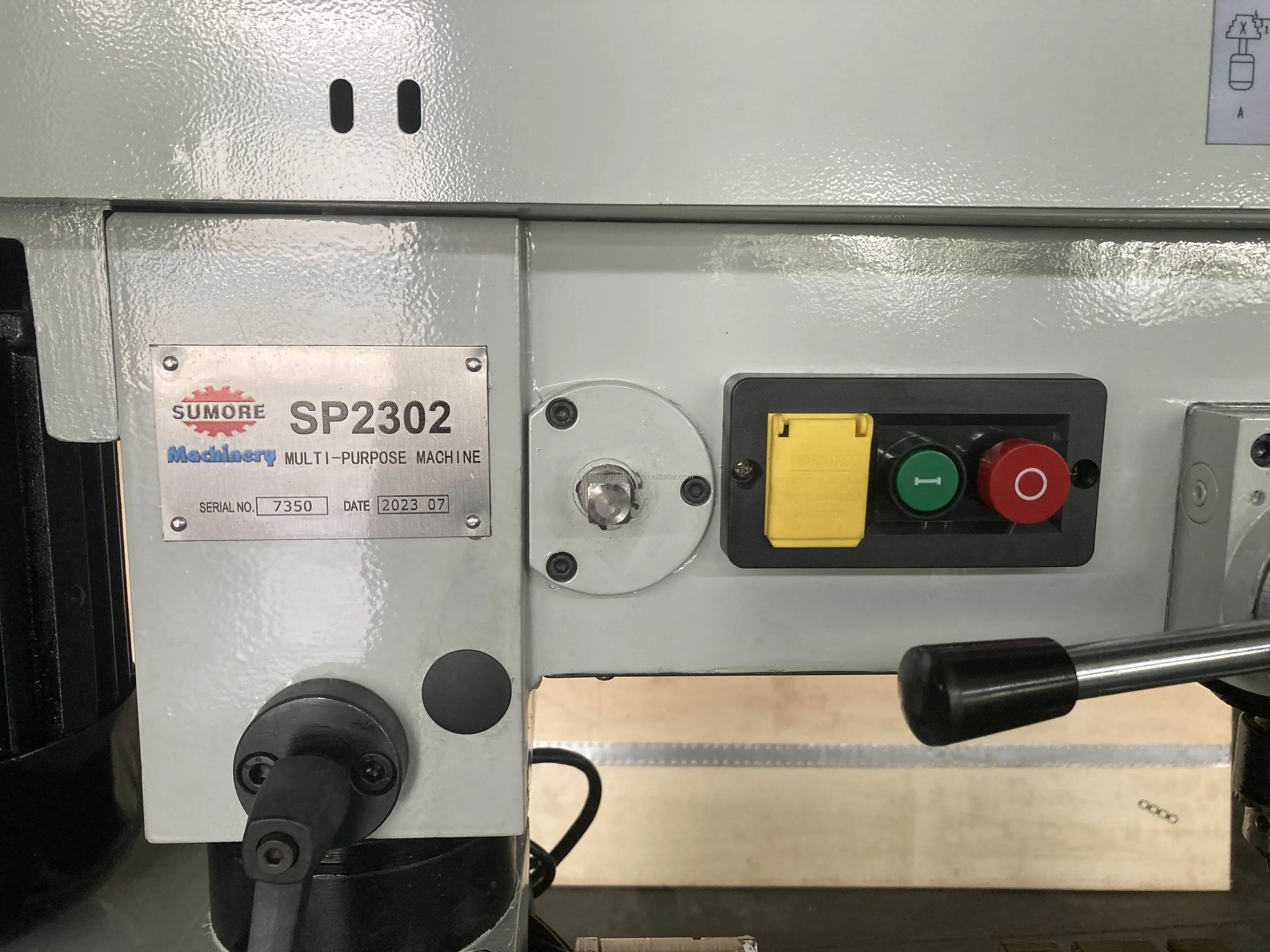

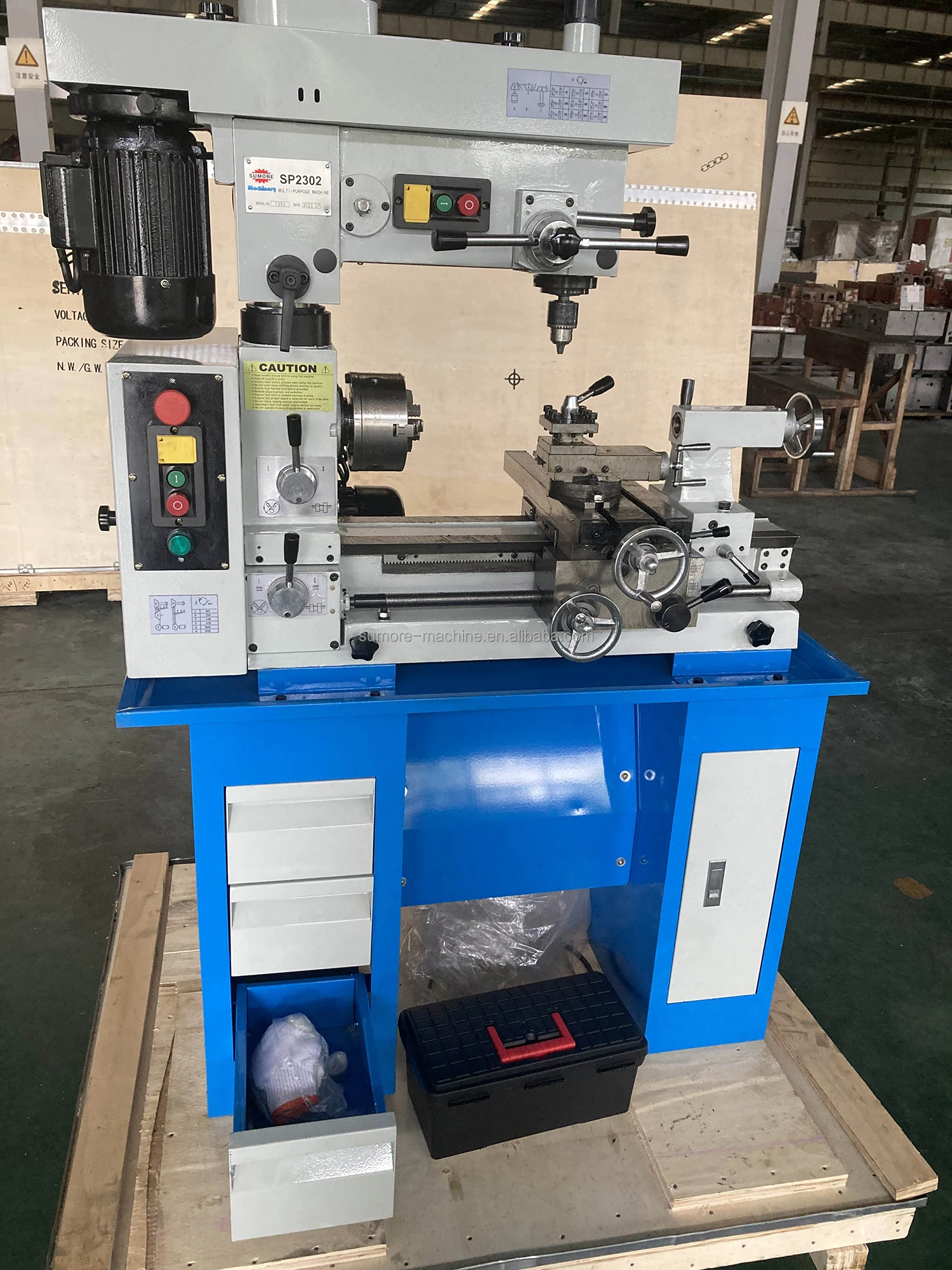

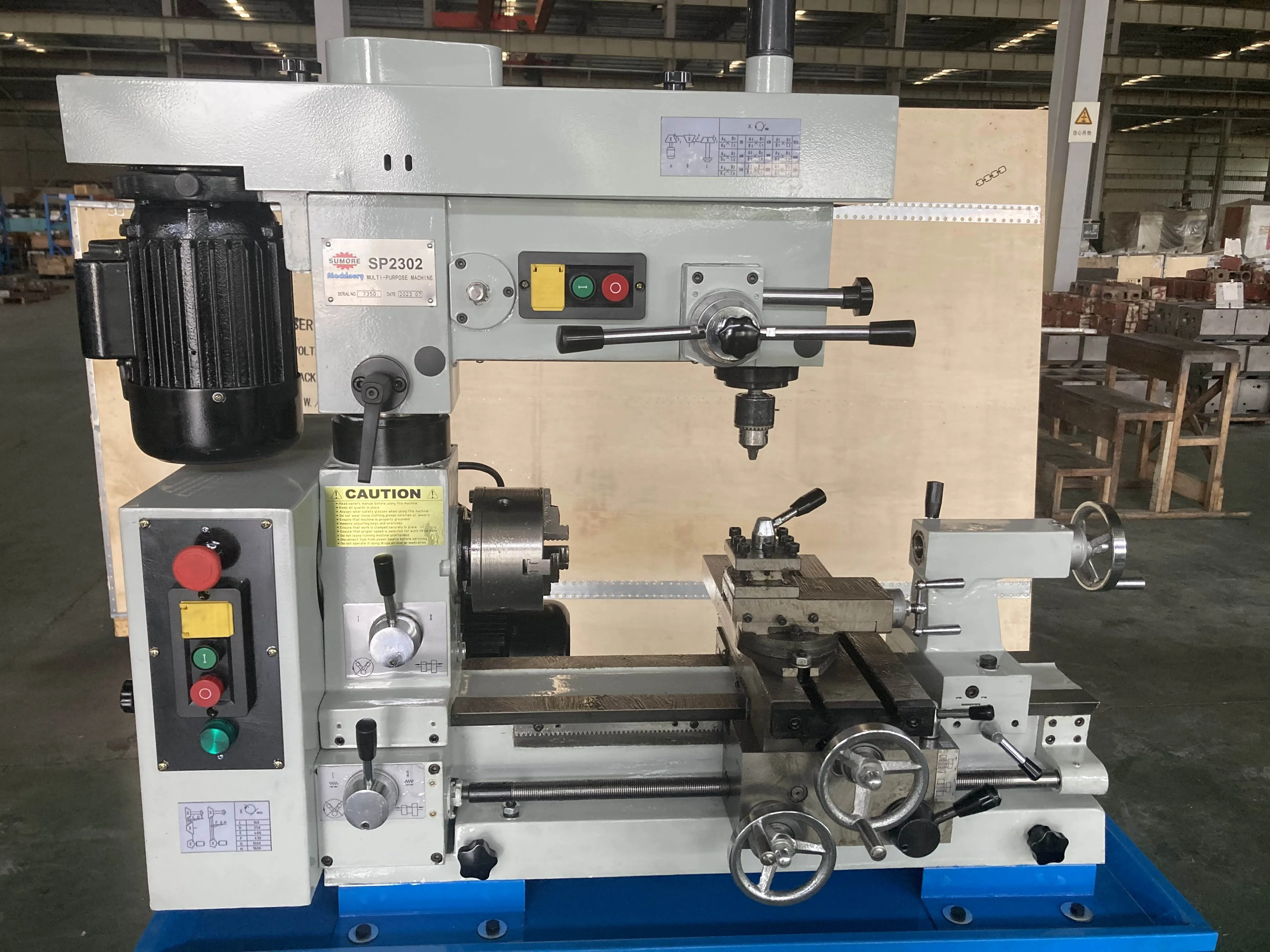

SP2302 Multi-purpose Lathe

Quick Details

Combo lathe SP2302 is with 300mm swing over bed and 150*425mm table size.

Descriptions

SP2302 330mm Swing Mill Drill Lathe Combo Machine Lathe Milling Machine Combo 26mm Bore Metal 3 In 1 Combo Lathe Milling Drilling Machine SUMORE !!!
Main features: 1) Compact,versatile combination machine 2) Has the purposes of turning, milling, drilling, boring & thread-cutting. 3) Power-driven for table in milling. 4) Cam clamping chuck. 5) Has the devices of safety interlock & an overload safety. 6) Lengthened drilling/milling box, 360° rotation in veritical plane. 7) Adjustable height drill/mill head increase capacity. 8) Large MT4 spindle bore. 9) Spindle is supported by high precision bearing. 10) Headstock is constantly oiled during operation. 11) High precision chuck.
Specification
Model
SP2302
Swing over bed
300mm
Swing over cross slide
170mm
Distance between centers
500mm
Taper of spindle bore
MT4
Spindle bore
26mm
Spindle speed
160-1600rpm
Metric threading
0.5-3mm
Inch threading
40- 11TPI
Worktable size
150x425mm
Travel of cross slide
200mm
Travel of compound slide
80mm
Tailstock quill travel
40mm
Taper of tailstock quill
MT3
Motor for lathe
550W
Driling capacity
20mm
End milling capacity
25mm
Face milling capacity
63mm
Spindle speed
315-2000rpm
Spindle taper
80mm
Spindle travel
320mm
Spindle nose to table
MT3
Mill-drill head swivels
360°
Motor for dril/mill
550W
Net weight
230kg
Packing Size
1170x580x980mm
combo lathe
combo lathe
