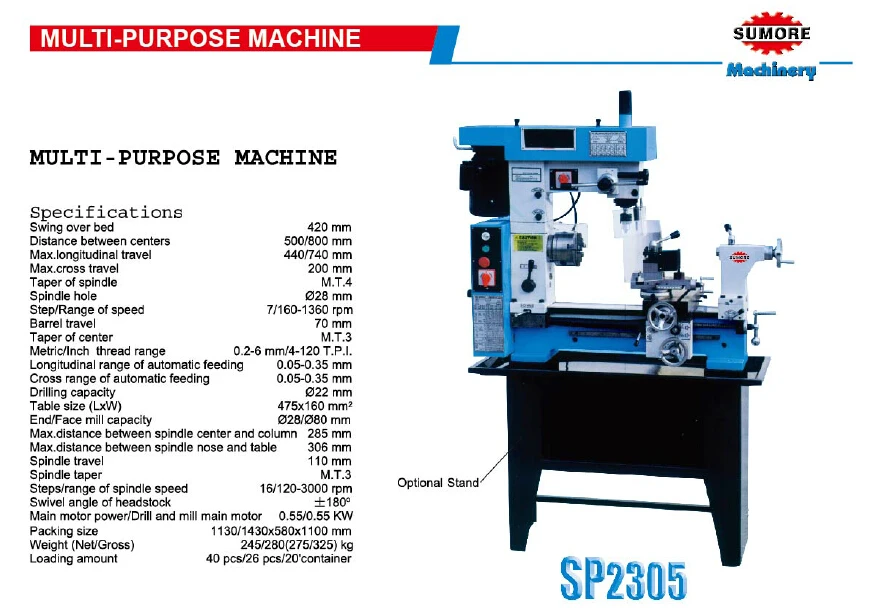

SP2305 Multi-purpose Machine

Quick Details

SP2305 multi-purpose machine is with swing over bed: 420mm, drilling capacity:22mm, easy operation for users.


1.Function: cutting ,drilling, milling etc 2.Mass production of a variety of small parts and high-speed machining of complex parts, diversity processing; 3.Complex process can be done in one time 4.Near silent running, integral splash guard 5.Metric and imperial thread cutting 6.Full range of accessories available 7.Converts to a multi-purpose machine with the milling attachment 8.High Precision for Model Engineering 9.Easy Operation & Convenient Reparations


Swing over Bed 420 mm
Distance Between Centers 500 / 800 mm
Spindle Bore 28 mm
Spindle Taper MT4
Range of Spindle Speeds 160 – 1,360 rpm
Compound Travel 70 mm
Cross Slide Travel 200 mm
Range of Imperial Threads 4 – 120 TPI
Range of Metric Threads 0.2 – 6.0 mm
Longitudinal Feeding Speed Range 0.05 – 0.35 mm/rev
Traverse Feeding Speed Range 0.05 – 0.35 mm/rev
Motor Power 550 w
Power Supply Customerized
Drilling & Milling
Drilling Capacity 22 mm
End Milling Capacity 28 mm
Face Milling Capacity 80 mm
Distance from Spindle Nose to Worktable 306 mm
Distance between Spindle and Columns 285 mm
Spindle Speed Range 120 – 3,000 rpm
Spindle Travel 110 mm
Spindle Bore MT3
Head Tilt Angle 180° Left and Right
Motor Power 550 w
Power Supply Customerized
Whole Machine
Packing Size (LxWxH) 1,130 / 1,430 x 580 x 1,100 mm
Net Weight 245 / 275 kg
Gross Weight 280 / 325 kg
  3 In 1 Combo Machine HQ800 Horizontal and Vertical Lathe Milling and Drilling Machine SP2305 Lathe Mill SUMORE
