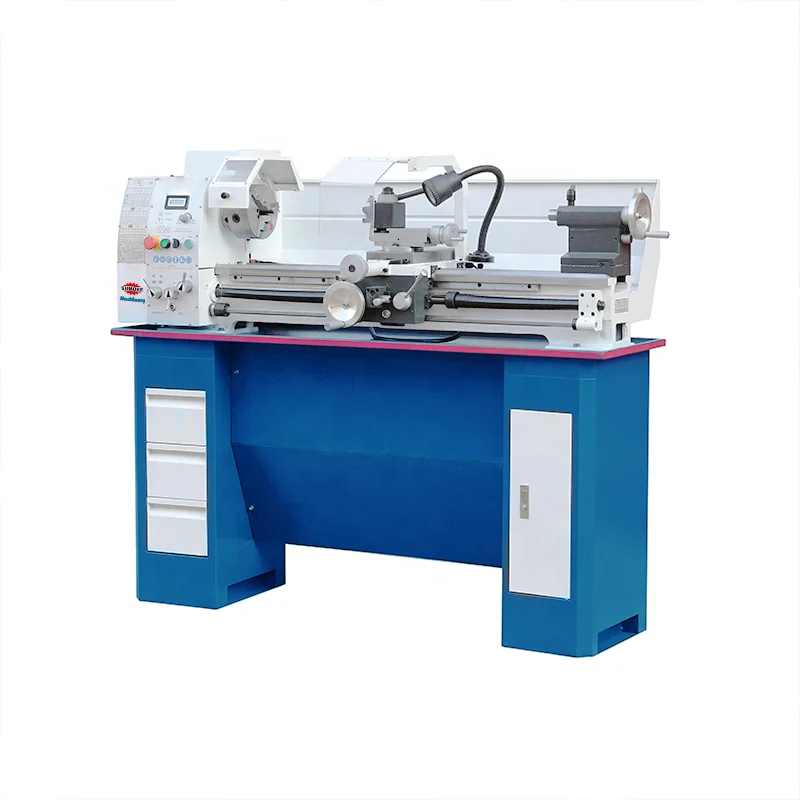

SP2312-II Bench Lathe

Quick Details

Swing Over Bed:320mm

Center Distance: 900mm

Motor Power: 1.5KW

Descriptions

Cheap price lathe SP2132-II low cost 320mm swing manual Lathe cjm320 tornos variable speed bench lathe 38mm bore Sumore

SP2132 brand new manual lathe machine for hobby is widely used conventional lathe machine. Features or advantages of lathe machine are as below:
1.Used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread.Processing of precision parts, the sample processing and processing of the model can also be used.
2.After high frequency quenching process and precision grinding of high-quality cast iron bed.Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning 3.Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
4.Chuck guard is with automatic power off.Brushless motor is available.
5.Power supply could be customized 110v/220v/380V.
6.All machines have to pass the checklist of the machine precision before shipment
Model
SP2132-II
Max. Swing over bed
320mm
Max. Swing over cross slide
200mm
Distance between center
900mm
Spindle bore diameter
38mm
Bed width
180mm
Taper of spindle bore
MT5
Motor
1.5kw
Spindle speed
125-2000rpm
Number of spindle speeds
6
Metric threads range
18 kinds 0.2-3.5mm
Inch threads range
21 kinds 8-56T.P.I
Cross feeds range
0.07~0.52 mm/rev
Longitudinal feeds range
0.017~0.25mm/rev
Tool post type
4-way
Top slide travel
85mm
Cross slide travel
80mm
Range of inch threads
21 kinds 8-56TPI
Taper of tailstock quill bore
MT3
Packing size
1650x750x700mm
Weight
260/310kgs
