SP2512 surface grinder

Surface grinding is used to produce a smooth finish on flat surfaces. It is a widely used abrasive machining process in which a spinning wheel covered in rough particles (grinding wheel) cuts chips of metallic or nonmetallic substance from a workpiece, making a face of it flat or smooth. Sumore surface grinder has characteristics as excellent structure, easy operation, large range of speed regulation, stable operation, no noise, high efficiency,and widely recognized by customers after the launch.The grinder is widely used in various industries’ small and special-shaped components as glasses accessories, textile machine components, electronic parts, etc

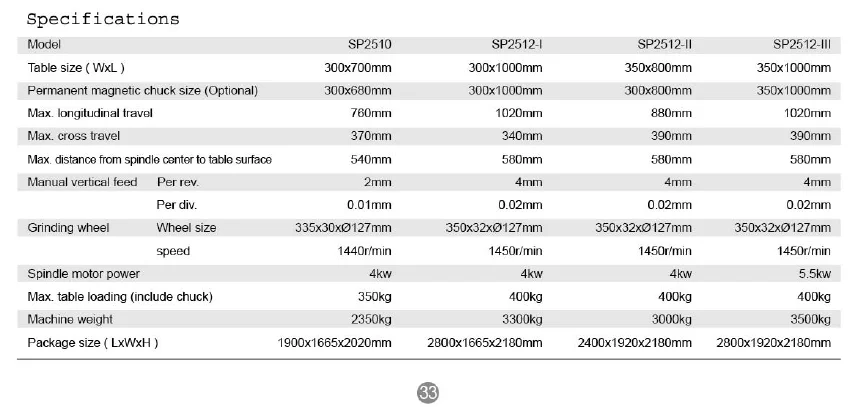

Specification

Model	SP2512-I	SP2512-II	SP2512-III
Table size(LxW)	300X1000mm	350X800mm	350x1000mm
Permanent magnetic chunk size(Optional)	300x1000mm	350x800mm	350X1000mm
Max. longitudinal travel	1020mm	880mm	1020mm
Max. cross travel	340mm	390mm	390mm
Max. distance spindle centre to talbe surface	580mm	580mm	580mm
Mannul vertical feed Per rev	4mm	4mm	4mm
Mannul vertical feed Per div	0.02mm	0.02mm	0.02mm
Grinding wheel size	350x32xØ127mm	350x32xØ127mm	350x32xØ127mm
Grinding wheel speed	1450/min	1450/min	1450/min
Spindle motor power	4kw	4kw	5.5kw
Max.table loading(include chuck)	400kg	400kg	400kg
Machine weight	3300kg	3000kg	3500kg
Packing size(LxWxH)	2800x1665x2180mm	2400x1920x2180mm	2800x1920x2180mm
