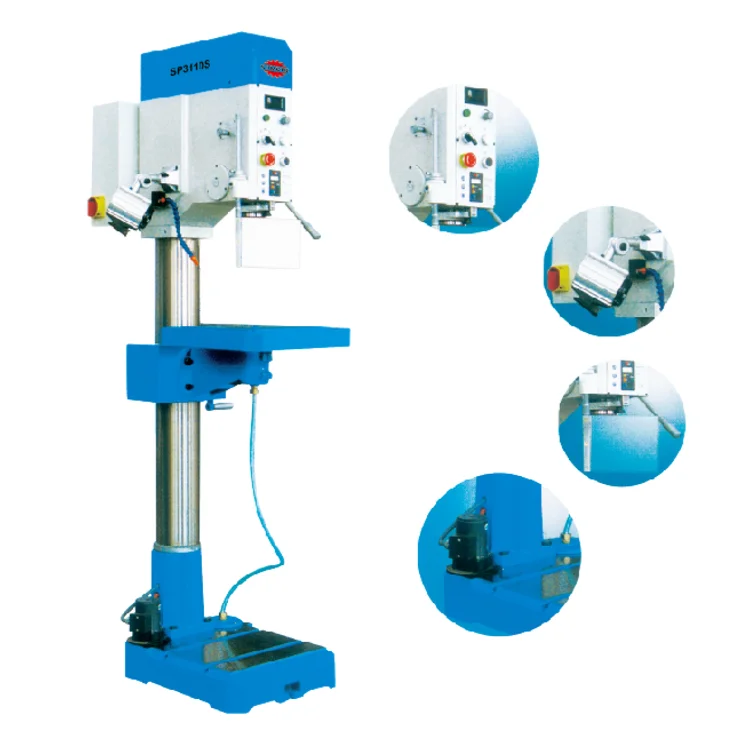

SP3110S drilling capacity is with 32mm drilling capacity, and 320*320mm table size.
Features:
Exceptional SUMORE Quality
Individual Accuracy Test with Each Machine
Robust Construction & Stable Performance
Brushless Motor & Variable Spindle Speed
Fine & Smooth Feeding Movement on Every Directions
High Precision for Model Engineering
Changable Table Length for Different Workpieces
Optional Spindle Speed & Cutting Depth Digital Readout
Optional Automatic Longitudinal Feeder
Specifications:
| Model | SP3110S |
| Max. Drilling Capacity | 32 mm |
| Spindle Stroke | 115 mm |
| Distance from spindle axis to generating line of column | 290 mm |
| Max. distance from spindle nose to working surface of work table | 790 mm |
| Max. distance from spindle nose to working surface of base plate | 1,300 mm |
| Max. adjustment of work table and table rost | 790 mm |
| Spindle bore taper | MT3 |
| Spindle Speed L | 55-350 r.p.m |
| W | 350-2,300 r.p.m |
| Diameter of column | Φ120 mm |
| Effective working area of table | 320×320 mm |
| Effective working area of base plate | 380*380 mm |
| Dimension of T-slot of table and base plate | 2-12 mm |
| Swivel of table and table rest | ±45 |
| Motor Power | 1.1 KW |
| Voltage | Customized |
| Pump motor power | 0.06 KW |
| Net Weight | 310 kg |
| Packing Size (LxWxH) | 900*590*1980mm |
| Gross Weight | 360 kg |
