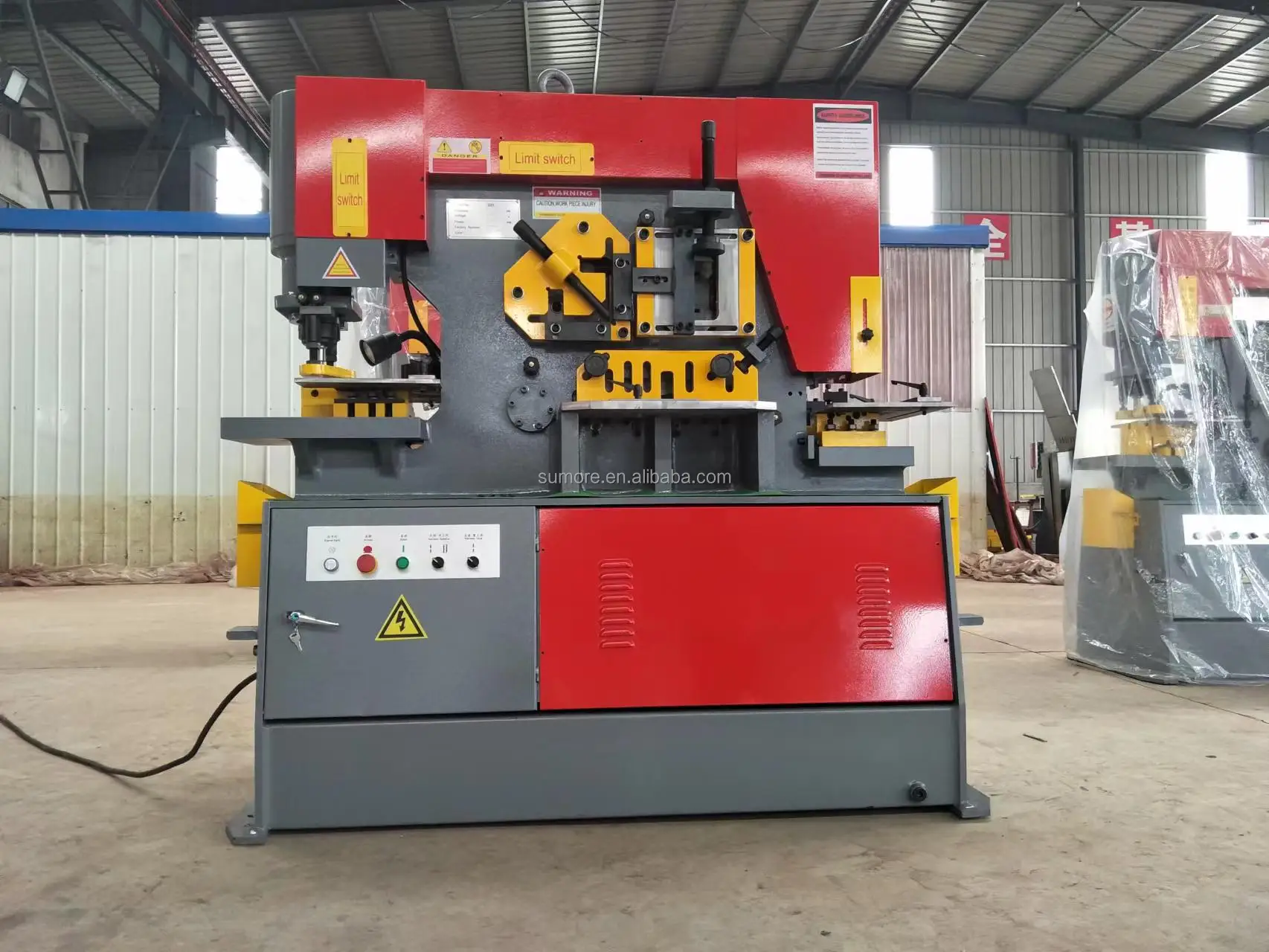

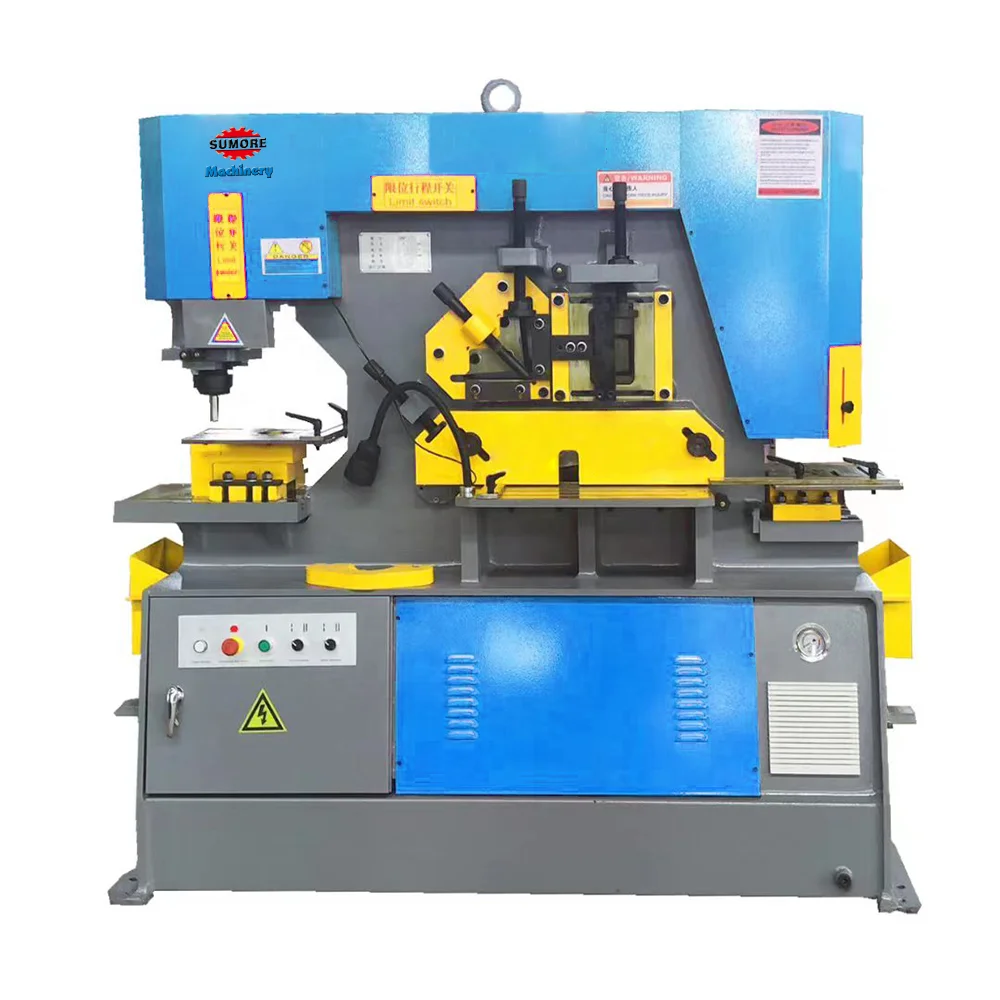

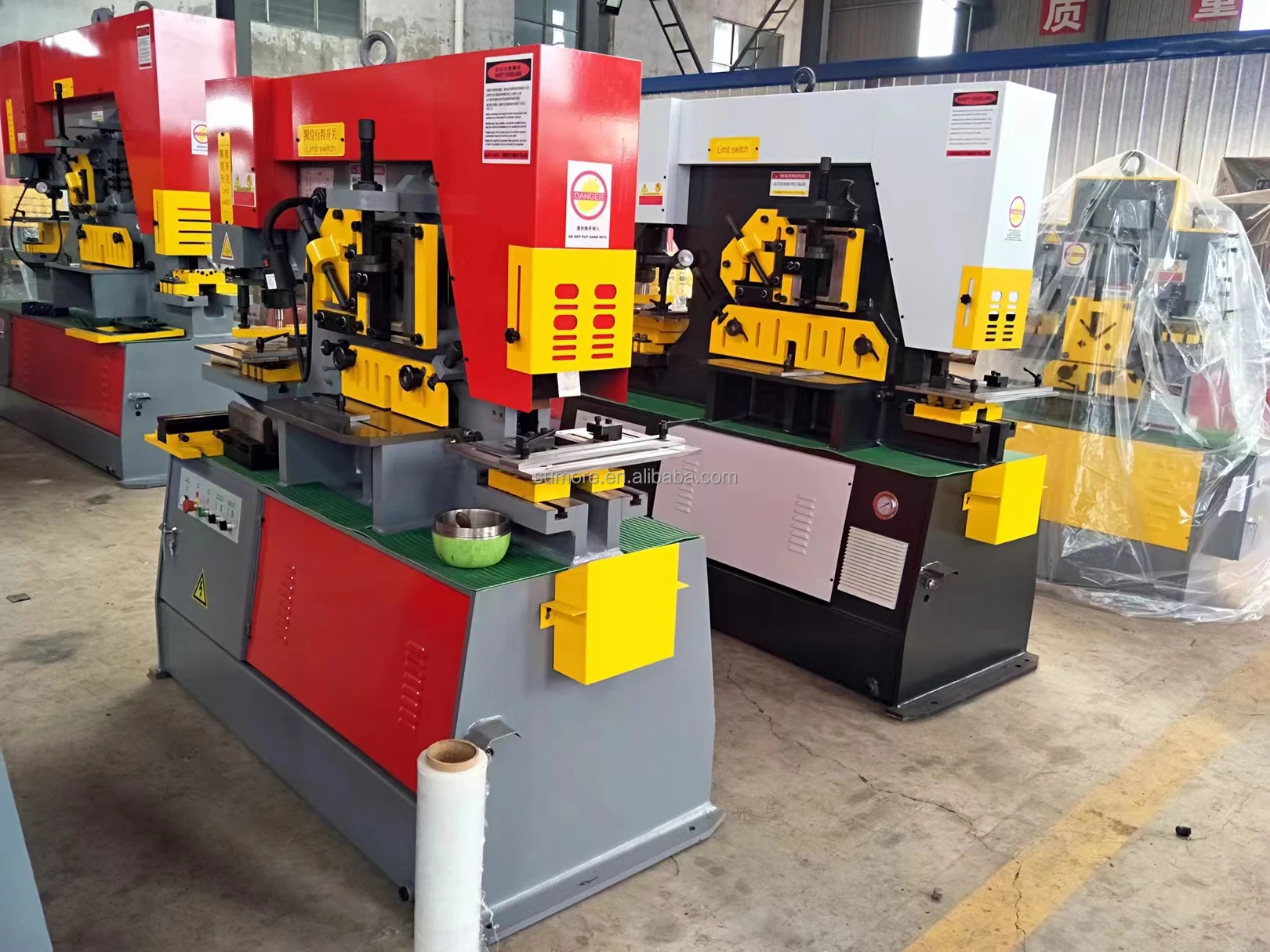

Hydraulic Ironworker SP35Y Series has combined function. It is used for punching and shearing for plates, squre steel, round steel, channel steel, angle steel, I-Beamnd other kinds of steel.

Advantages:

All of our Q35Y Series multi-function hydraulic ironworker in under high quality and safety protection in Euro standard, we have CE Certification.

Specification

Model		Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
Pressure	ton	55	75	110	140	200	250
Max.cutting thickness	mm	16	20	25	30	35	40
Plate strength	N/mm2	≤450	≤450	≤450	≤450	≤450	≤450
Cutting angle	°	7°	8°	8°	8°	8°	8°
Cutting size of one stroke	mm	16X250	20X330	25X330	30X355	35*400	40*400
Cutting size of one stroke	mm	8X400	10X480	16X600	20X600	25*700	30*750
Ram stroks	mm	80	80	80	80	100	100
Number of strokes	/min	8	8	6	6	8-24	8-24
Throat depth	mm	300	355	400	600	600	600
Punching thickness	mm	16	20	25	26	35	35
Max.Punching diameter	mm	25	30	35	38	40	45
Power of main motor	kw	4	5.5	7.5	11	15	18.5
Overall dimensions	L-mm	1640	1860	2355	2680	2800	3000
Overall dimensions	W-mm	730	800	960	1040	1160	1440
Overall dimensions	H-mm	1770	1900	2090	2300	2400	2450
Weight of machine	KG	1600	2000	4800	6800	9200	12800

Steel category	Round Bar	Square Bar	Equal Angle	I-iron	Channel steel
			90° Shearing
Q35Y-16	45	40×40	125×125×12	126×74×5	126×53×5.5
Q35Y-20	50	50×50	140×140×12	160×86×6	160×60×6.5
Q35Y-25	60	50×50	160×160×14	200×102×9	200×75×9
Q35Y-30	65	55×55	180×180×16	280×124×10.5	280×86×11.5
Q35Y-40	75	60×60	200×200×16	320×134×13.5	320×92×12
Q35Y-50	80	65×65	200×200×20	360×140×14	360×100×13

Product detail pictures

A electrical controlled 3-foots rear stop is a standard fitting. This stop features safety and reliability. Larger contact button ensures max. production efficiency.

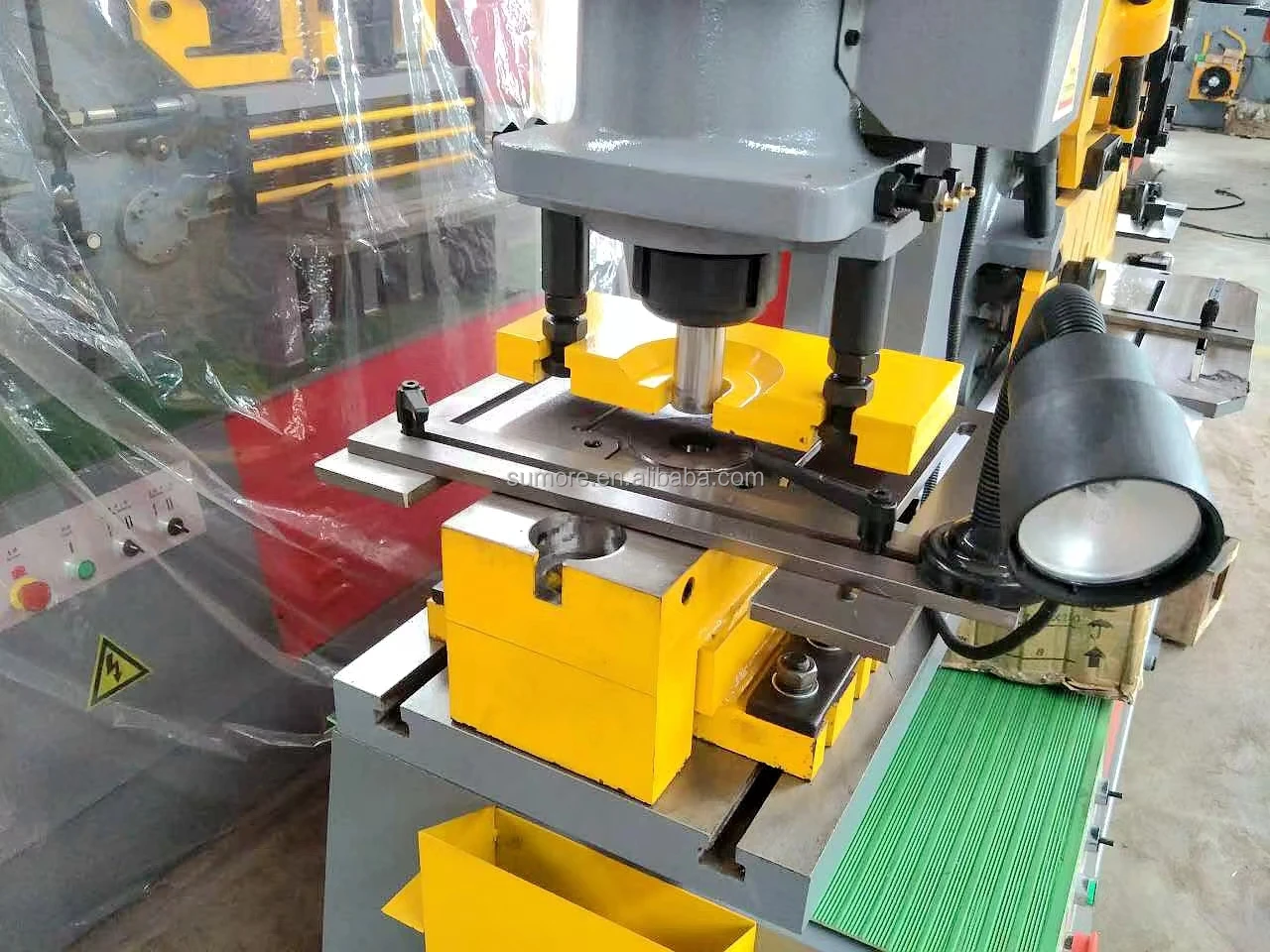

Punching position: Discharging device is equipped with large-scale of visualization window. Rotatable design is easy of operation. Two pieces of large stop plates are parts of standard fittings.

Notching position: Unique design of electrical interlock during shearing of angle/flat steels ensures the safety protection of operator. Ventilated protecting device ensures the max. viewing range of operator.

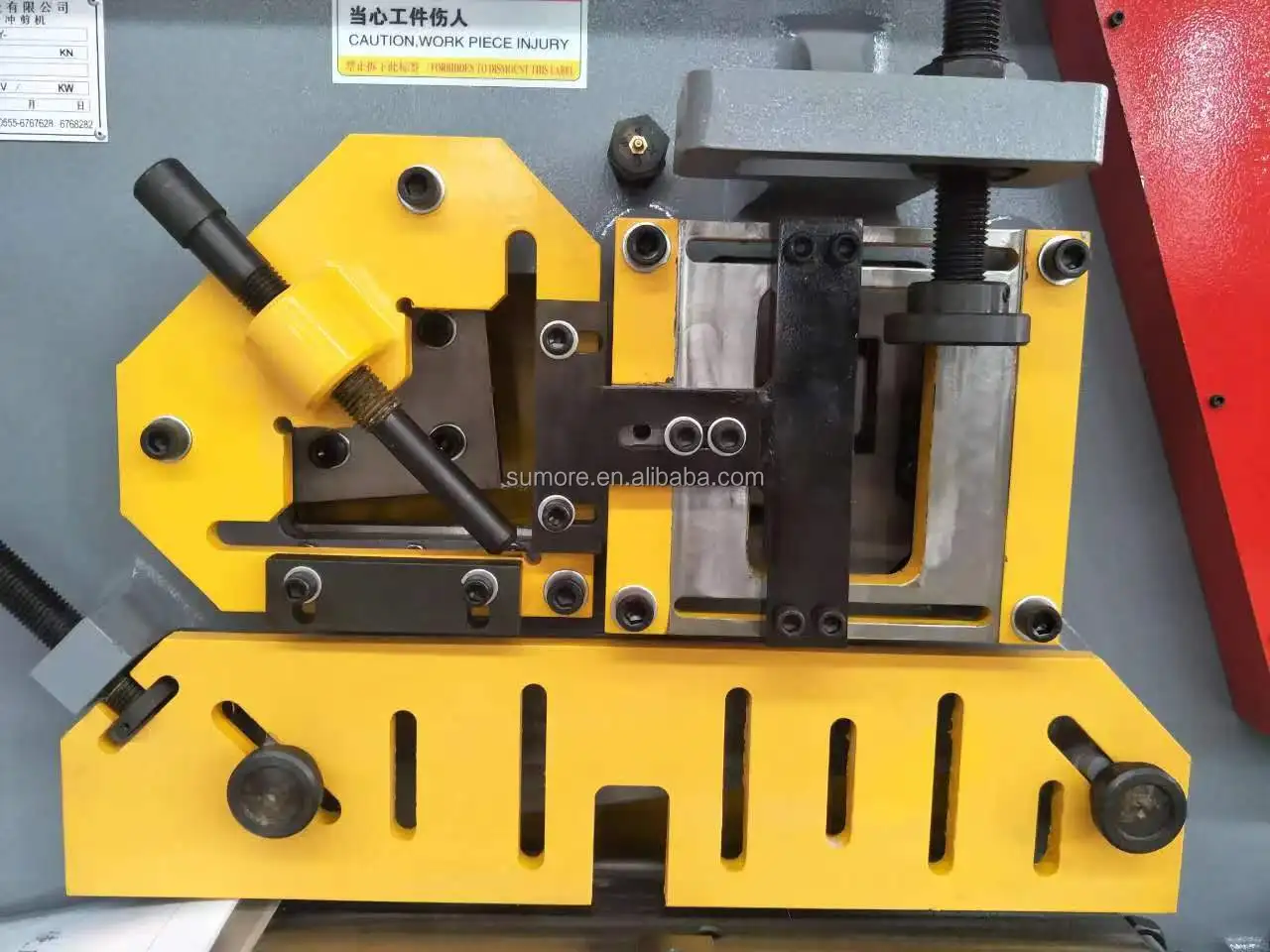

Angle steel sheared position:

Angle steel can be sheared at 45 degree from the upper or lower end.

Shearing of flat steel:

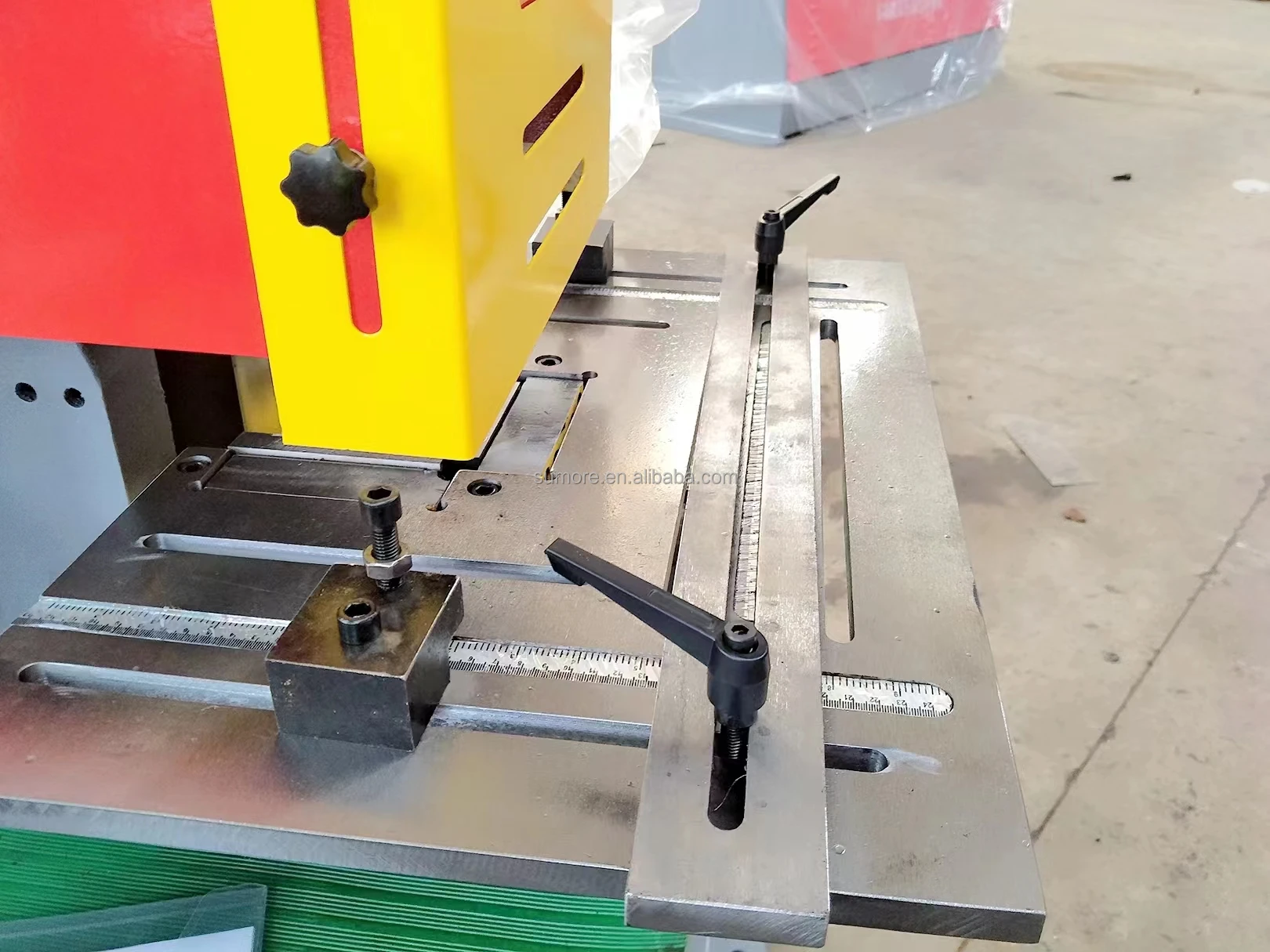

Easily adjustable clamping device ensures the accurate shearing. The scaled square stop of 15’’ is as a standard fitting.

High quality of shearing blade against deformation with the bottom of four-side usable knife edge. Besides, there is a bolt inside which is easy of adjusting the clearance of clamping.

Punching Position:

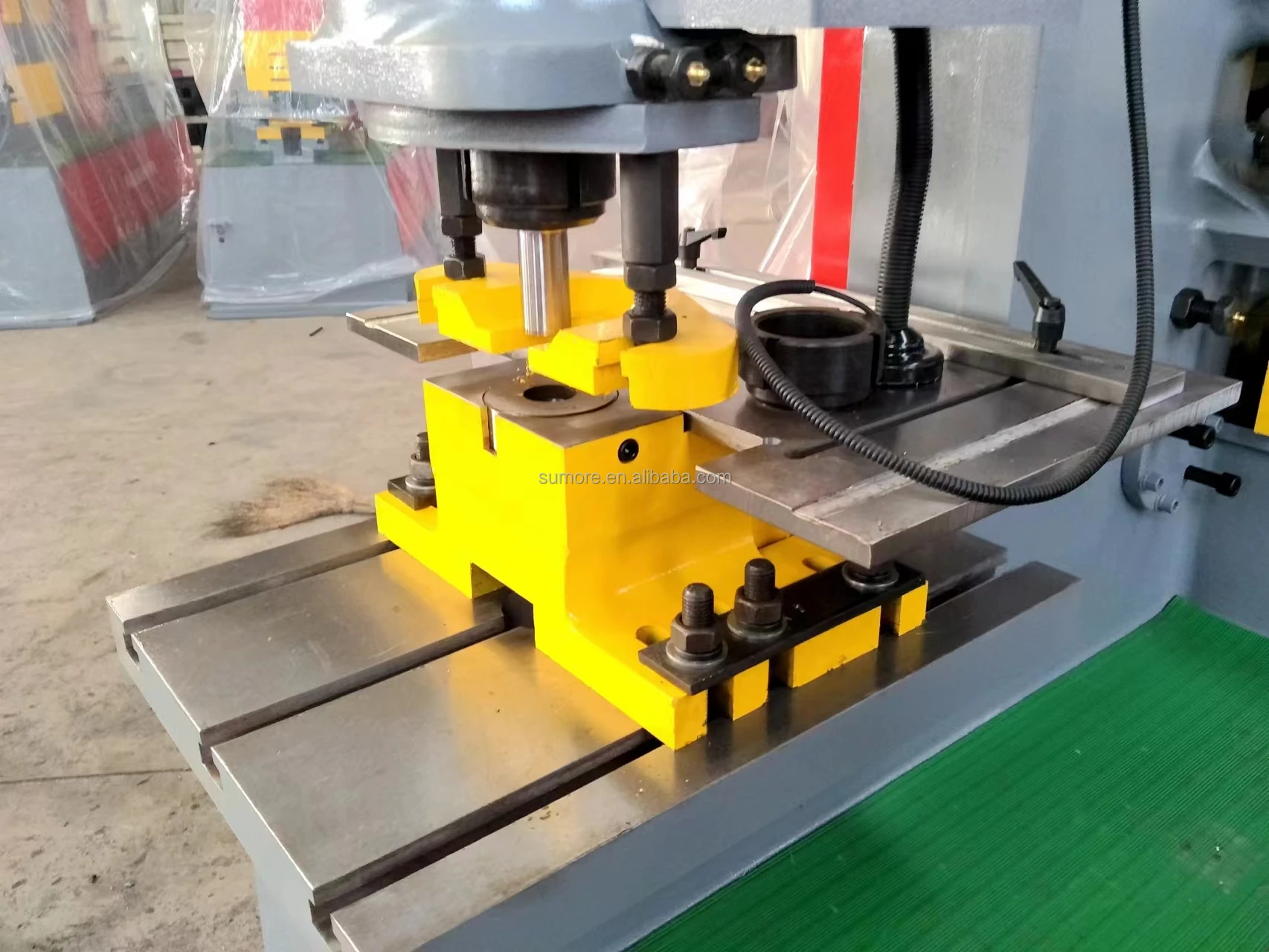

Different spec. of top and bottom moulds can be offered. Unique structure can punch holes in the large angle steel and channel steel.

Rhombus blade can ensure high quality of shearing. That is min. deformation and loss of shearing materials.

Round steel, square steel have many different sizes of shearing holes. Adjustable clamping device is easy of shearing different sizes of formed steel, channel steel and I iron. Also, different blades can be selected.

Large-size of locknut; Precise square steel shearing.

Large and strong guarding device ensures maximum safety.

Large-size and standard of square stop plate is convenient for cutting steel plates.
