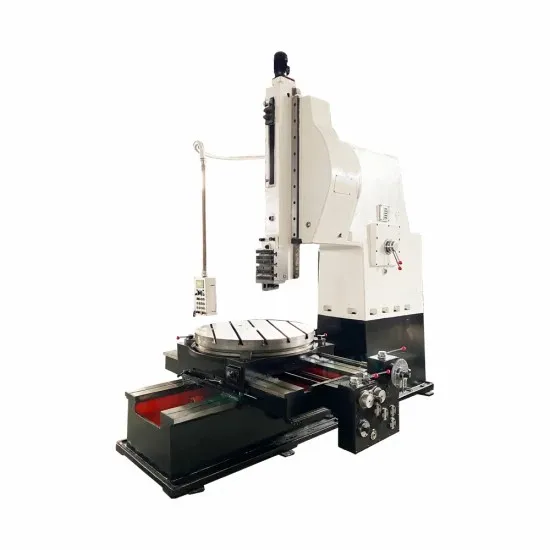

Max. Slotting Length：630mm
Max. Dimensions of Workpiece(L*H): 1000*700mm
|
Model |
SP5063 |
|
Maximum insertion length of the ram (interpolated inner hole 530 mm) |
630mm |
|
The number of reciprocations per minute of the ram |
8，12，20，30r.p.m |
|
Ram tilt angle |
±10 |
|
Tool chuck T-slot width |
22H11mm |
|
Distance from the tool support surface to the front wall of the bed |
1120mm |
|
Work surface to the lower end of the carriage |
800mm |
|
Worktable maximum longitudinal movement distance |
1000mm |
|
Worktable maximum lateral movement distance |
700mm |
|
Worktable vertical and horizontal feed |
0,10,0.20,0.32,0.54,0.80,1.30mm/per |
|
Worktable rotary feed |
3’6′,9’36”,16’12”,24′,39’deg/per |
|
Table diameter |
1120mm |
|
Workbench maximum load |
2000kg |
|
Workbench central T-slot width |
22H11mm |
|
Main drive motor power |
11kw |
|
Feed servo motor |
4.0kw |
|
Ram position adjustment motor |
0.55kw 1400r.p.m |
|
Maximum cutting force |
20000N |
|
Machine net weight (about) |
11T |
|
Machine tool outline size (length × width × height) |
3580×2390×3660mm |
|
Split package size |
3780/2560/1300、2350/1200/2500mm |
