SP5116 Vertical Lathe

Quick Details

Table dia.:1400mm

Max. turning dia.:1600mm

Max. workpiece height: 1000/1200/1400/1600mm

Max. workpiece weight:5t

Main motor power:30kw



Product Description

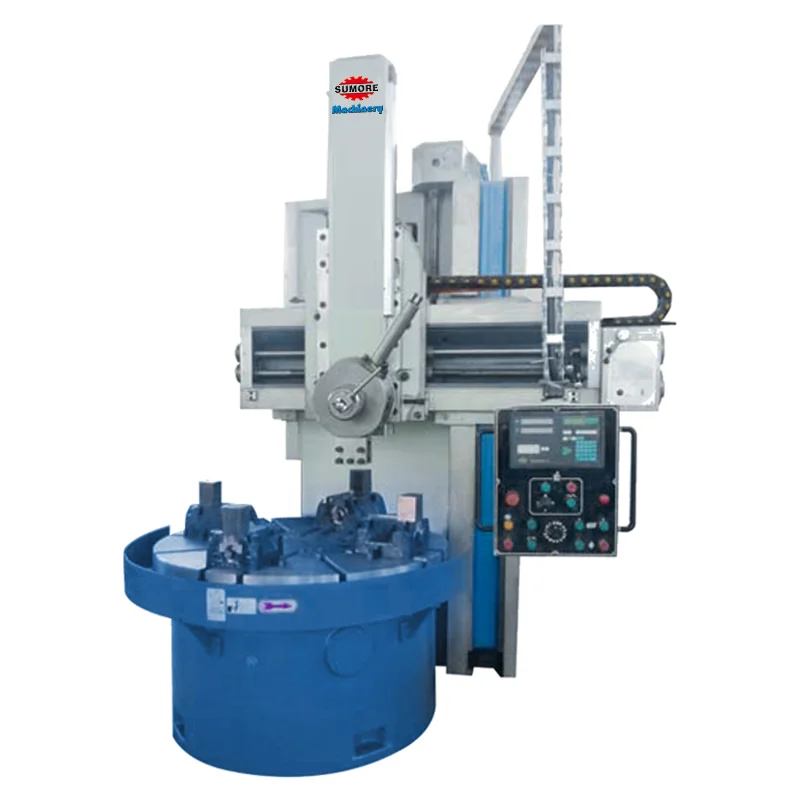

SP5116 Single Column Vertical Lathe New Conventional Vertical Turning Lathe Machine for Metal SUMORE


SP5116 single column vertical lathe, configuration of advanced and reliable mechanical and electrical components, structure performance is outstanding, strong rigidity, machine tool can meet the strong cutting, worktable can carry large tonnage load, good stability, high efficiency, safe and reliable. Vertical lathe belongs to large mechanical equipment, which is used to process large and heavy workpieces with large radial size, relatively small axial size and complex shape. Such as cylindrical surface, end face, conical surface, cylindrical hole, conical hole, etc   3. SP5116.jpg.png
Specification SP5116
Table dia. 1400mm
Max. turning dia. 1600mm
Max. workpiece height 1000/1200/1400/1600mm
Max. workpiece weight 5t
Table speed range 5-160r/min
Table rotation speed step 16
Vertical toolpost feed range 0.8-86 r/min
Vertical side toolpost feed step 12
Horizontal travel of vertical toolpost 915mm
Vertical travel of vertical toolpost 800/1000mm
Horizontal travel of side toolpost 650mm
Vertical travel of side toolpost 1000mm
Crossam ram travel 850/1050/1250/1450mm
Tool bar section size(Lx W) 30x40mm
Main motor power 30kw
Feeding motor power 1.3/1.8kw
N.W 12.7t
Overall size(LXWXH) 2662x2800x3550mm
