Drilling Capacity: 13mm(1/2”)
Motor Power: 250/350W
Height: 580/660mm
|
Model |

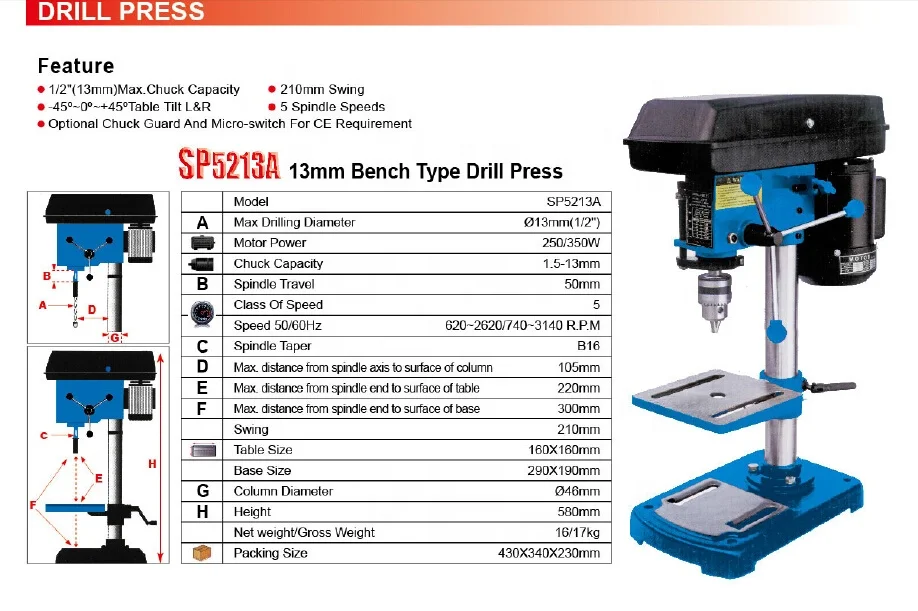

SP5213A |

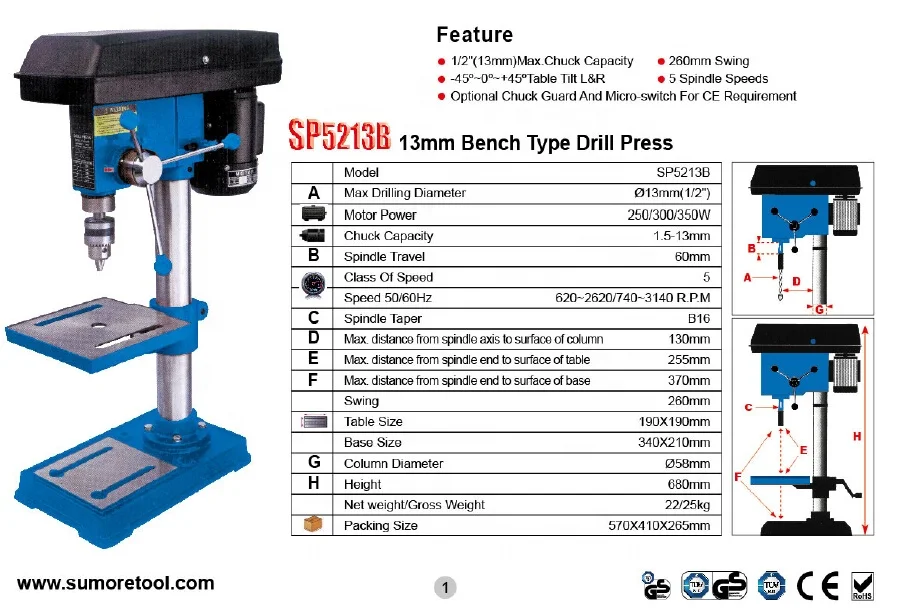

SP5213B |
|
Drilling Capacity |
13 mm (1/2 ”) |
13 mm (1/2 ”) |
|
Swing |
210 mm |
260 mm |
|
Spindle Taper |
B16 |
B16 |
|
Spindle Travel |
50 mm |
65 mm |
|
Spindle Speeds Steps |
5 Steps |
5 Steps |
|
Spindle Speed |
620 – 2,620 / 740 – 3,140 rpm |
620 – 2,620 / 740 – 3,140 rpm |
|
Maximumn Distance from Spindle Axis to Surface of Column |
105 mm |
105 mm |
|
Maximumn Distance fron Spindle End to Surface of Worktable |
220 mm |
220 mm |
|
Maximumn Distance from Spindle End to Surface of Base |
300 mm |
300 mm |
|
Column Diameter |
46 mm |
58 mm |
|
Height |
580 mm |
680 mm |
|
Worktable Size |
160 x 160 mm |
190 x 190 mm |
|
Worktable Rotate Angle (Left / Right) |
+/- 45° |
+/- 45° |
|
Base Size |
290 x 290 mm |
340 x 210 mm |
|
Motor Power |
250 / 350 w |
250 / 350 w |
|
Net / Gross Wieght |
19/20 kg |
27 / 29 kg |
|
Packing Size |
435 x 340 x 230 mm |
570 x 410 x 265 mm |
