Drilling Capacity: 16mm(5/8”)
Motor Power: 350/550W
Height:840/900mm
|

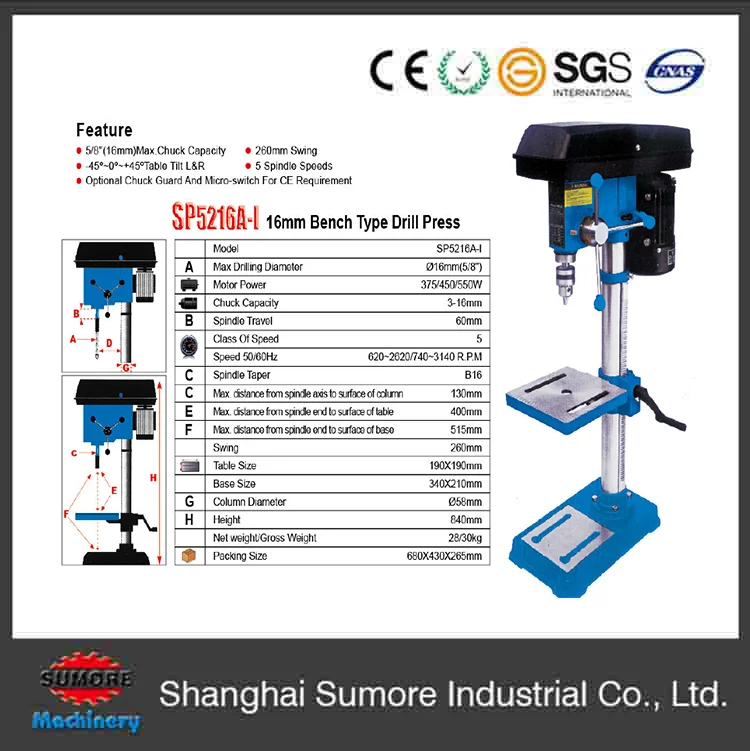

Model |
SP5216A-I |
SP5216A-II |
|
Drilling Capacity |
16 mm (5/8 ”) |
16 mm (5/8 ”) |
|
Swing |
260 mm |
260 mm |
|
Spindle Taper |
B16 |
B16 |
|
Spindle Travel |
60 mm |
60 mm |
|
Spindle Speeds Steps |
5 Steps |
5 Steps |
|
Spindle Speed |
620 – 2,620 / 740 – 3,140 rpm |
620 – 2,620 / 740 – 3,140 rpm |
|
Maximumn Distance from Spindle Axis to Surface of Column |
130 mm |
130 mm |
|
Maximumn Distance fron Spindle End to Surface of Worktable |
400 mm |
400 mm |
|
Maximumn Distance from Spindle End to Surface of Base |
515 mm |
515 mm |
|
Column Diameter |
58 mm |
58 mm |
|
Height |
840 mm |
900 mm |
|
Worktable Size |
190 x 190 mm |
260 x 260 mm |
|
Worktable Rotate Angle (Left / Right) |
+/- 45° |
+/- 45° |
|
Base Size |
340 x 210 mm |
420 x 250 mm |
|
Motor Power |
375 / 450 / 550 w |
350 / 550 w |
|
Net / Gross Wieght |
28 / 30 kg |
40/42kg |
|
Packing Size |
680 x 430 x 265 mm |
780 x 450 x 280 mm |
