Drilling capacity：32mm(1-1.4″)
Motor power：1100W/1500w
Spindle Travel：120mm
Table Size：420×280mm
|
Model |

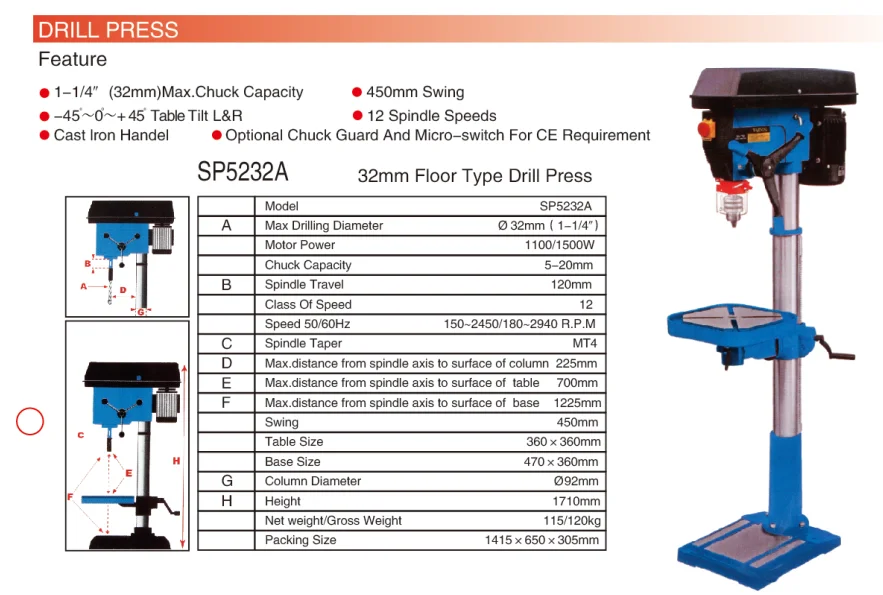

SP5232A |

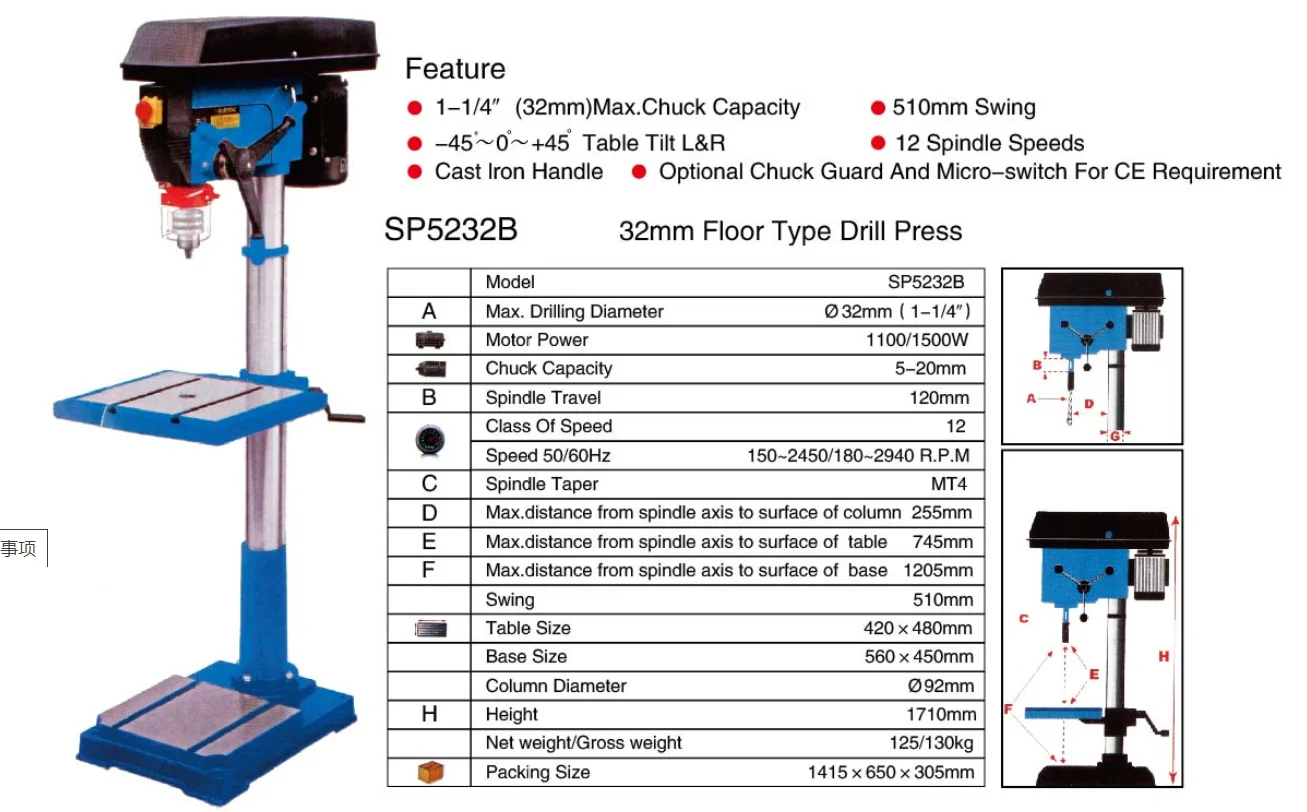

SP5232B |
|
Drilling Capacity |
32 mm |
32 mm (1-1/4″) |
|
Swing |
450 mm |
510 mm |
|
Spindle Taper |
MT4 |
MT4 |
|
Spindle Travel |
120 mm |
120 mm |
|
Spindle Speed Step |
12 Steps |
12 Steps |
|
Spindle Speed |
150 – 2,450 / 180 – 2,940 rpm |
150 – 2,450 / 180 – 2,940 rpm |
|
Maximumn Distance from Spindle Axis to Surface of Column |
225 mm |
225 mm |
|
Maximumn Distance from Spindle End to Surface of Worktable |
700 mm |
745 mm |
|
Maximumn Distance from Spindle End to Surface of Base |
1,225 mm |
1,205 mm |
|
Column Diameter |
92 mm |
92 mm |
|
Height |
1,710 mm |
1,710 mm |
|
Worktable Size |
360 x 360 mm |
420 x 480 mm |
|
Base Size |
470 x 360 mm |
560 x 450 mm |
|
Motor Power |
1,100 / 1,500 w |
1,100 / 1,500 w |
|
Net / Gross Wieght |
115 / 120 kg |
145 / 153 kg |
|
Packing Size |
1,415 x 650 x 305 mm |
1,420 x 650 x 310 mm |
