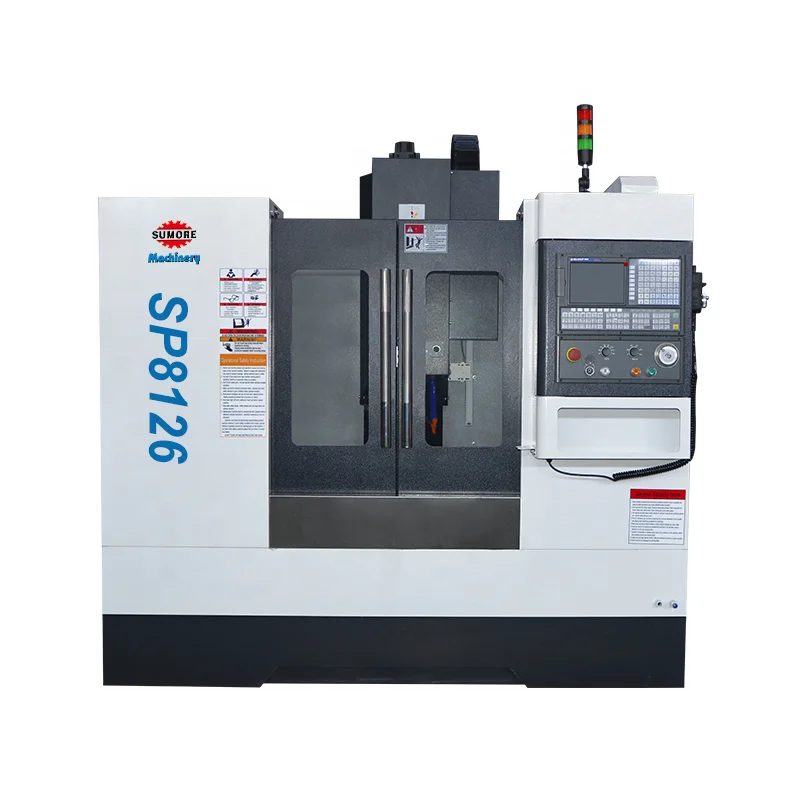

SP8126 CNC Machining Center

As one new product of independent design & development, SP8126 is a multi-purpose machine which could mill surface & drill holes.T his machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws. With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production. This machine could process holes below ∮16, milling plane below 18 and milling depth below 3mm.

Specification

Model	SP8126
Main Motor Power KW	3.7KW
Spindle Max. Rotating Speed	Servo Spindle 8000rpm
Z Motor Torque	7.7N.m
X Motor Torque	6N.m
Y Motor Torque	6N.m
Spindle Taper	BT40
Worktable Size	800X260mm
Travel（Longitudinal X/Horizontal Y/Vertical Z）	450X320X450mm
Distance of Spindle Axis to Guideway Plane	360mm
Distance of Spindle End to Worktable	90-510mm
The Vertical Permissible Error of Spindle Axis to Worktable Plane	≤0.02mm
Positioning Accuracy	0.02mm
Repeated Positioning Accuracy	0.01mm
Machine Overall Dimension (LWH) mm	260019502400
Machine Net Weight KG	2400
Magazine Capacity	10/12 (Bamboo Hat)
System Configuration	Siemens 808D
External Protection Level	Full Closed
