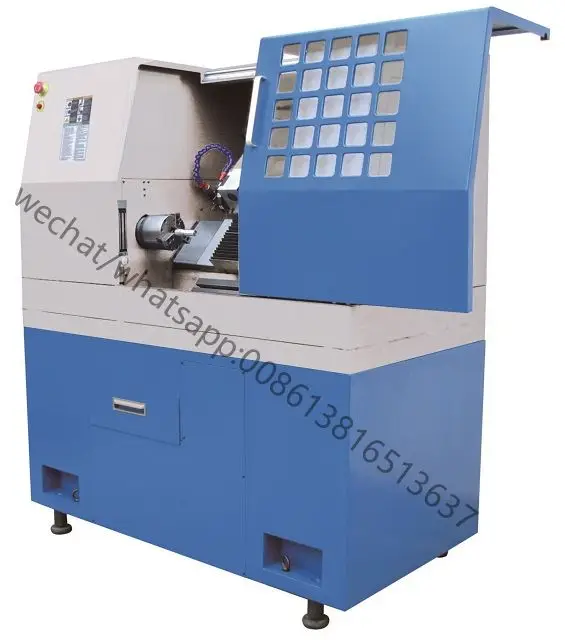

STC cnc lathe slant bed is a good cnc machine, with 300mm turning diameter over bed, 100mm travel across slide, and MT2 tailstock taper.

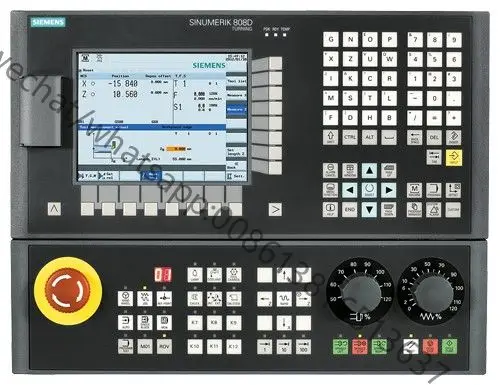

CNC SIEMENS Control System STC2118
Main specification of cnc lathe machine: Processing material: aluminum, copper, metal etc. Swing over bed: 300mm Spindle taper: MT3 Spindle bore: 20mm GSK or FANUC Siemens control system
STC2118S cnc mini turning lathe machine is new condition, and we won’t provide the used cnc turning machine. This small cnc lathe machine is specially designed for education, hobby and light industry market. It is made in China, but it has the similar quality as the made in Taiwan cnc turning machine. Features / advantage /specification of cnc lathe machine is as below:

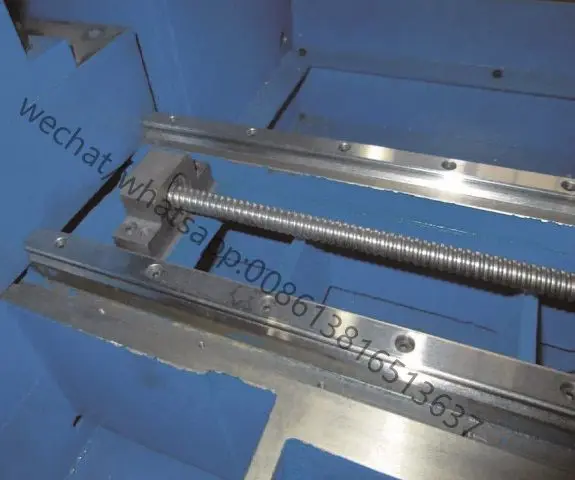

1. It is slant bed with easy chip removal, compact design, pretty appearance. 2. With 8pcs automatic tool post. 3. Designed with tailstock. 4. Motor is high quality brushless motor with 1500w. 5. USB interface. 6. Precision ball screws. 7. Emergency E-stop switch 9. NO.1 quality and affordable cost. 10. Customized color and voltage. 11. Excellent after sale service ONLY.
|
Model No. |
STC2118 |
||
|
WORKING AREA
|
Turning diameter over bed(max) |
300mm |
|
|
travel across slide |
100mm |
||
|
Center width |
400mm |
||
|
SPINDLE
|

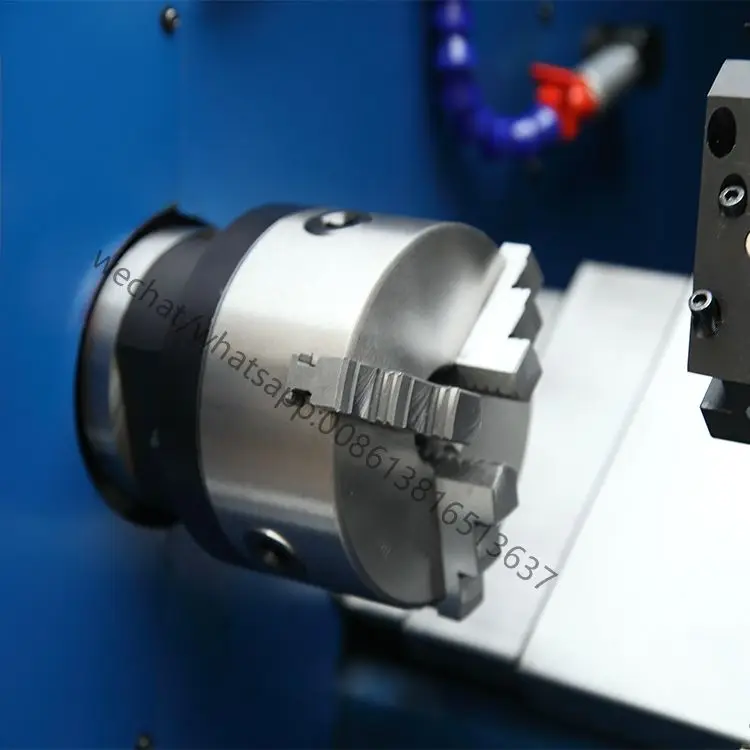

Chuck diameter |
125mm |
|
|
Spindle speed |
100-3000r/min |
||
|
Spindle through-hole |
20mm |
||
|
Spindle mount |
MT3 |
||
|
Spindle motor power |
1500W |
||
|
FEED
|
X travel |
120mm |
|
|
Z travel |
320mm |
||
|
The max moving speed |
3000mm/min |
||
|
Motor |
400w |
||
|
TOOL REST
|
Tool position |
8 |
|
|
Tool dimension 4 external |
12×12mm |
||
|
4 internal |
φ12mm |
||
|
TAILSTOCK |
Tailstock taper |
MT2 |
|
|
Tailstock sleeve diameter |
30mm |
||
|
Travel of tailstock |
50mm |
||
|
ACCURACY |
Positioning accuracy |
±0.010mm |
|
|
Repeatability accuracy |
±0.005mm |
||
|
OTHERS |
Power |
230/120V |
|
|
Weight（NW/GW） |
620kg/700kg |
||
|
Overall dimension |
1400×770×1600mm |
||
|
Packing size |
1650×1090×1920mm |
||
