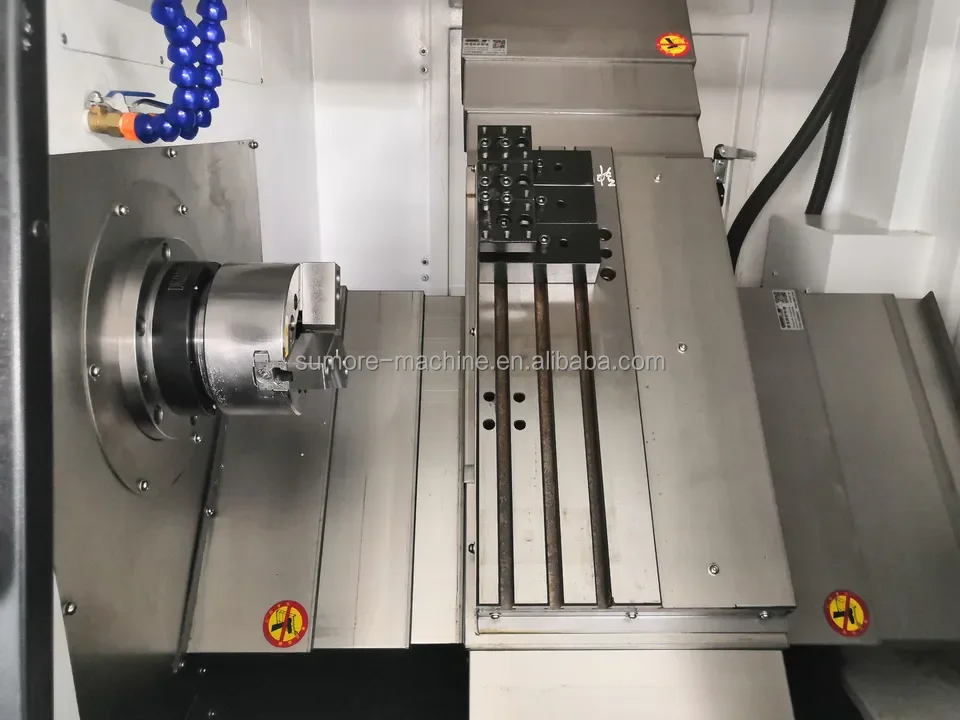

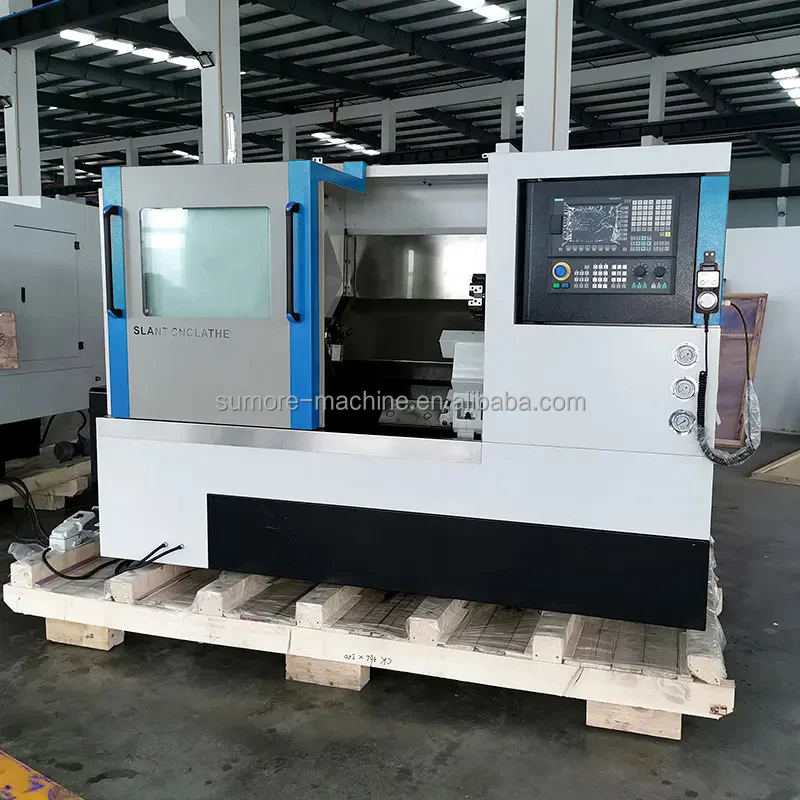

Cnc slant bed lathe STC32 is assembled by high strength cast iron with equally high rigidity, being installed with a big 56/66 mm spindle bore can also enormously improves its own rigidity and capability. Adapting high quality bearings, this large diameter spindle bore also increase its precision of processing. The leading orbit without clearance has increased the processing ability, Meanwhile, two directions of linearity rolling bed orbits still be lubricated nicely to reduce any abrasion during missions.

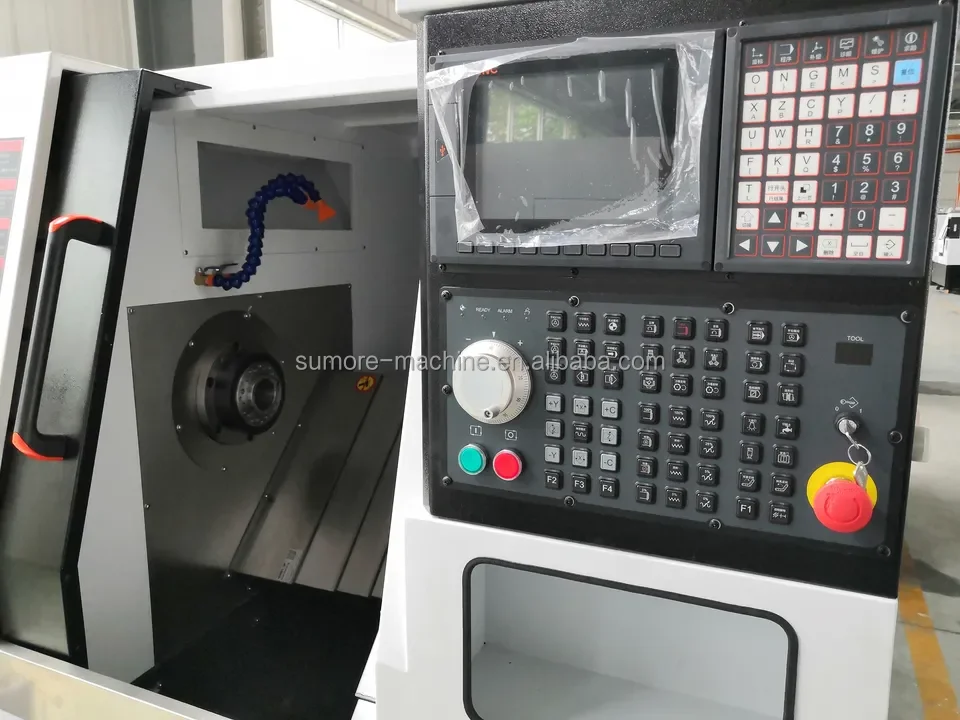

 High precision slant CNC lathe with Taiwan screw & linear guideway.  High precision cartridge type spindle ensure the rigidity and precision.  Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.  Siemens,Fanus, Syntec, Fagor controller as optional.  Monoblock cast iron of the whole machine ensure high rigidity.

Specification

	Model	STC32	STC32L
CAPACITY	Max. swing over bed	φ350mm	φ360mm
	Distance between centers	250mm	500mm
	Max swing over cross slide	φ185	φ320mm
RAIL	Rail width	284mm	284mm
SPINDLE	Chuck diameter	φ160mm	φ160mm
	Spindle bore	φ56mm	φ56mm
	Spindle nose	A2-5	A2-5
	Max spindle speed	4000rpm	4000rpm
FEEDS	Z axis travel	300mm	500mm
	X axis travel	350mm	210mm
	X/Z rapid speed	15/15 m/min	15/15 m/min
	X/Z guide way & screw	Taiwan	Taiwan
CARRIAGE	No. of stations	6 way Gang type	8 way Gang type
CARRIAGE	Tool size	20x20mm	20x20mm
MOTOR	Spindle Motor	4KW	5.5KW
MOTOR	coolant pump power	120W	120W
DIMENSION	Overall dimension	2600x1300x1700mm	2650X1550X1750mm
DIMENSION	Packing size	2800x1700x2050mm	2850X1750X2150mm
WEIGHT	N.W./G.W.	1500/1700kgs	2400/2700kgs
