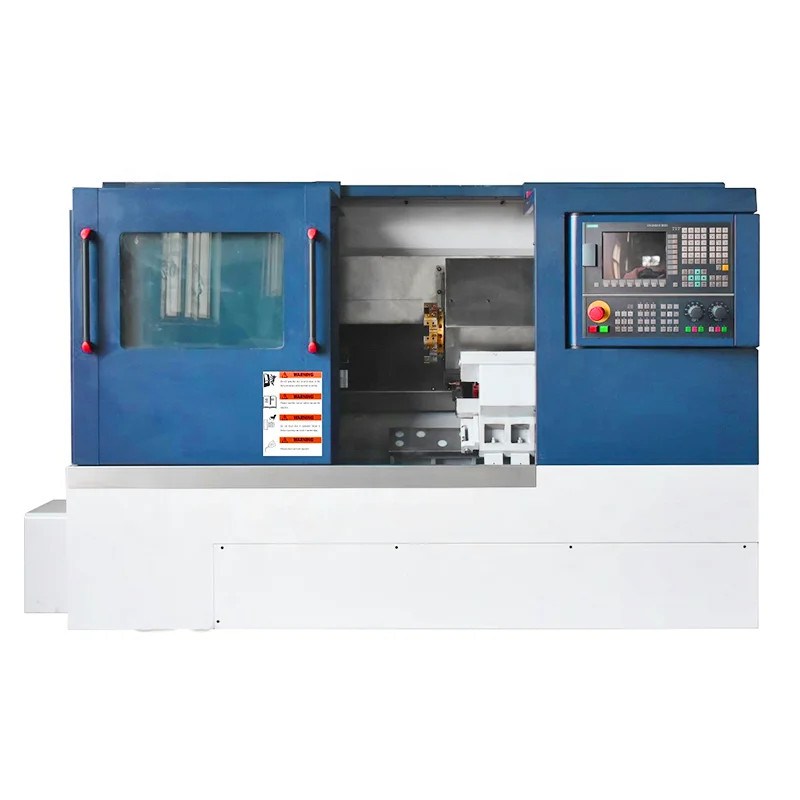

STC32L Slant Bed Cnc Lathe Machine is with 320mm swing over bed, 160mm swing over cross slide, A2-5 spindle nose, MT4 taper.
|
Model |
STC32L |
STC32 |
|
|
CAPACITY |
Max. swing over bed |
φ360mm |
φ350mm |
|
Distance between centers |
500mm |
250mm |
|
|
Max swing over cross slide |
φ320mm |
φ185 |
|
|
RAIL |
Rail width |
284mm |
284mm |
|
SPINDLE |
Chuck diameter |
φ160mm |
φ160mm |
|
Spindle bore |
φ56mm |
φ56mm |
|
|
Spindle nose |
A2-5 |
A2-5 |
|
|
Max spindle speed |
4000rpm |
4000rpm |
|
|
FEEDS |
Z axis travel |
500mm |
300mm |
|
X axis travel |
210mm |
350mm |
|
|
X/Z rapid speed |
15/15 m/min |
15/15 m/min |
|
|
X/Z guide way & screw |
Taiwan |
Taiwan |
|
|
CARRIAGE |
No. of stations |
8 |
6 way Gang type |
|
Tool size |
20x20mm |
20x20mm |
|
|
MOTOR |
Spindle Motor |
5.5KW |
4KW |
|
coolant pump power |
120W |
120W |
|
|
DIMENSION |
Overall dimension |
2650X1550X1750mm |
2600x1300x1700mm |
|
Packing size |
2850X1750X2150mm |
2800x1700x2050mm |
|
|
WEIGHT |
N.W./G.W. |
2400/2700kgs |
1500/1700kgs |
|
Tailstock sleeve travel |
80mm |
/ |
|
|
Tailstock sleeve diameter/taper |
60mm /MT4 |
/ |
|
|
Coolant power |
120W |
/ |
|
