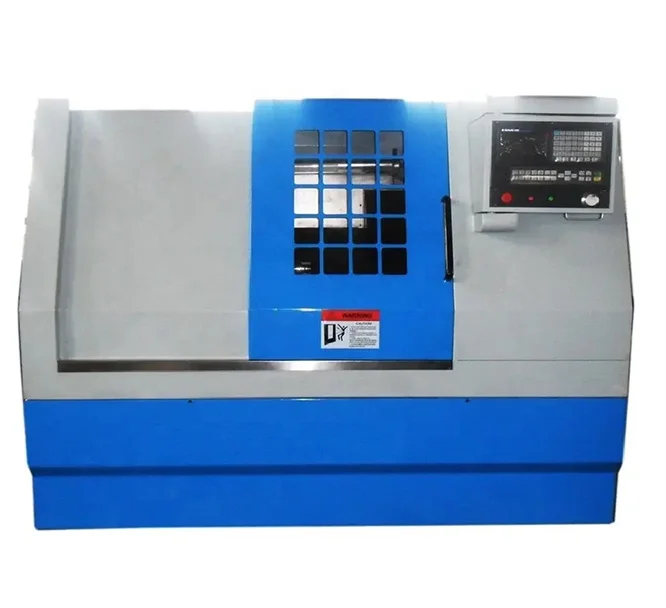

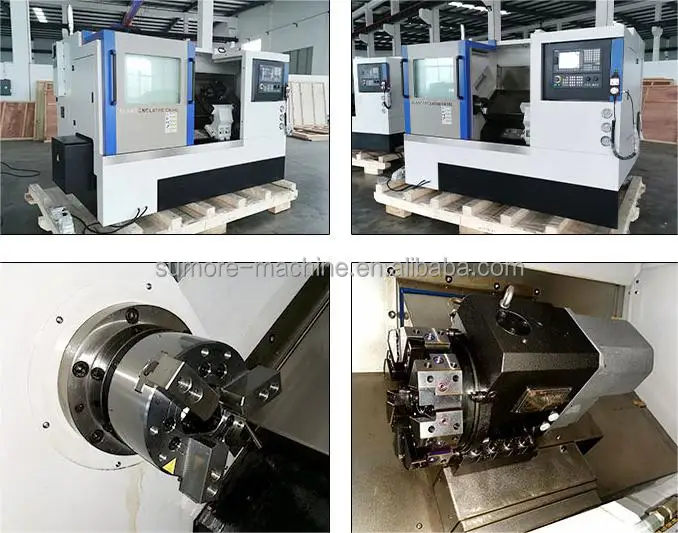

STC slant bed lathe cnc is with 350mm swing over bed, 130mm swing over cross slide, 160mm chuck diameter and 5.5kw motor.
|
Model |

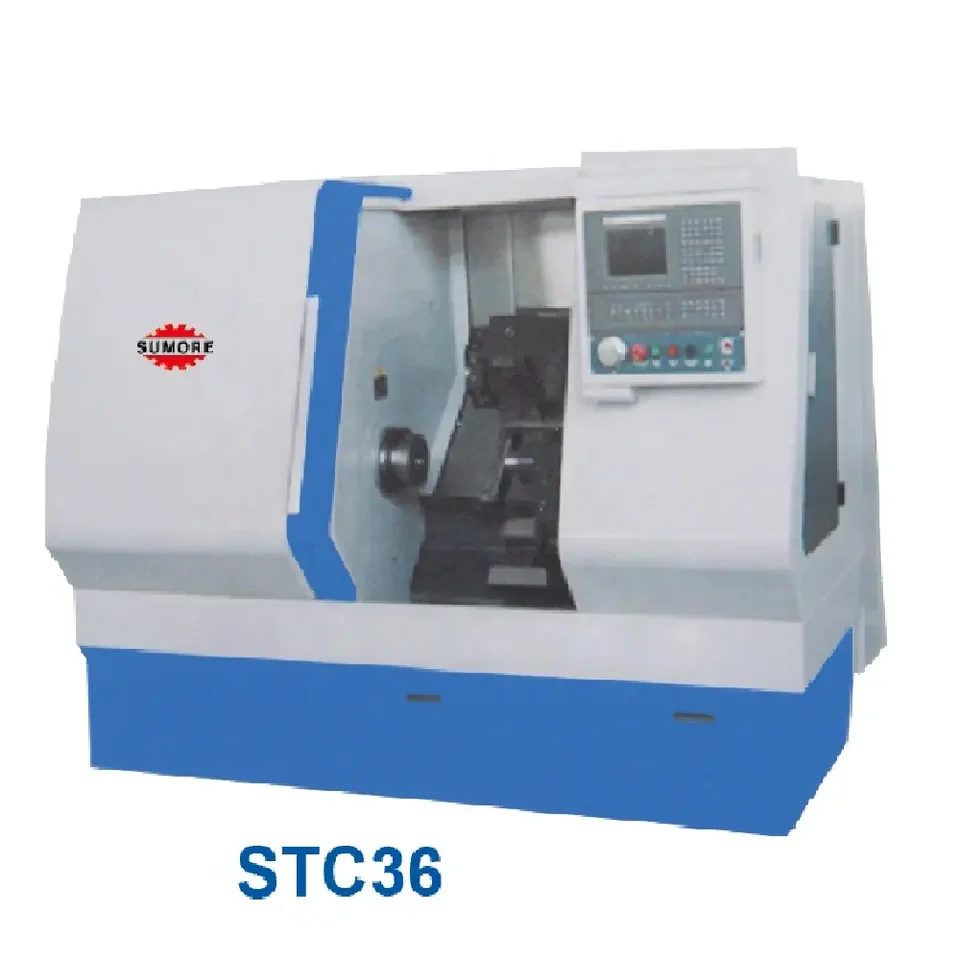

STC36 |
|
|
CAPACITY |
Max. swing over bed |
φ350mm |
|
Distance between centers |
360mm |
|
|
Max swing over cross slide |
φ130 |
|
|
RAIL |
Rail width |
284mm |
|
SPINDLE
|
Chuck diameter |
φ160mm |
|
Spindle bore |
φ56mm |
|
|
Spindle nose |
A2-5 |
|
|
Max spindle speed |
4000rpm |
|
|
FEEDS |
Z axis travel |
400mm |
|
X axis travel |
470mm |
|
|
X/Z rapid speed |
15/15 m/min |
|
|
X/Z guide way & screw |
Taiwan |
|
|
CARRIAGE |
No. of stations |
6 way Gang type |
|
Tool size |
20x20mm |
|
|
MOTOR |
Spindle Motor |
5.5KW |
|
coolant pump power |
120W |
|
|
DIMENSION |
Overall dimension |
2650x1600x1750mm |
|
Packing size |
2860x1800x2050mm |
|
|
WEIGHT |
N.W./G.W. |
2000/2200kgs |
