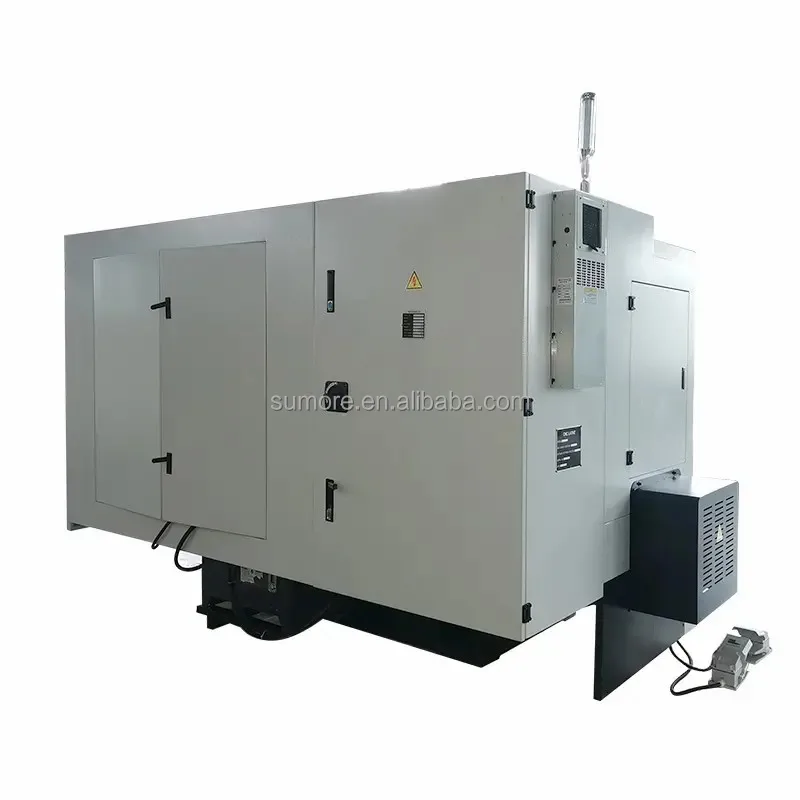

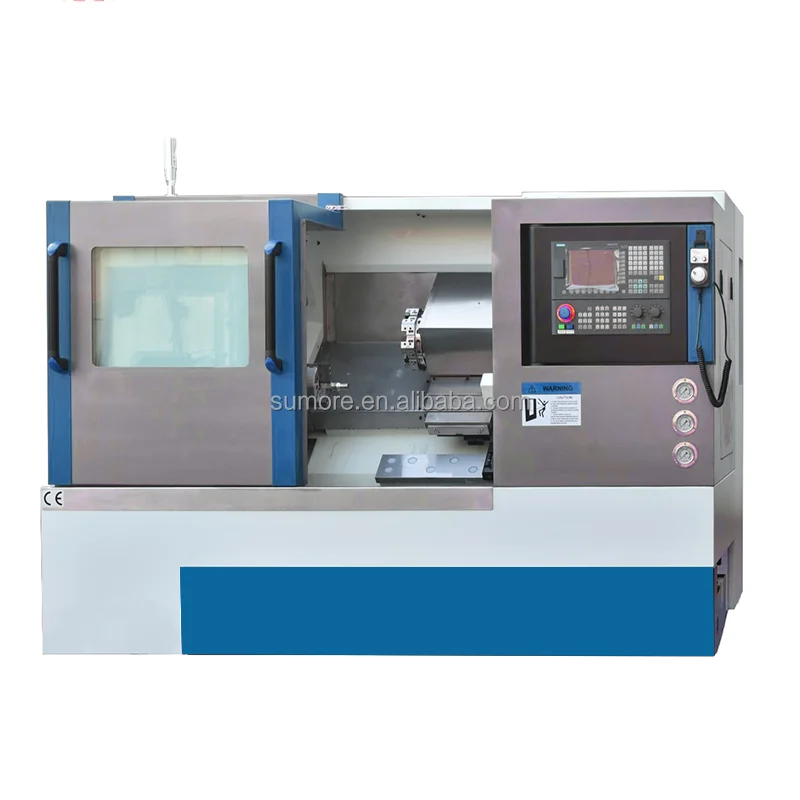

automatic cnc slant bed lathe STC36L

Sumore Latest CNC Turning Center STC36L is assembled by high strength cast iron with equally high rigidity, being installed with a big 56/66 mm spindle bore can also enormously improves its own rigidity and capability. Adapting high quality bearings, this large diameter spindle bore also increase its precision of processing. The leading orbit without clearance has increased the processing ability, Meanwhile, two directions of linearity rolling bed orbits still be lubricated nicely to reduce any abrasion during missions.

Specification

ITEM	STC32L	STC36L	STC40L
Max swing over bed	320mm	360mm	400mm
Max swing over cross slide	160mm	200mm	260mm
Max work piece cutting length	500mm	500/750mm	500/750MMmm
Max spindle speed	4000rpm	4000rpm	4000rpm
Spindle nose	A2-5	A2-5/A2-6	A2-6
Spindle bore	56mm	56/66mm	62mm
Chuck size	160mm	160/200mm	200mm
X axis travel	210mm	210mm	240mm
Z axis travel	500mm	500 mm	500/750mm
X/Z axis rapid speed	15/15m/min	15/15m/min	15/15m/min

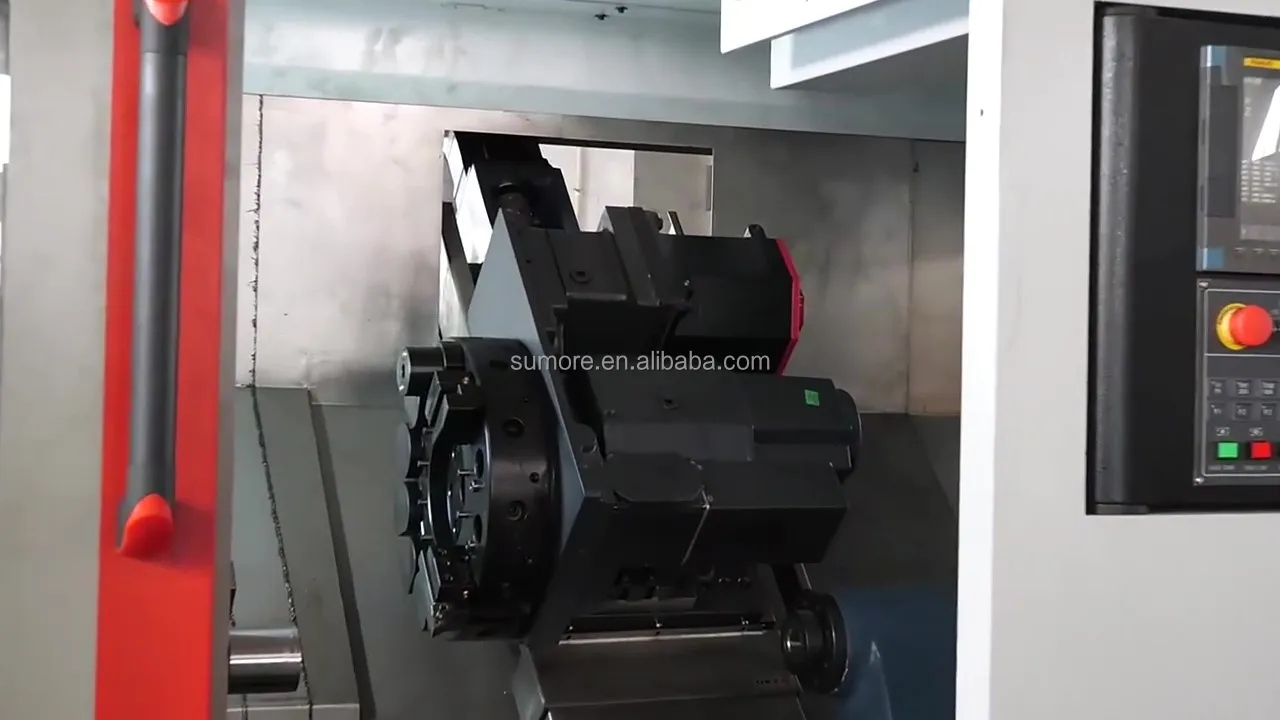

Hydraulic turret	8pcs	8pcs	8pcs (opt.12pcs)
Max tool size	20x20mm	20x20mm	25x25mm
Tailstock sleeve travel	80mm	80mm	80mm
Tailstock sleeve diameter/taper	60mm /MT4	60mm /MT4	75mm /MT5
Spindle Motor power	5.5KW	5.5KW	7.5KW
Coolant power	120W	120W	120W
Overall size	2650X1550X1750mm	2650 X1550X1750mm	2800/3150X1800X1800mm
Packing size	2850X1750X2150mm	2850X1750X2150mm	3000/3450X2000X2000mm
N.W/G.W	2400kgs/2700kgs	2600/2900kgs	2800/3000kgs or 3100/3300kgs

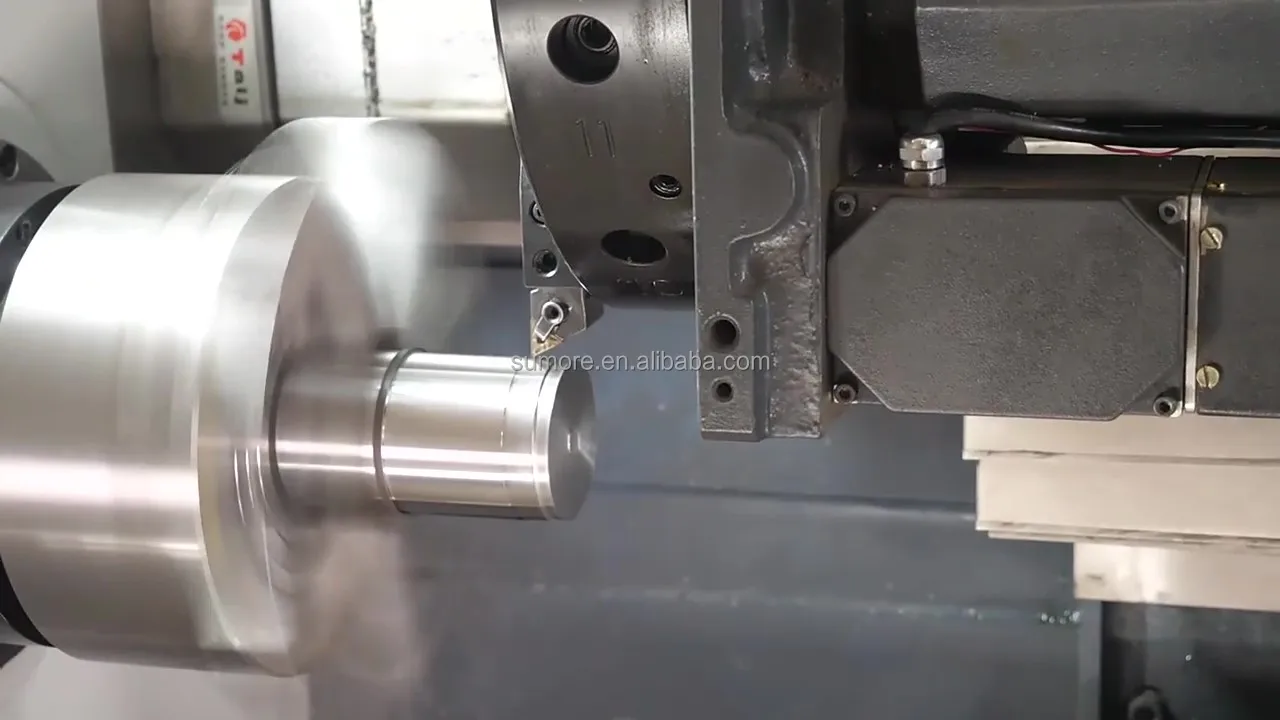

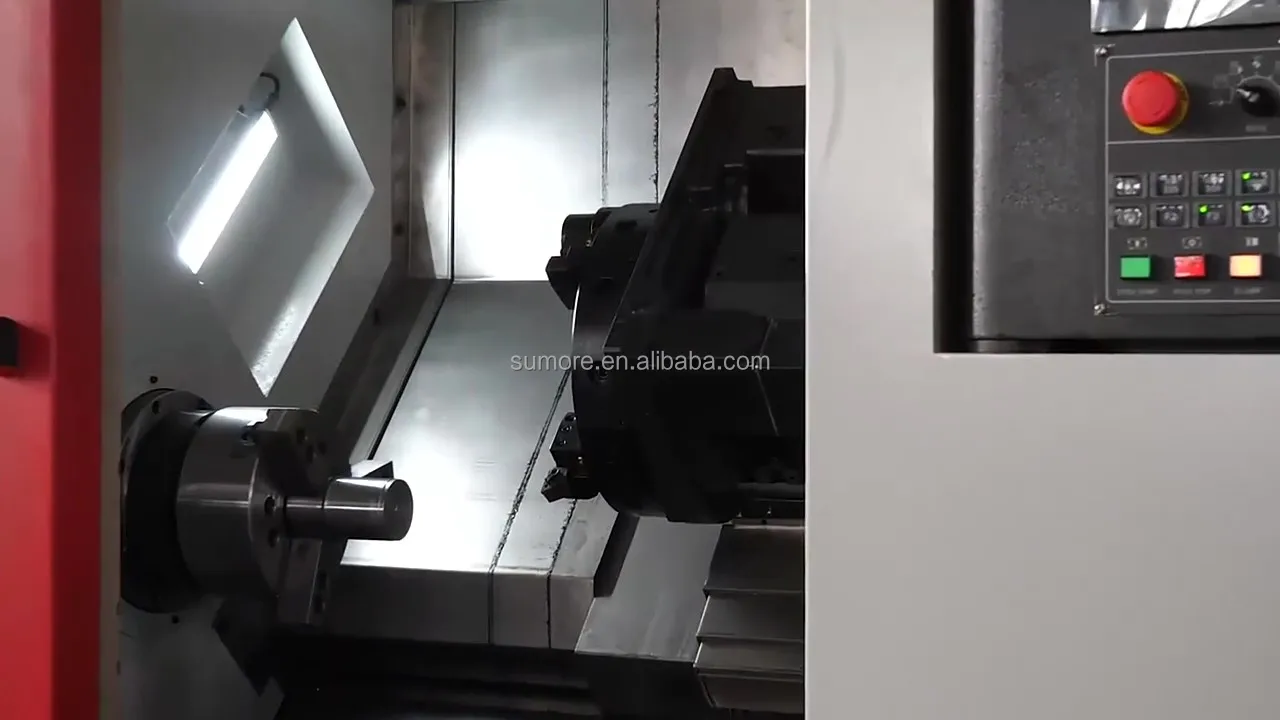

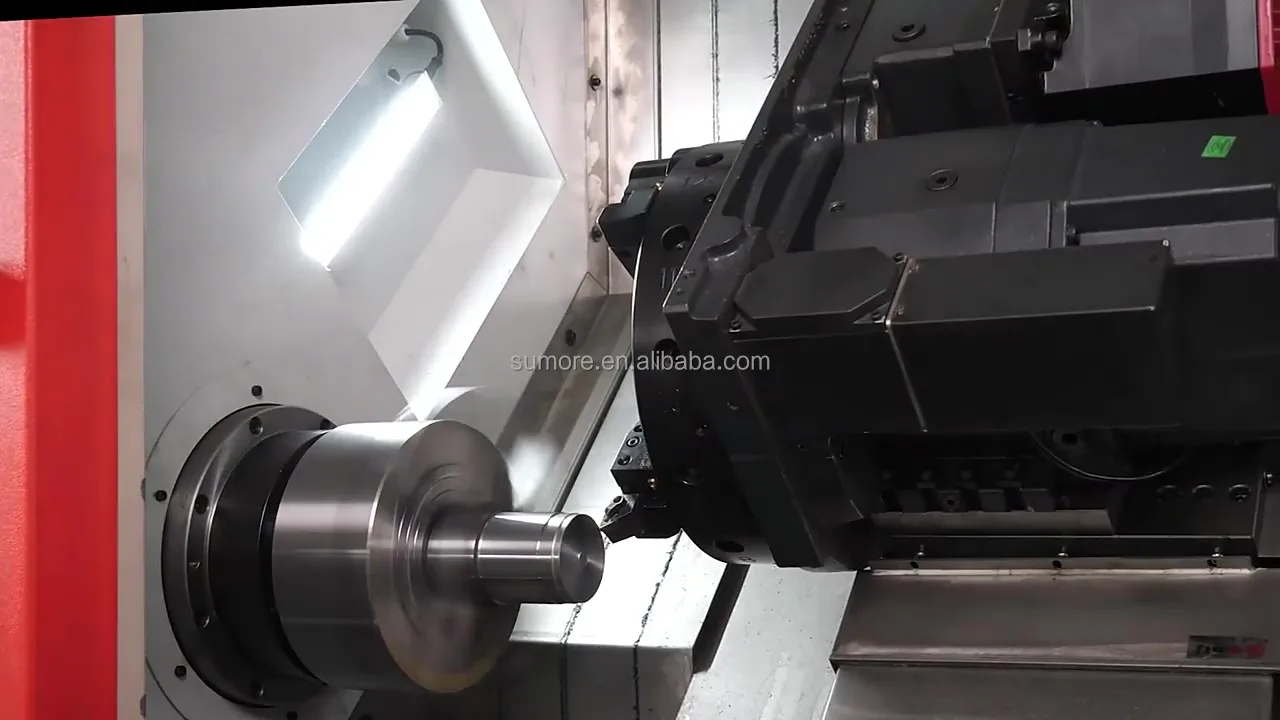

Product detail pictures

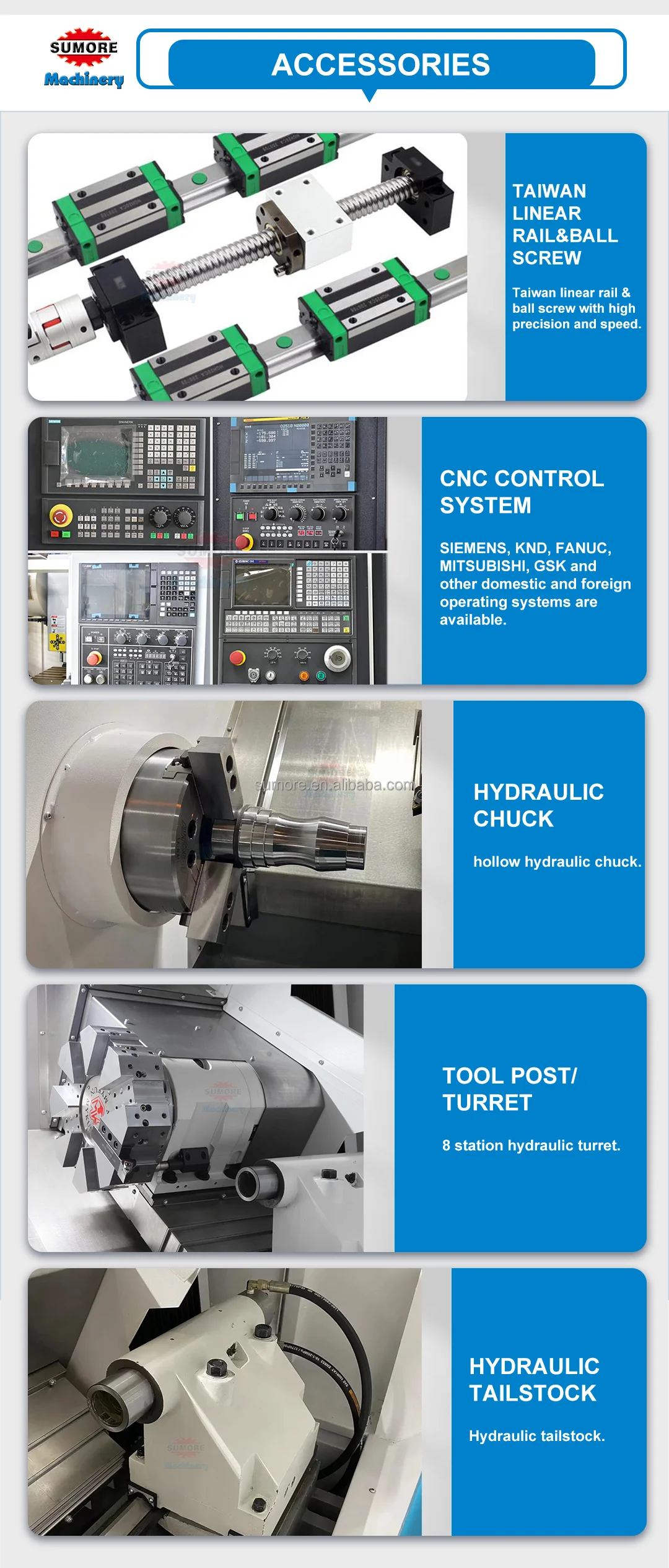

 High precision slant CNC lathe with Taiwan screw & linear guideway.  High precision cartridge type spindle ensure the rigidity and precision.  Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.  Siemens,Fanus, Syntec, Fagor controller as optional.  Monoblock cast iron of the whole machine ensure high rigidity.
